Gigabit
LSZH

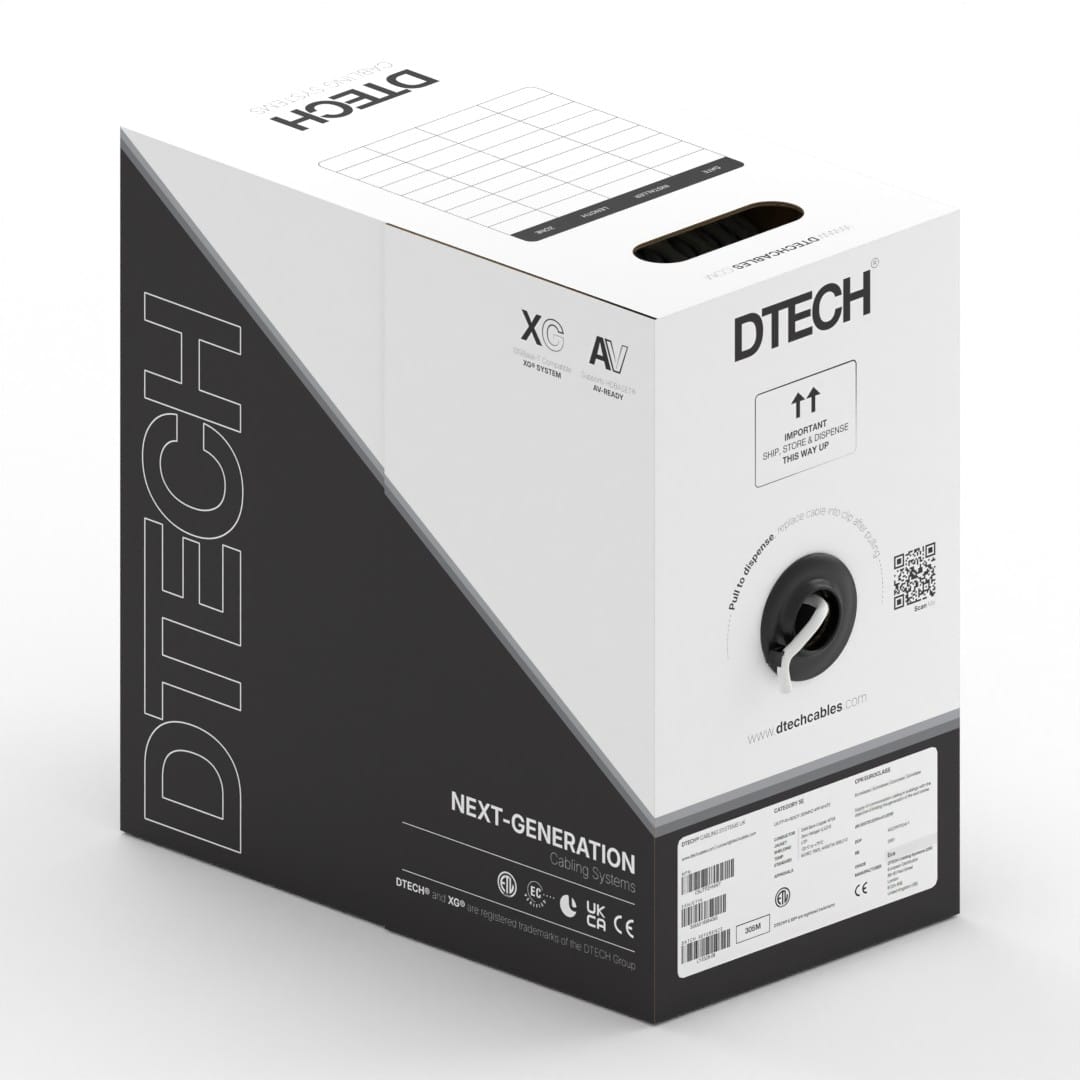

DTECH® Cat 5e UTP 350MHz LSZH White 305M

DTECH® Cat 5e 350MHz U/UTP cable engineered for clean signal integrity. Supports 2.5GBase-T up to 90m and PoE, with a low-smoke LSZH jacket that suits offices, public spaces and commercial buildings.

MPN

C5-UTP-ZH-NWT

Category

5e

Shielding

U/UTP

Jacket Material

LSZH (Low Smoke Zero Halogen)

Euroclass

Dca, s2, d2, a2

Environment

Internal

Use Cases

Office Networks, Structured Cabling

KEY FEATURES

High Performance Connectivity

2.5GBASE-TWi-Fi 6 Ready2.5GBASE-TWi-Fi 6 ReadyPoE+Power & DataPoE+Power & Data350MHzBandwidth350MHzBandwidthLSZHSafer in FireLSZHSafer in FireInternalIndoor RatedInternalIndoor Rated
Enquire
Contact Sales
Available for direct enquiry. Speak to our team for current supply, project pricing or a scheduled delivery.
Enquire Add to Project Enquiry
Contact Sales
Enquire
Contact Sales
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS
  • DTECH® Cat 5e 350MHz U/UTP data cable designed for optimal signal integrity.
  • Supports full 2.5GBase-T Ethernet speeds up to 90 metres, ensuring fast and reliable data transmission.
  • Suitable for PoE, allowing for power delivery alongside data for efficient device operation.
  • Low Smoke Zero Halogen (LSZH) construction minimizes harmful emissions, making it safer for indoor environments.
  • Ideal for both commercial and residential installations, providing versatility for various networking needs.
3RD PARTY COMPLIANCE
EC Verified

3P Approved.

ISO/IEC Class D

Rated Product.

DTECH® Warranty

30 YR System Warranty.

CPR Eca

Euroclass 50575.

Category5eShielding TypeU/UTP
Jacket MaterialLSZHCore InsulationHDPE
Conductor MaterialPure Bare Solid CopperWire Gauge24AWG
Number of Conductors4 PairsCable Outer Diameter (mm)5.1 ± 0.5
Rated Bandwidth (MHz)350NVP (%)68
Data Transmission2.5GBase-T up to 90MPoE GradePoE+
EnvironmentInternalOperating Temperature (°C)-20 to 75
Installation Temp (°C)-20 to 60Max Pull Load (N)100
Min Bend Radius Installation8 × ODMin Bend Radius Installed4 × OD
StandardISO/IEC 11801, ANSI/TIA-568.2-DEuroclassEca
RoHS ConformityYesCE MarkingYes
Cable Length1000ft (305m)Packaging MethodPull Box
Technical Datasheet
Certificate of Conformity
Product Installation Guides
HDBASET SVG LOGO
Alliance Member

As a member of the HDBaseT® Alliance, DTECH® products comfortably support the latest HDBaseT standards — engineered for next-gen homes and buildings.

System Architecture

Built for residential, commercial and industrial environments, DTECH XG® system architecture guarantees full 10GbE performance from end to end.
