High Performance Connectivity
Conformity Europe.
Compliant Product.
Rated Product.
30 YR System Warranty.
Euroclass 50575.

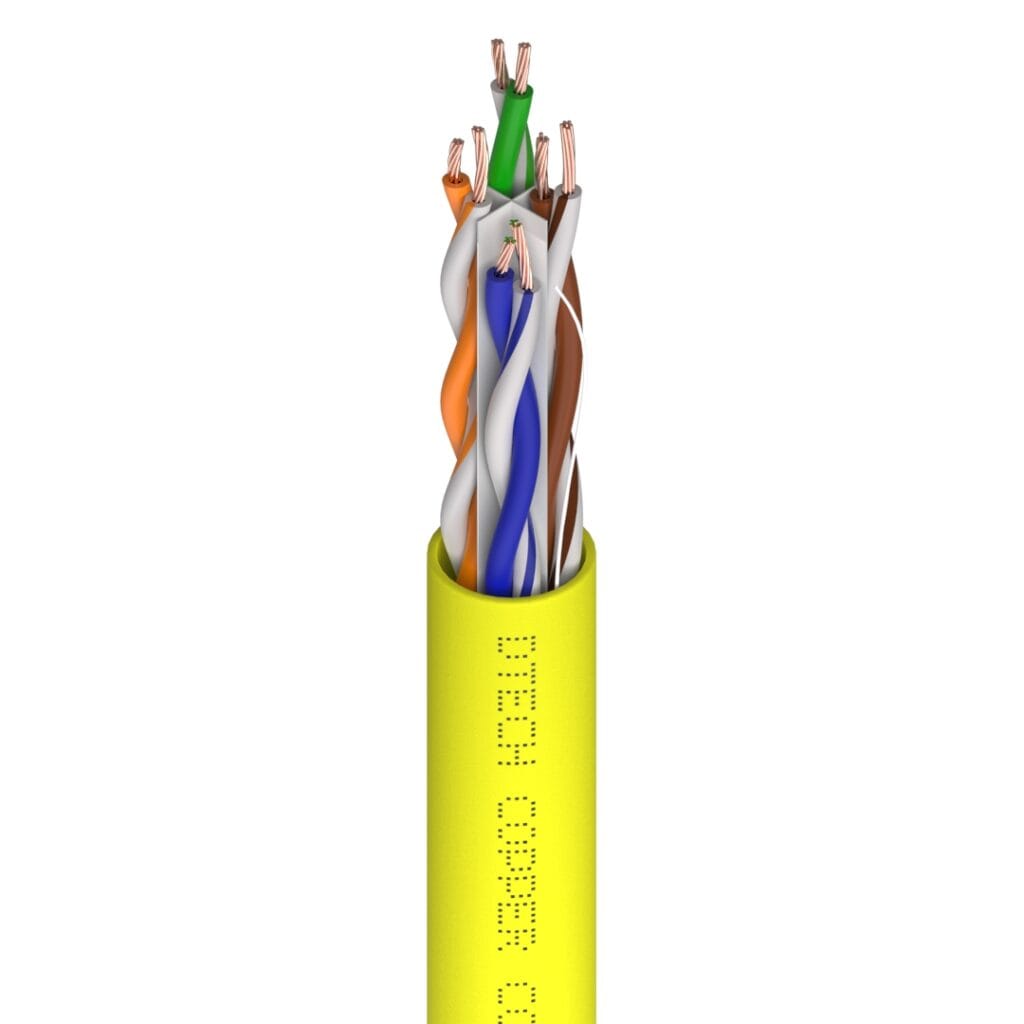

| Category | 6 | Shielding Type | U/UTP |
| Jacket Material | LSZH | Core Insulation | HDPE |
| Conductor Material | Pure Bare Stranded Copper | Wire Gauge | 26AWG |
| Number of Conductors | 4 Pairs | Cable Outer Diameter (mm) | 5.6 ± 0.2 |
| Rated Bandwidth (MHz) | 550 | NVP (%) | 68 |
| Data Transmission | 10GBase-T up to 55M | PoE Grade | PoE++ ≤55M |
| Environment | Internal | Operating Temperature (°C) | -20 to 75 |
| Installation Temp (°C) | -20 to 60 | Max Pull Load (N) | 80 |
| Min Bend Radius Installation | 8 × OD | Min Bend Radius Installed | 4 × OD |
| Conductor Construction | 7/0.16mm | Standard | ISO/IEC 11801, ANSI/TIA-568.2-D |
| RoHS Conformity | Yes | CE Marking | Yes |
| Cable Length | Custom | Packaging Method | Reel |
As a member of the HDBaseT® Alliance, DTECH® products comfortably support the latest HDBaseT standards — engineered for next-gen homes and buildings.
Built for residential, commercial and industrial environments, DTECH XG® system architecture guarantees full 10GbE performance from end to end.
