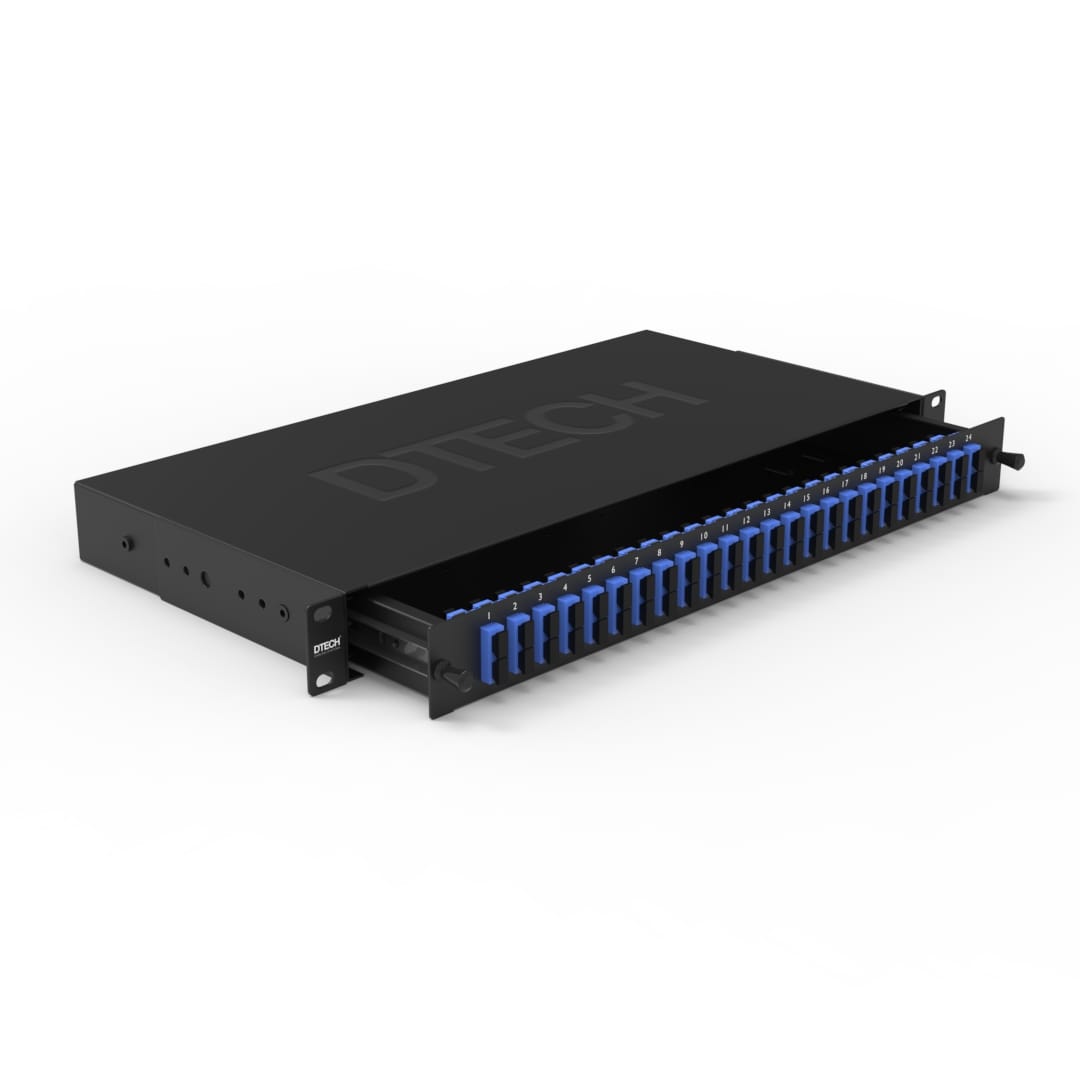

DTECH® 4-24 SC Duplex Loaded Fibre Optic Patch Panel 1U (48/96 Fibre)
DTECH® 4-24 SC Duplex Loaded Fibre Optic Patch Panel 1U (48/96 Fibre) - Image 2
DTECH® 4-24 SC Duplex Loaded Fibre Optic Patch Panel 1U (48/96 Fibre) - Image 3

DTECH® 4-24 SC Duplex Loaded Fibre Optic Patch Panel 1U (48/96 Fibre)

MPN PP-FIB-SC-DX Category Features , Brand:
Grand total

Fast UK Delivery

Free delivery on orders available

Secure Checkout

SSL protected gateway

>30YR Warranty

Performance guaranteed

  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® 19″ 1U rack mounted fibre optic patch panel designed for organised fibre management in data centres and network installations.
  • Removable sliding tray on rails provides easy access for installation, maintenance and cable management.
  • Removable inner bracket allows convenient adaptor installation and configuration.
  • Multiple bulk and blown fibre entry points enable efficient cable routing for a variety of installation requirements.
  • Supplied with cable glands, cable ties, and cable management accessories.
  • Supports up to 48 SC connections
Technical Product Information
Connector
Connector TypeSCFibre TypeMM / OS2
Connector SizeDuplexPolish TypeUPC / APC
Insertion Loss≤0.2dBMating Durability500 Times
Mounting TypeFlangledTool-FreeYes
Sleeve MaterialCeramicColourBeige / Green / Blue
Operating Temperature-40°C to 85°C
Panel
Rack Size1UHeight43.5mm
Width483mmDepth219.5mm
Fibre Capacity48 FibresAdaptor Capacity24 x SC Simplex / LC Duplex
Adaptor Inserts24Tray StyleRemovable Sliding Tray (on rails)
Inner Mounting FrameYes (Removable)Port IdentificationYes
Blown Fibre Entry Points8MaterialCold Rolled Steel
Material Thickness2mmMaterial CoatingPowder Coating
Cable Entry 20mm2Cable Entry 25mm2
Operating Temperature-40 to +80°CProtection GradeIP20
Cable Gland PG13.51 IncludedCable Gland PG191 Included
Nylon Cable Ties8 IncludedAdjustable Cable Ties4 Included
Splice Holders (24 Position)1 IncludedMounting Twist Ties4 Included
Cage Nuts & Screws1pk IncludedRoHS ConformityYes
CE MarkingYes
