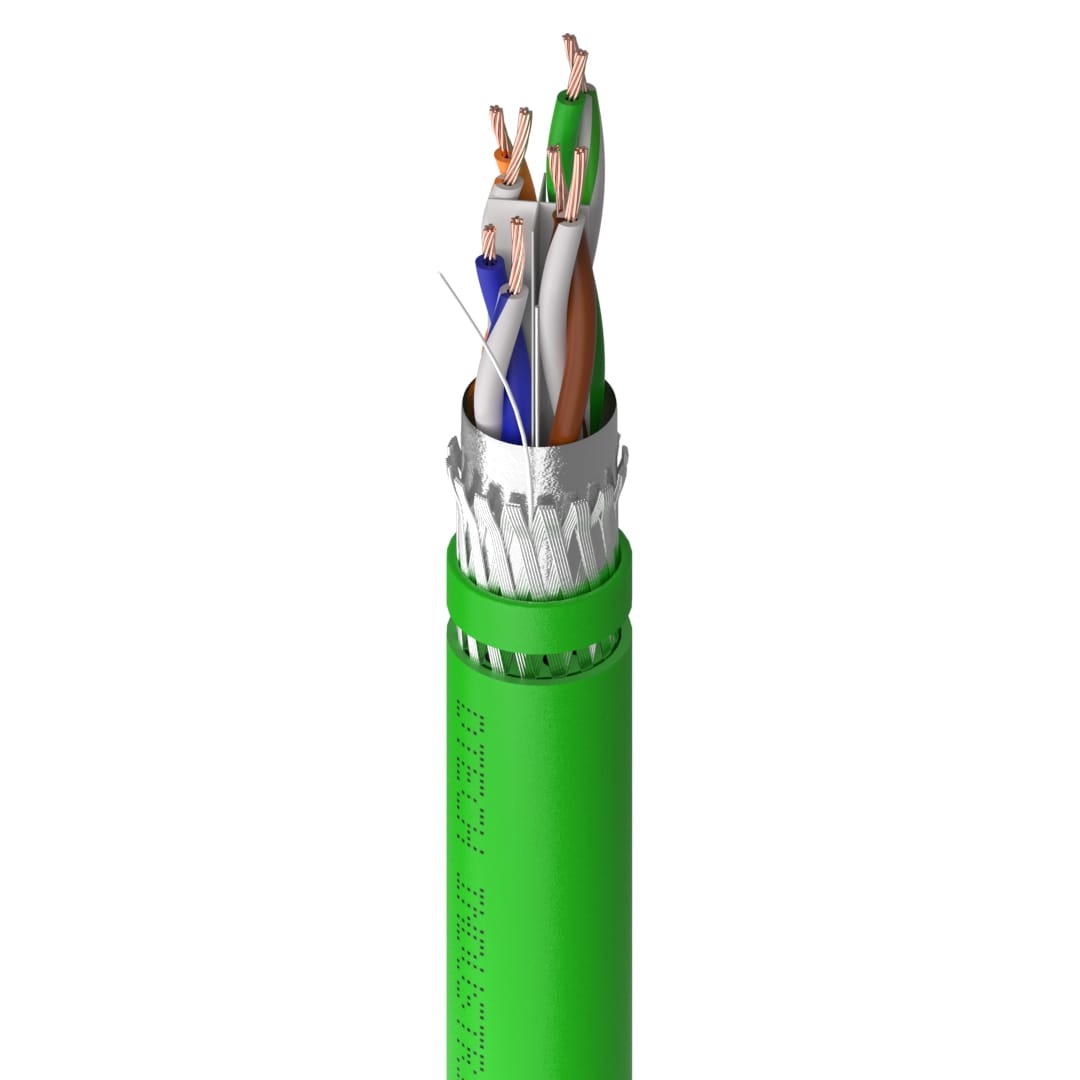

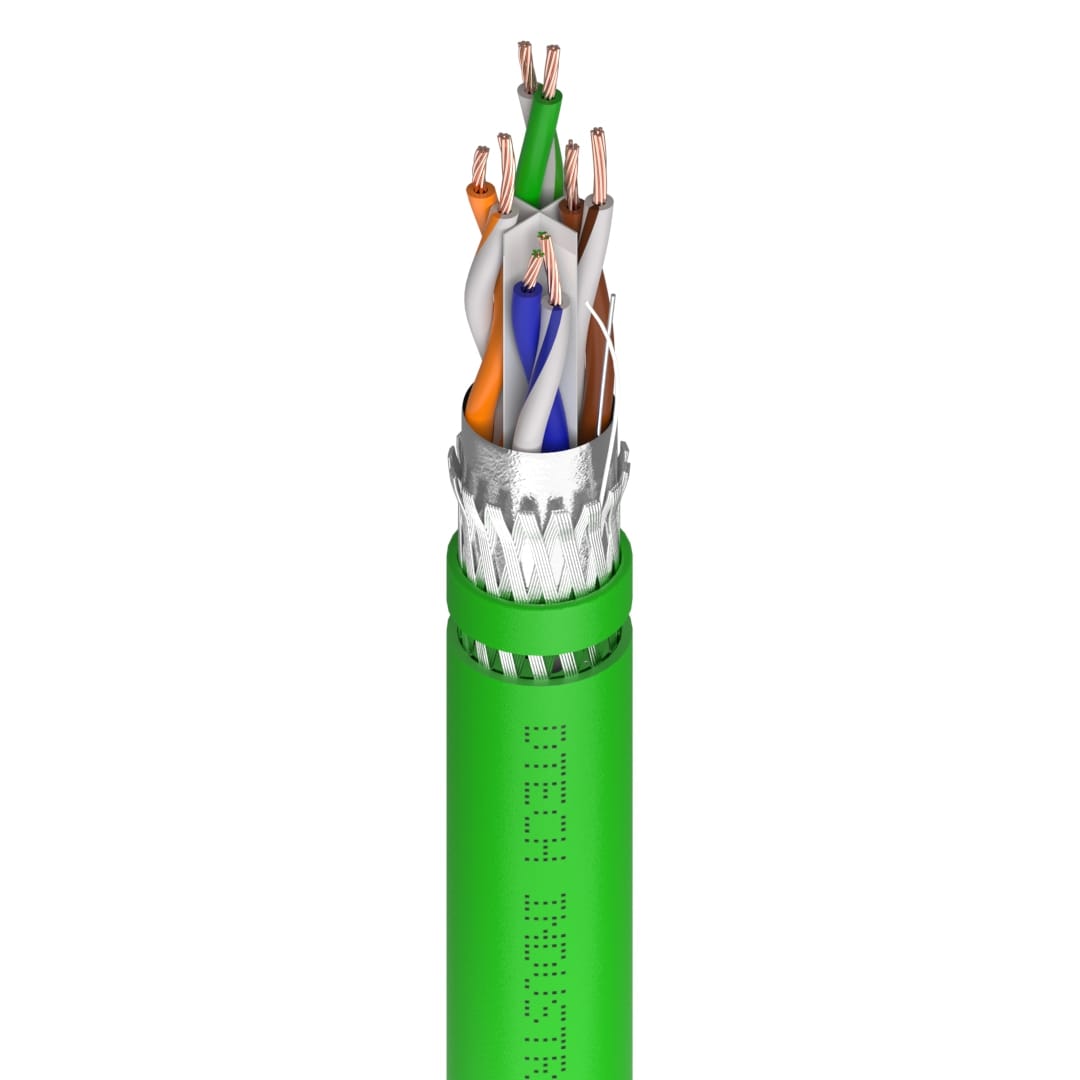

DTECH® Cat 5e SF/UTP OFC Industrial Grade Soft PVC Green
DTECH® Cat 5e SF/UTP OFC Industrial Grade Soft PVC Green - Image 2

DTECH® Cat 5e SF/UTP OFC Industrial Grade Soft PVC Green

MPN IND-C5-PVC-SF-GN Categories , Features , Brand:
Request Quote
  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® Cat 5e SF/UTP industrial bulk cable designed for reliable Fast Ethernet in demanding factory floor and machine building installations.
  • SF/UTP construction combines an overall braided screen and foil shield for effective EMI protection in electrically noisy industrial environments.
  • Highly flexible stranded OFC copper construction ensures consistent signal integrity under continuous mechanical stress.
  • Oil, notch, and abrasion resistant flexible PVC outer jacket provides solid durability and flexibility for use in dry, damp and harsh environments.
  • Supports data transmission speeds of up to 1 Gbps at 100MHz in compliance with ISO/IEC 11801 Class D.
  • Well suited for cable chain and semi moving applications, EtherCAT, EtherNet/IP, PROFINET and general-purpose industrial Ethernet deployments.
Technical Product Information
Number of Pairs4 PairConductor MaterialBare Stranded Copper
Conductor Construction7/0.16 ± 0.008Insulation MaterialHDPE
Insulation Thickness (mm)0.21Insulation OD (mm)0.90 ± 0.05
Binder MaterialMylar TapeShieldingSF/UTP
Shielding MaterialAl/Mylar TapeShielding Overlap25%
Braid MaterialAluminum Magnesium Alloy WireBraid Construction16/8/0.12 ± 0.008
Braid Coverage80%Jacket MaterialOil, Notch, Abrasive Resistant PVC
Jacket Thickness (mm)0.65Jacket OD (mm)6.3 ± 0.20
Insulation Spark Test (20°C)2.50kVConductor Resistance Max (20°C)140 ohm/km
Insulation Resistance100 MΩ·kmData Transmission1000Base-TX @100MHz
StandardsISO 11801 Class D / ANSI/TIA-568.DBending Radius4 / 8 x Diameter (Fixed / Flexing)
Operating Temperature-20°C to +90°CRoHS ConformityYes
CE MarkingYes
