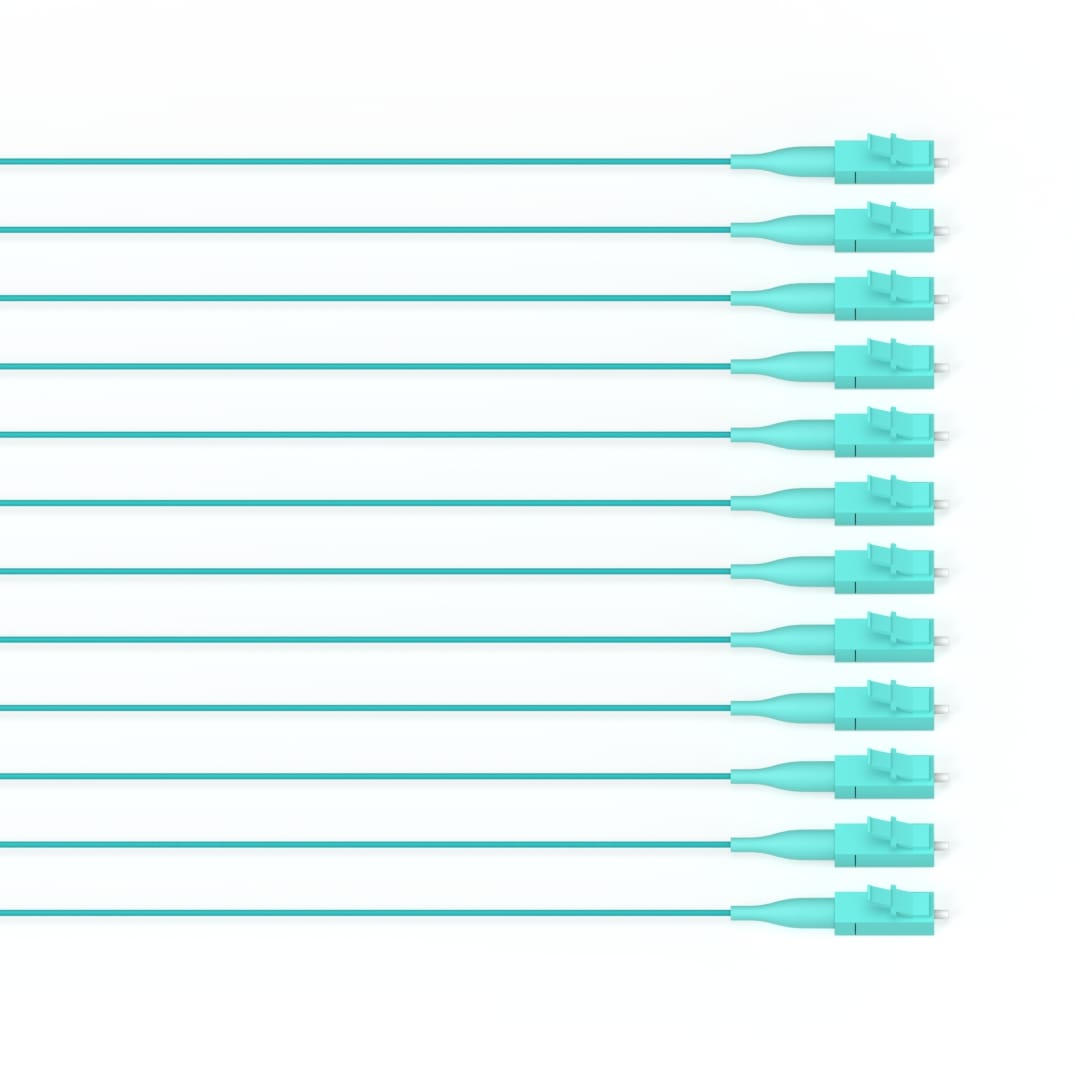

DTECH® OM3 Fibre Optic Pigtail LC UPC 0.9MM LSZH Aqua 1M 12PK

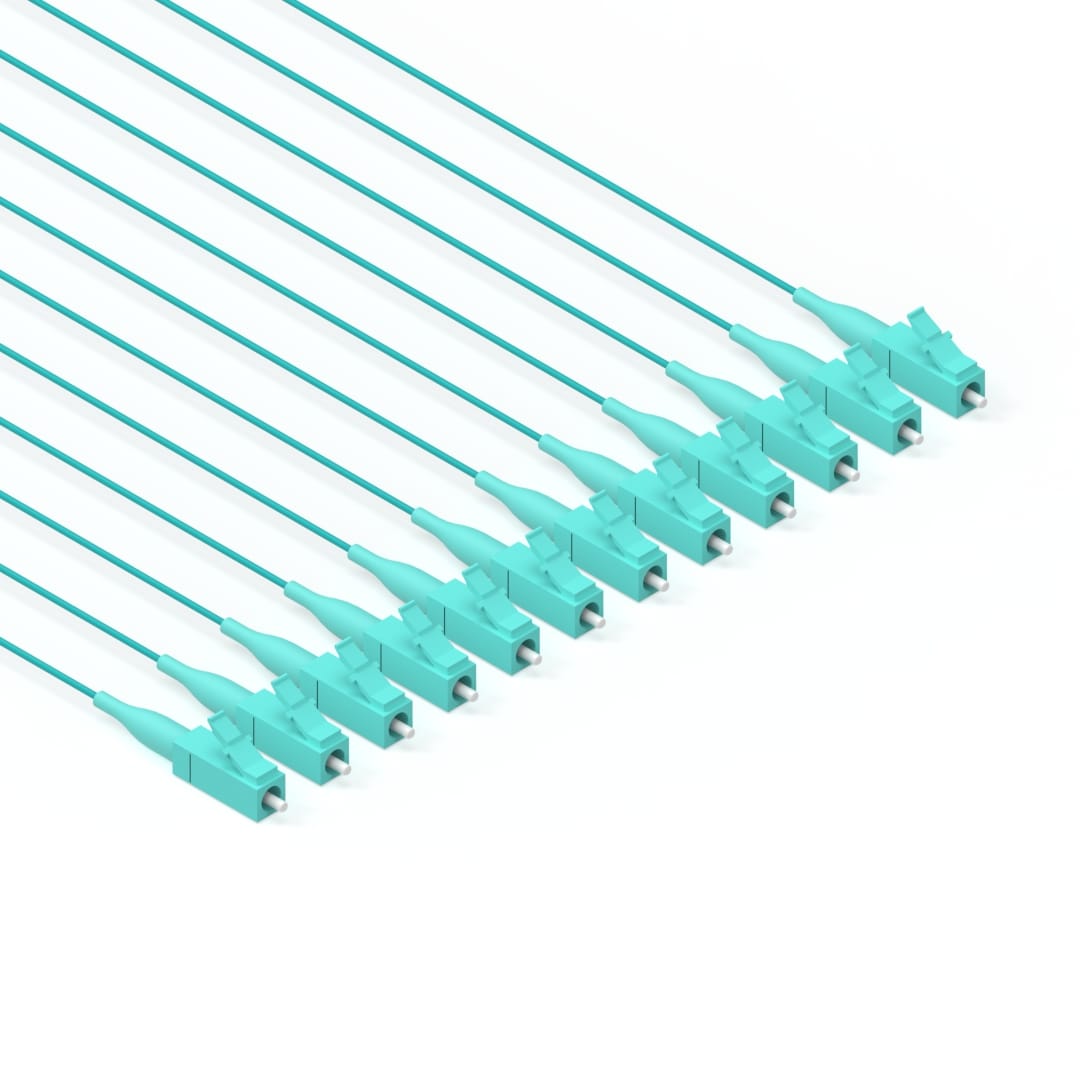

DTECH® OM3 Fibre Optic Pigtail LC UPC 0.9MM LSZH Aqua 1M 12PK - Image 2
DTECH® OM3 Fibre Optic Pigtail LC UPC 0.9MM LSZH Aqua 1M 12PK - Image 3

DTECH® OM3 Fibre Optic Pigtail LC UPC 0.9MM LSZH Aqua 1M 12PK

MPN OM3-PT-LCU-1 Category Features , ,

Original price was: £19.35.Current price is: £19.35. Ex. Vat

Fast UK Delivery

Free delivery on orders available

Secure Checkout

SSL protected gateway

>30YR Warranty

Performance guaranteed

  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® LC UPC OM3 multimode fibre optic pigtails engineered for high-performance splicing in optical networks.
  • Supports high-speed applications including 1G, 10G, 40G and 100G Ethernet, delivering reliable transmission over extended distances.
  • OM3 50/125µm bend-insensitive fibre allows tighter installation routing.
  • Precision ceramic ferrule connectors ensure low insertion loss and high return loss.
  • Supplied as a 12 pack of aqua pigtails for easy fibre mode identification.
Technical Product Information
ConnectorLC UPC SimplexFibre Count12 Fibre
Fibre GradeBend Insensitive Multimode Fibre (BIMMF)Fibre ModeOM3 (50/125µm)
Wavelength850/1300nmJacket MaterialLSZH
Cable Diameter0.9mmCable TypeTight Buffered
Bend Radius20 / 10 x Diameter (Short / Long)Mating Durability1000 Times
Insertion Loss≤0.3dBReturn Loss≥30dB
Attenuation at 850nm0.3dB/kmAttenuation at 1300nm1.0dB/km
Operating Temperature-20 to 70°CColourAqua
RoHS ConformityYesCE MarkingYes
