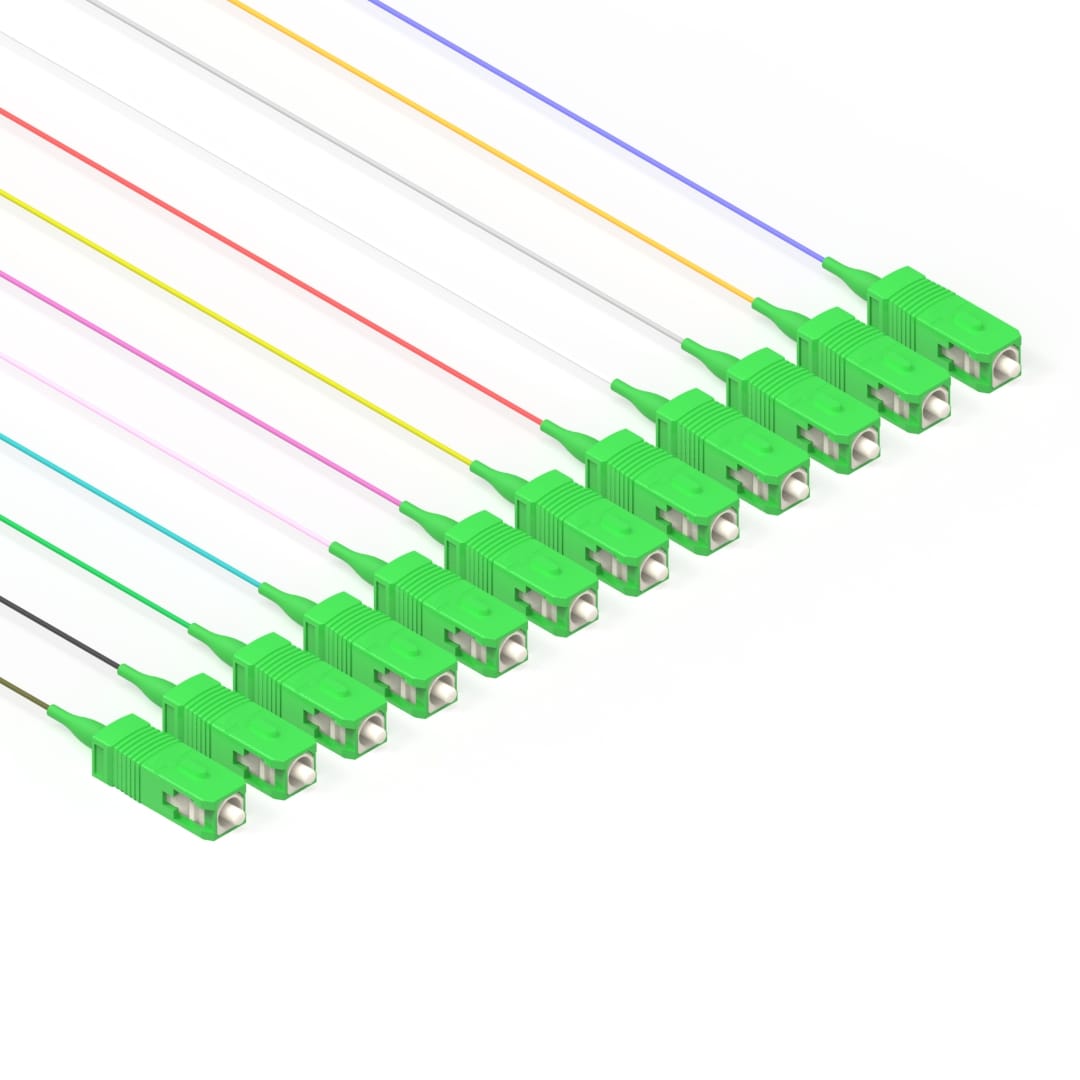

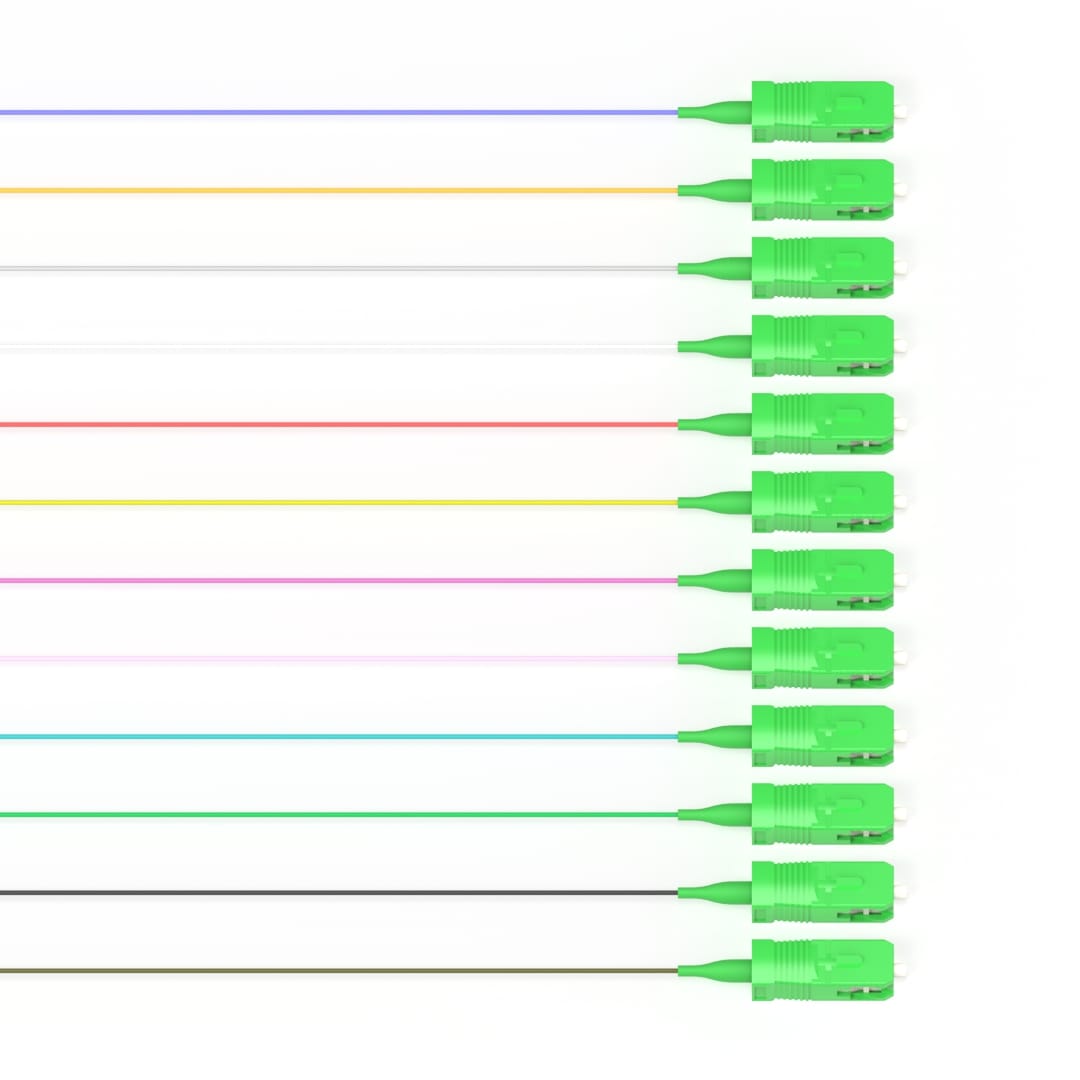

DTECH® OS2 12PK Pigtail SC APC 0.9MM LSZH TIA 2M

DTECH® OS2 12PK Pigtail SC APC 0.9MM LSZH TIA 2M

MPN OS2-PT-SCA-TIA-2 Category Features , ,

Original price was: £15.45.Current price is: £15.45. Ex. Vat

  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® SC APC OS2 singlemode fibre optic pigtails engineered for high-performance splicing in optical networks.
  • Supports high-speed applications including 1G, 10G, 40G and 100G Ethernet, delivering reliable transmission over extended distances.
  • G.657.A1 Bend Insensitive OS2 9/125µm singlemode fibre enables low attenuation and maximum signal strength for backbone and telecom networks.
  • Precision ceramic ferrule connectors ensure low insertion loss and high return loss.
  • Supplied as a 12 pack of individually TIA coloured pigtails for easy cable identification.
Technical Product Information
Connector ASC APC SimplexFibre Count12 Fibre
Fibre GradeG.657.A1Fibre ModeOS2 (9/125µm)
Wavelength1310/1550nmJacket MaterialLSZH
Cable Diameter0.9mmCable TypeTight Buffered
Bend Radius10 / 5 x Diameter (Short / Long)Mating Durability1000 Times
Insertion Loss≤0.3dBReturn Loss≥60dB
Attenuation at 1310nm0.4dB/kmAttenuation at 1550nm0.3dB/km
Operating Temperature-40 to 70°CColour12x Individual TIA-598-C
RoHS ConformityYesCE MarkingYes
