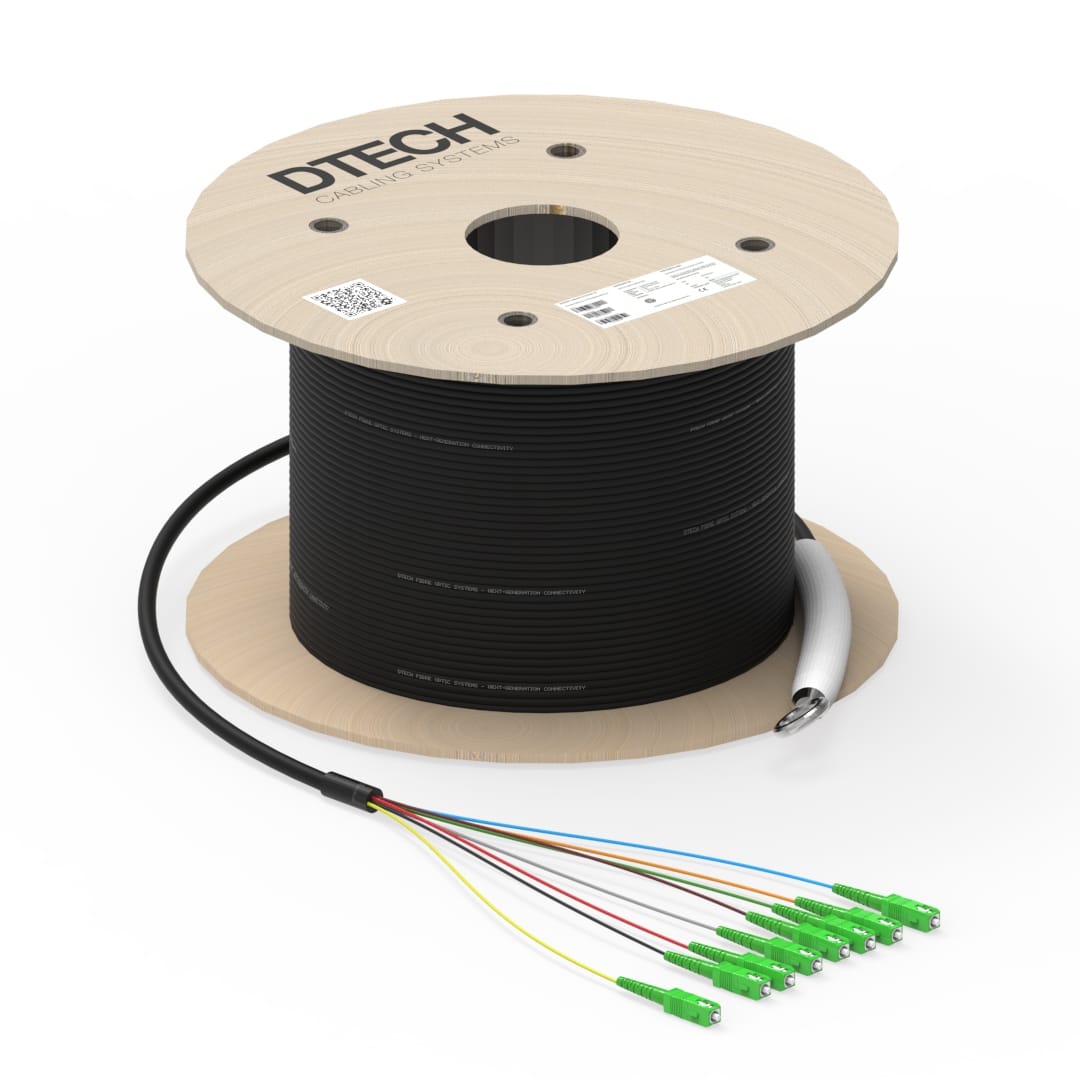

DTECH® OS2 Fibre Optic Cable Loose Tube Pre Terminated 4-24 Fibre G.657.A1 Eca

DTECH® OS2 Fibre Optic Cable Loose Tube Pre Terminated 4-24 Fibre G.657.A1 Eca

MPN PRE-OS2-LT Category Features , , Brand:
Grand total

Fast UK Delivery

Free delivery on orders available

Secure Checkout

SSL protected gateway

>30YR Warranty

Performance guaranteed

  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® OS2 9/125µm loose tube singlemode fibre optic cable designed for high-density installations.
  • G.657.A1 bend insensitive singlemode fibre provides improved routing flexibility while maintaining low attenuation and strong signal performance.
  • UV resistant Low Smoke Zero Halogen Jacket makes it suitable for Internal and External installations.

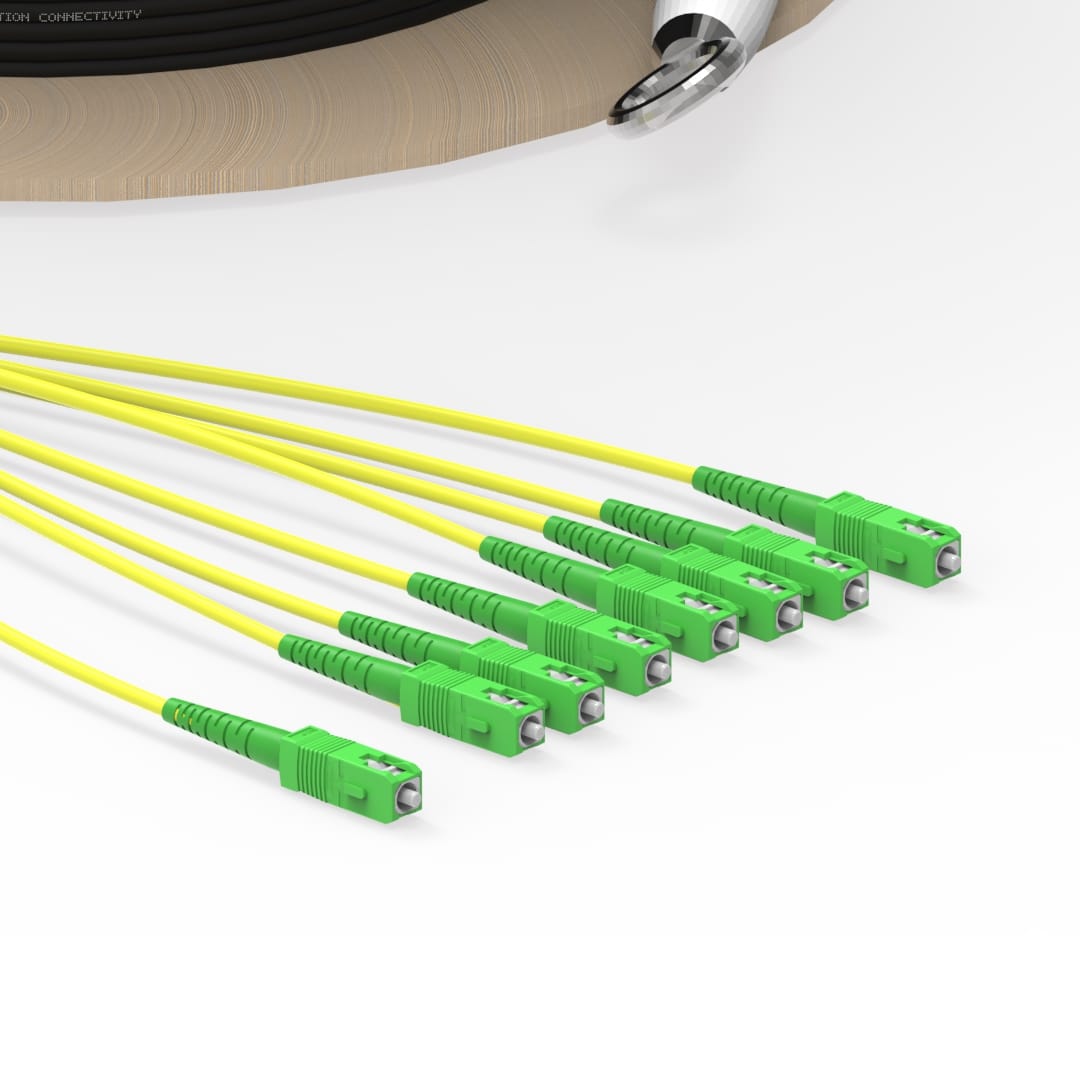

  • Factory terminated and tested for reliable, certified plug and play connectivity.
Technical Product Information
Fibre ModeOS2 SinglemodeFibre StandardG.657.A1
Fibre TypeLoose TubeLoose Tube GelThixotropic Compound
Strength MembersGlass YarnsEnvironmentInternal / External
Jacket MaterialLSZH UV StabilizedRipcords2 Under Sheath
Fibre Colour CodeTIA-598-DOperating Temp-20 to +70°C
Crush Resistance / 10cm1000NMin Bending Radius20 / 15 x OD (Short / Long)
Attenuation at 1310nm≤0.40 dB/kmAttenuation at 1550nm≤0.30 dB/km
Mode Field Diameter@1310nm (8.6~9.5) ± 0.4µmZero Dispersion Wavelength1300~1324 nm
Zero Dispersion Slope≤0.092 ps/nm² · kmPolarisation Mode Dispersion≤0.2 ps/√km
Cut-off Wavelength≤1260 nmMacro Bending Loss (10 Turn 30mm Ø)≤0.25 dB @ 1550nm / ≤1.0 dB @ 1625nm
Macro Bending Loss (1 Turn 20mm Ø)≤0.75 dB @ 1550nm / ≤1.5 dB @ 1625nmCladding Diameter125 ± 1.0µm
Core / Clad Concentricity≤0.5µmCladding Non-Circularity≤1.0%
Proof Stress≥0.69 GPaEuroclassEca
StandardsIEC 60793-1, IEC 60793-2, IEC 60794-3-10RoHS ConformityYes
CE MarkingYes
