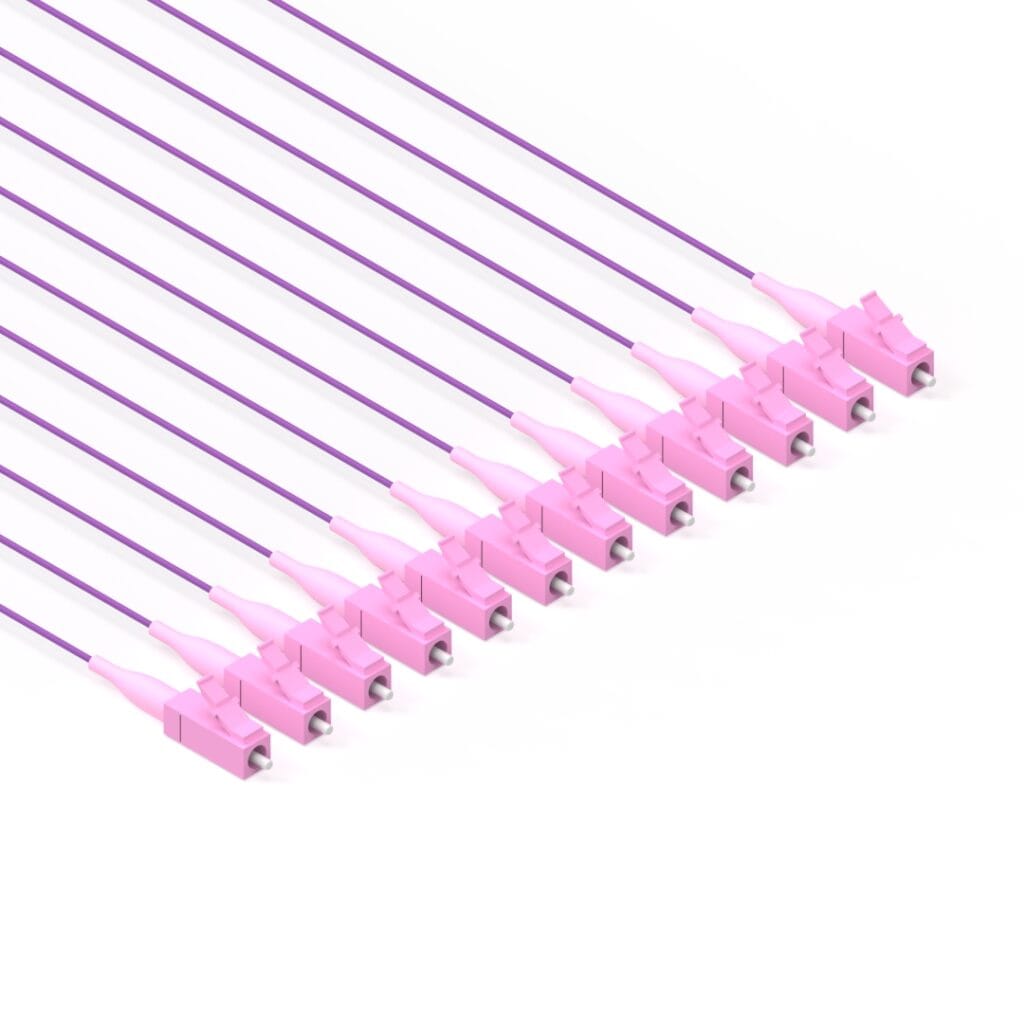

DTECH® OM4 Fibre Optic Pigtail LC UPC 0.9MM LSZH Violet 1M 12 PK

DTECH® OM4 LC UPC multimode fibre pigtails for splicing in optical networks. Supports 10G to 100G applications, with bend-insensitive 50/125µm fibre and a 0.9mm LSZH-jacketed leg, supplied in convenient 12-packs.

MPN

OM4-PT-LCU-1

Fibre Grade

Bend Insensitive Multimode Fibre (BIMMF)

Jacket Material

LSZH (Low Smoke Zero Halogen)

Insertion Loss

≤0.3dB

Return Loss

≥30dB

Outer Diameter

0.9mm

Use Cases

Fibre Termination, Splice Trays, Patch Panels

KEY FEATURES

High Performance Connectivity

OM410G to 550mOM410G to 550mLCLow-Loss ConnectionLCLow-Loss ConnectionSimplexSingle-StrandSimplexSingle-StrandUPCLow ReflectanceUPCLow ReflectancePigtailEasy SplicePigtailEasy SpliceLSZHSafer in FireLSZHSafer in Fire
Available Online
£22.80 / Pack
£27.36 inc. VAT
Total (Ex. VAT)£22.80
Add to Project Enquiry
UK Distribution Centre
Ready for Immediate Dispatch
Order cut-off: 2:30pm
UK Stocked Fully Tracked DTECH® Direct
Available Online
£22.80 / Pack
£27.36 inc. VAT
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS
  • DTECH® LC UPC OM4 multimode fibre optic pigtails engineered for high-performance splicing in optical networks.
  • Supports high-speed applications including 1G, 10G, 40G and 100G Ethernet, delivering reliable transmission over extended distances.
  • OM4 50/125µm bend-insensitive fibre allows tighter installation routing.
  • Precision ceramic ferrule connectors ensure low insertion loss and high return loss.
  • Supplied as a 12 pack of violet pigtails for easy fibre mode identification.
3RD PARTY COMPLIANCE
3D End Face Tested

In-House Tested.

IL/RL Tested

Insertion & Return Headroom.

CE Marked

Conformity Europe.

RoHS Compliant

Compliant Product.

DTECH® Warranty

30 YR System Warranty.

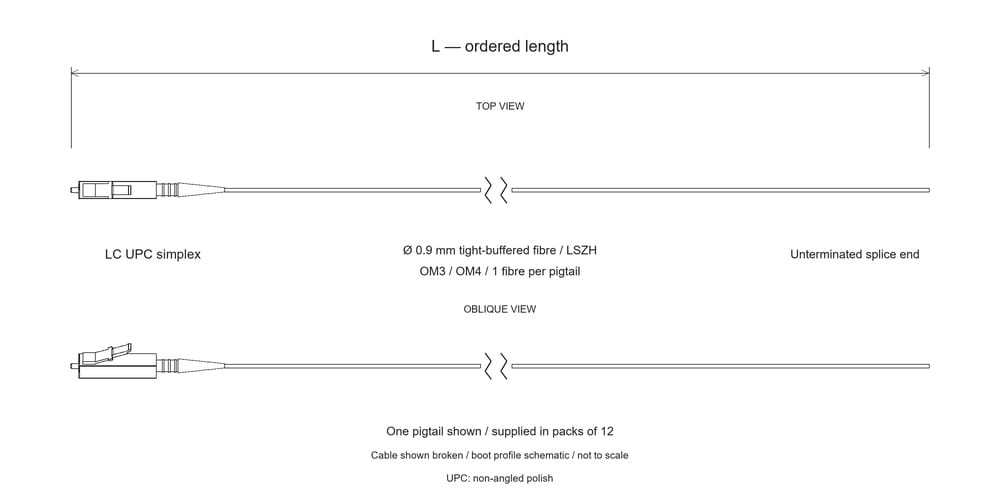

ConnectorLC UPC SimplexFibre Count12 Fibre
Fibre GradeBend Insensitive Multimode Fibre (BIMMF)Fibre ModeOM4 (50/125µm)
Wavelength850/1300nmJacket MaterialLSZH
Cable Diameter0.9mmCable TypeTight Buffered
Min Bend Radius Installation20 × ODMin Bend Radius Installed10 × OD
Mating Durability1000 TimesInsertion Loss≤0.3dB
Return Loss≥30dBAttenuation at 850nm0.3dB/km
Attenuation at 1300nm1.0dB/kmOperating Temperature-20 to 70°C
ColourVioletRoHS ConformityYes
CE MarkingYes
Technical Datasheet
Certificate of Conformity
Product Installation Guides
