High Performance Connectivity
Conformity Europe.
Compliant Product.
30 YR System Warranty.
Euroclass 50575.

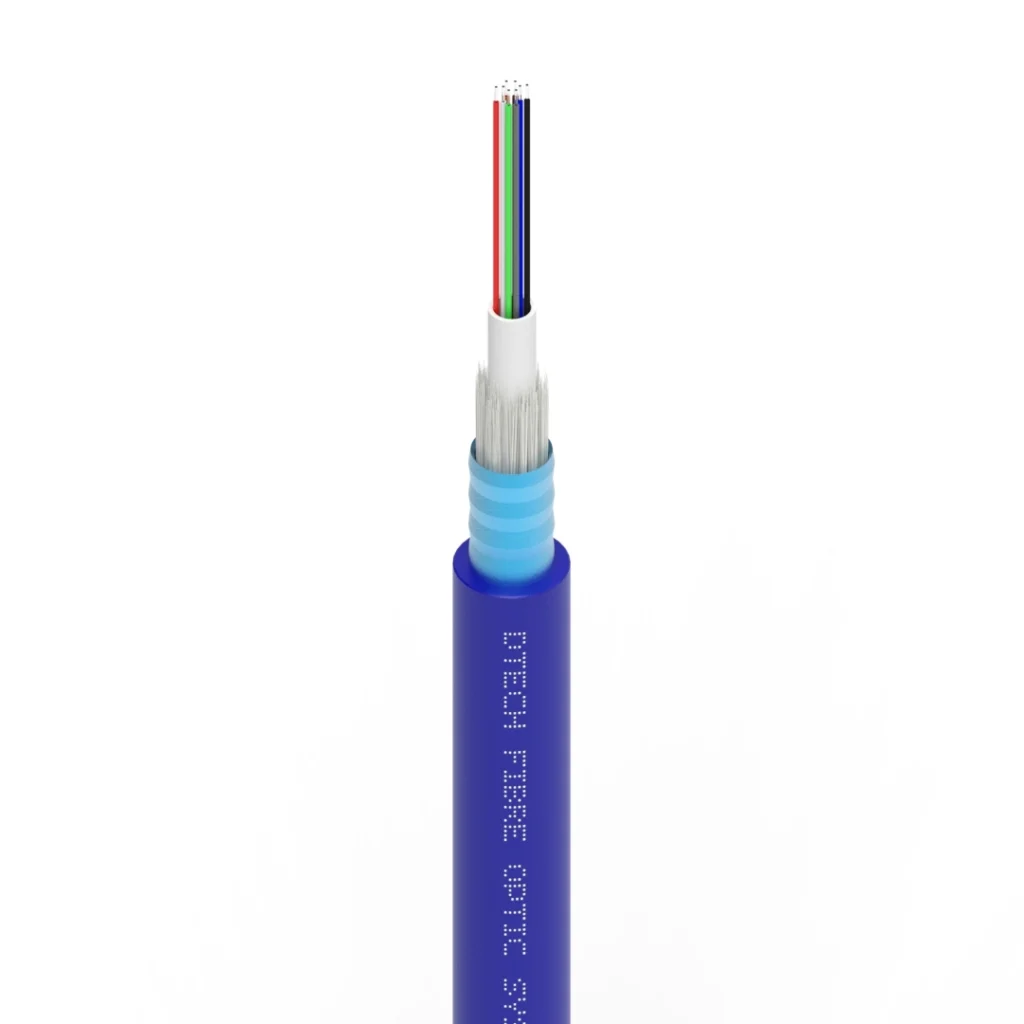

| Fibre Mode | OS2 Singlemode | Fibre Standard | G.657.A1 |
| Fibre Count | 8 | Fibre Type | Loose Tube |
| Tube Configuration | 1 × 8F | Loose Tube Gel | Thixotropic Compound |
| Strength Members | Glass Yarns | Armouring | Corrugated Steel Tape |
| Environment | Direct Burial | Jacket Material | LSZH UV Stabilized |
| Ripcords | 2 Under Sheath | Fibre Colour Code | TIA-598-D |
| Outer Diameter (mm) | 8.1 ± 0.5 | Weight/km (±15%) | 84 kg |
| Operating Temp | -20 to +70°C | Max Tensile Load | 500N |
| Crush Resistance / 10cm | 1000N | Min Bend Radius Installation | 20 × OD |
| Min Bend Radius Installed | 15 × OD | Attenuation at 1310nm | ≤0.40 dB/km |
| Attenuation at 1550nm | ≤0.30 dB/km | Mode Field Diameter | @1310nm (8.6~9.5) ± 0.4µm |
| Zero Dispersion Wavelength | 1300~1324 nm | Zero Dispersion Slope | ≤0.092 ps/nm² · km |
| Polarisation Mode Dispersion | ≤0.2 ps/√km | Cut-off Wavelength | ≤1260 nm |
| Macro Bending Loss (10 Turn 30mm Ø) | ≤0.25 dB @ 1550nm / ≤1.0 dB @ 1625nm | Macro Bending Loss (1 Turn 20mm Ø) | ≤0.75 dB @ 1550nm / ≤1.5 dB @ 1625nm |
| Cladding Diameter | 125 ± 1.0µm | Core / Clad Concentricity | ≤0.5µm |
| Cladding Non-Circularity | ≤1.0% | Proof Stress | ≥0.69 GPa |
| Euroclass | Eca | Standards | IEC 60793-1, IEC 60793-2, IEC 60794-3-10 |
| RoHS Conformity | Yes | CE Marking | Yes |
| Cable Length | Custom | Packaging Method | Reel |
As a member of the HDBaseT® Alliance, DTECH® products comfortably support the latest HDBaseT standards — engineered for next-gen homes and buildings.
Built for residential, commercial and industrial environments, DTECH XG® system architecture guarantees full 10GbE performance from end to end.
