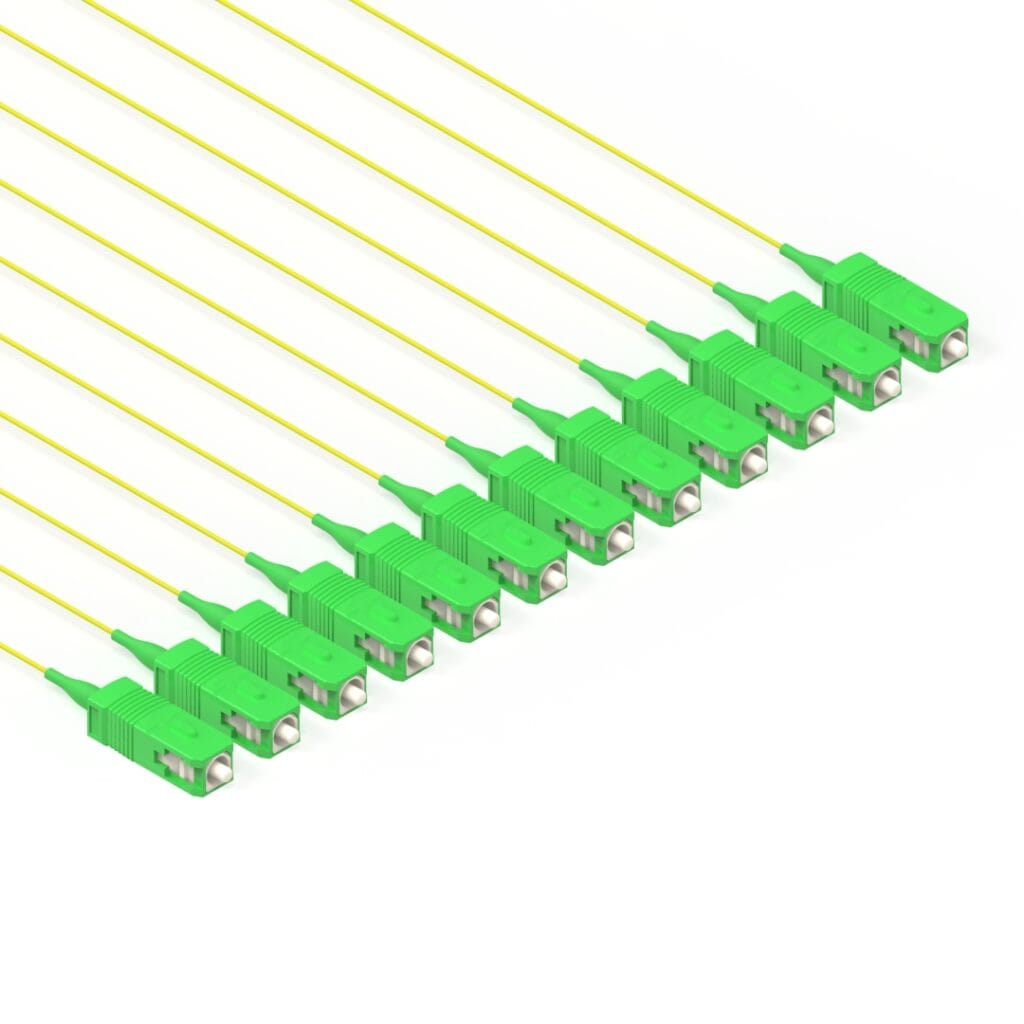

DTECH® OS2 Fibre Optic Pigtail SC APC 0.9MM LSZH Yellow 1M 12PK

DTECH® OS2 SC APC singlemode fibre pigtails for splicing in optical networks. Supports 1G to 100G over long distances, with G.657.A1 bend-insensitive 9/125µm fibre and angled APC polish, supplied in 12-packs.

MPN

OS2-PT-SCA-1

Fibre Grade

G.657.A1

Jacket Material

LSZH (Low Smoke Zero Halogen)

Insertion Loss

≤0.3dB

Return Loss

≥60dB

Outer Diameter

0.9mm

Use Cases

Fibre Termination, Splice Trays, Patch Panels

KEY FEATURES

High Performance Connectivity

OS2Long-Haul 10km+OS2Long-Haul 10km+SCSecure Push-PullSCSecure Push-PullSimplexSingle-StrandSimplexSingle-StrandAPCUltra-Low ReflectanceAPCUltra-Low ReflectancePigtailEasy SplicePigtailEasy SpliceLSZHSafer in FireLSZHSafer in Fire
Available Online
£18.20 / Pack
£21.84 inc. VAT
Total (Ex. VAT)£18.20
Add to Project Enquiry
UK Distribution Centre
Ready for Immediate Dispatch
Order cut-off: 2:30pm
UK Stocked Fully Tracked DTECH® Direct
Available Online
£18.20 / Pack
£21.84 inc. VAT
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS
  • DTECH® SC APC OS2 singlemode fibre optic pigtails engineered for high-performance splicing in optical networks.
  • Supports high-speed applications including 1G, 10G, 40G and 100G Ethernet, delivering reliable transmission over extended distances.
  • G.657.A1 Bend Insensitive OS2 9/125µm singlemode fibre enables low attenuation and maximum signal strength for backbone and telecom networks.
  • Precision ceramic ferrule connectors ensure low insertion loss and high return loss.
  • Supplied as a 12 pack of yellow pigtails for easy fibre mode identification.
3RD PARTY COMPLIANCE
3D End Face Tested

In-House Tested.

IL/RL Tested

Insertion & Return Headroom.

CE Marked

Conformity Europe.

RoHS Compliant

Compliant Product.

DTECH® Warranty

30 YR System Warranty.

Connector ASC APC SimplexFibre Count12 Fibre
Fibre GradeG.657.A1Fibre ModeOS2 (9/125µm)
Wavelength1310/1550nmJacket MaterialLSZH
Cable Diameter0.9mmCable TypeTight Buffered
Min Bend Radius Installation10 × ODMin Bend Radius Installed5 × OD
Mating Durability1000 TimesInsertion Loss≤0.3dB
Return Loss≥60dBAttenuation at 1310nm0.4dB/km
Attenuation at 1550nm0.3dB/kmOperating Temperature-40 to 70°C
ColourYellowRoHS ConformityYes
CE MarkingYes
Technical Datasheet
Certificate of Conformity
Product Installation Guides
