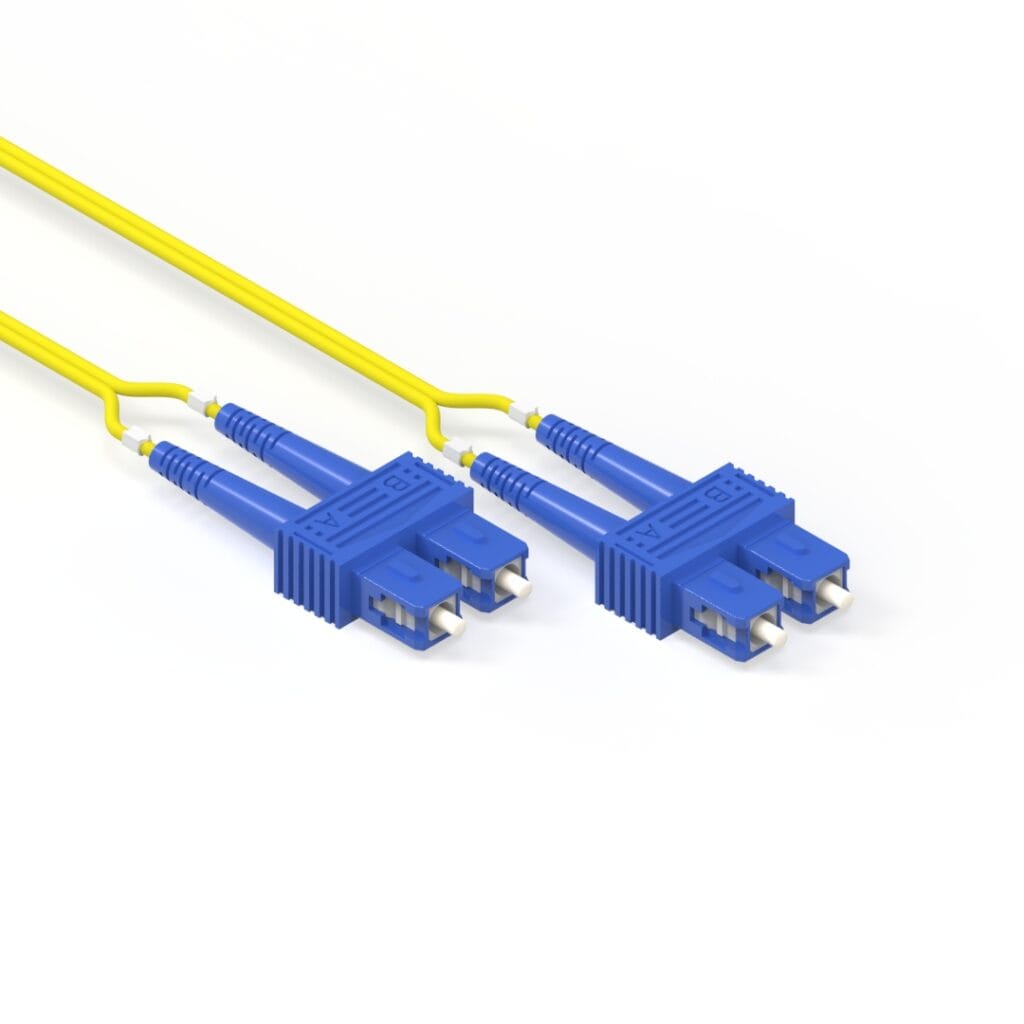

DTECH® OS2 SC UPC to SC UPC Duplex 2mm LSZH Yellow 3M Fibre Optic Patch Lead

DTECH® OS2 SC UPC duplex singlemode patch lead for long-distance optical networks. Supports 1G to 100G Ethernet, with G.657.A1 bend-insensitive 9/125µm fibre and a low-smoke LSZH jacket for tidy routing.

MPN

OS2-SCUSCU-DX-3

Fibre Grade

G.657.A1

Construction

Tight Buffered

Jacket Material

LSZH (Low Smoke Zero Halogen)

Insertion Loss

≤0.3dB

Return Loss

≥50dB

Use Cases

Long-Haul Links, Data Centre, Patch Panels

KEY FEATURES

High Performance Connectivity

OS2Long-Haul 10km+OS2Long-Haul 10km+G657.A1Bend TolerantG657.A1Bend TolerantSCSecure Push-PullSCSecure Push-PullDuplexSend & ReceiveDuplexSend & ReceiveUPCLow ReflectanceUPCLow ReflectanceLSZHSafer in FireLSZHSafer in Fire
Enquire
Contact Sales
Available for direct enquiry. Speak to our team for current supply, project pricing or a scheduled delivery.
Enquire Add to Project Enquiry
Contact Sales
Enquire
Contact Sales
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS
  • DTECH® SC UPC to SC UPC Duplex OS2 singlemode fibre optic patch leads engineered for high-performance long-distance optical networks.
  • Supports high-speed applications including 1G, 10G, 40G and 100G Ethernet, delivering reliable transmission over extended distances.
  • G.657.A1 Bend Insensitive OS2 9/125µm singlemode fibre enables low attenuation and maximum signal strength for backbone and telecom networks.
  • Precision ceramic ferrules ensure low insertion loss and high return loss.
  • LSZH (Low Smoke Zero Halogen) jacket reduces smoke and toxic emissions, making it ideal for indoor and high-density environments.
  • Factory terminated and 100% tested for performance and reliability, ensuring plug-and-play deployment for seamless connectivity.
3RD PARTY COMPLIANCE
3D End Face Tested

In-House Tested.

IL/RL Tested

Insertion & Return Headroom.

CE Marked

Conformity Europe.

RoHS Compliant

Compliant Product.

DTECH® Warranty

30 YR System Warranty.

Connector ASC UPC DuplexConnector BSC UPC Duplex
Fibre Count2 Fibre (Duplex)Fibre GradeG.657.A1
Fibre ModeOS2 (9/125µm)Wavelength1310/1550nm
Jacket MaterialLSZHCable Diameter2.00mm
Cable TypeTight BufferedMin Bend Radius Installation10 × OD
Min Bend Radius Installed5 × ODMating Durability1000 Times
Insertion Loss≤0.3dBReturn Loss≥60dB
Attenuation at 1310nm0.4dB/kmAttenuation at 1550nm0.3dB/km
Operating Temperature-10 to 70°CColourYellow
RoHS ConformityYesCE MarkingYes
Technical Datasheet
Certificate of Conformity
Product Installation Guides
