Armoured
Custom Made

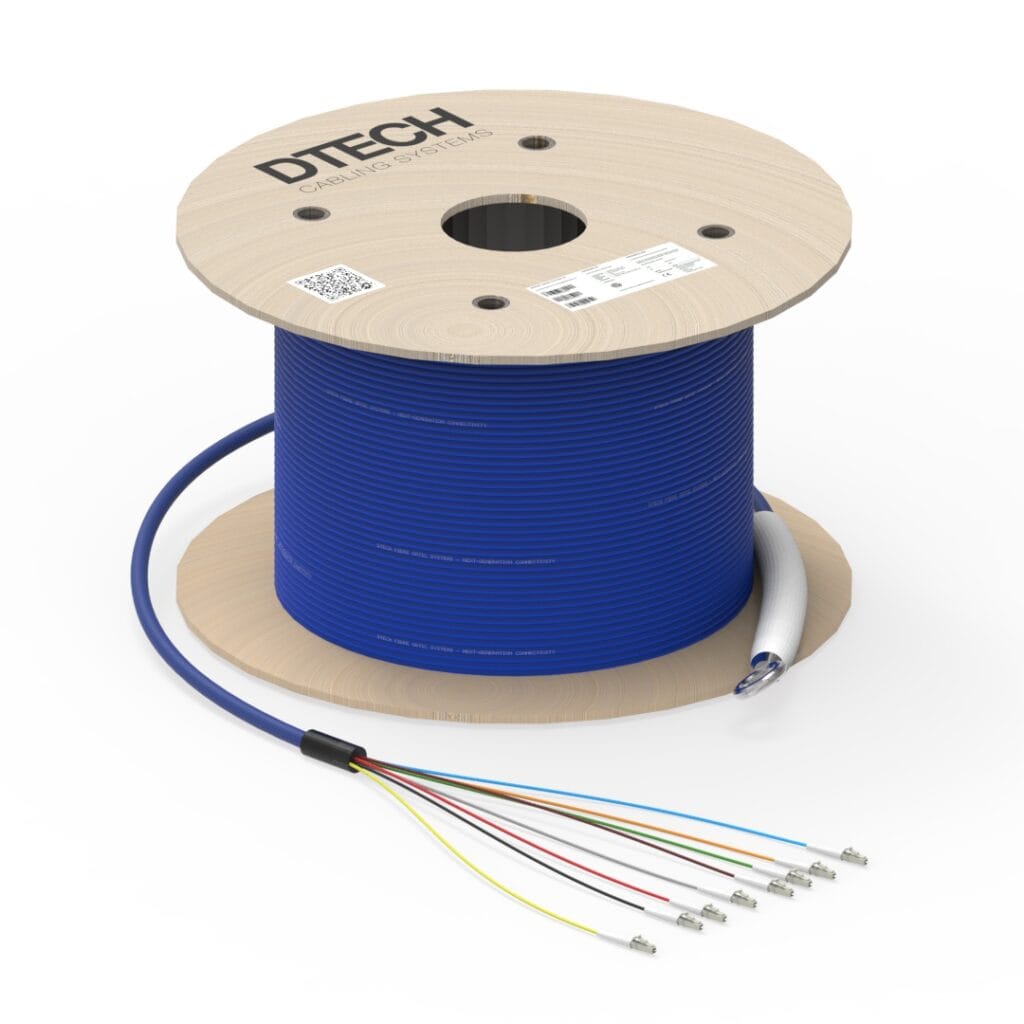

OM4 Pre-Terminated 4-24 Core CST Armoured Loose Tube Fibre Optic Cable – Eca

DTECH® OM4 50/125µm loose-tube CST armoured pre-terminated multimode fibre trunk, available from 4 to 24 fibres and factory terminated and tested for fast, reliable deployment. Corrugated steel tape armour provides enhanced crush and rodent protection, while bend-insensitive fibre supports dependable high-speed transmission across demanding routes.

Need more configuration options? Use our Advanced Fibre Configurator.

Made to order – typical lead time 2–3 working days.

MPN

PRE-OM4-CST

Fibre Grade

Bend Insensitive Multimode Fibre (BIMMF)

Construction

Loose Tube

Armouring

Corrugated Steel Tape (CST)

Jacket Material

LSZH (Low Smoke Zero Halogen)

Environment

Direct Burial

Use Cases

Fast Deployment, Data Centre, Campus Backbone

KEY FEATURES

High Performance Connectivity

OM410G to 550mOM410G to 550mArmouredDirect BurialArmouredDirect Burial3500MHzHigh Bandwidth3500MHzHigh BandwidthBIMMFTight RoutingBIMMFTight RoutingLSZHSafer in FireLSZHSafer in FireInternal / ExternalIndoor & OutInternal / ExternalIndoor & OutUVSun & Weather ProofUVSun & Weather ProofGel FilledTotal Water BlockGel FilledTotal Water Block
+ Project
Available Online
£136.82 / Assembly
£164.18 inc. VAT
Price:
Total (Ex. VAT)£136.82
Buying as a business? Partner pricing availableLog in
Apply
Ready for Immediate Dispatch
UK Distribution Centre · Order by 2:30pm
UK Stocked Fully Tracked DTECH® Direct
  • SSL Secure Checkout
  • Alliance Member
  • Warrantied Systems
Available Online
£136.82 / Assembly
£164.18 inc. VAT
EXTENDED PRODUCT SPECIFICATIONS
  • DTECH® OM4 50/125µm loose tube multimode fibre optic cable designed for high-density installations.
  • Bend insensitive OM4 fibre provides improved routing flexibility while maintaining low attenuation and stable signal performance.
  • Corrugated Steel Tape (CST) armouring provides enhanced mechanical protection, making the cable suitable for direct burial and harsh environments.
  • Factory terminated and tested for reliable, certified plug and play connectivity.
3RD PARTY COMPLIANCE
CE Marked

Conformity Europe.

RoHS Compliant

Compliant Product.

DTECH® Warranty

30 YR System Warranty.

3D End Face Tested

In-House Tested.

IL/RL Tested

Insertion & Return Headroom.

CPR Eca

Euroclass 50575.

Fibre ModeOM4 MultimodeFibre Count4-24
Fibre TypeLoose TubeTube Configuration1 × 4-24F
Loose Tube GelThixotropic CompoundStrength MembersGlass Yarns
ArmouringCorrugated Steel TapeEnvironmentDirect Burial
Jacket MaterialLSZH UV StabilizedRipcords2 Under Sheath
Fibre Colour CodeTIA-598-DOuter Diameter (mm)8.1 ± 0.5
Weight/km (±15%)84 kgOperating Temp-20 to +70°C
Max Tensile Load500NCrush Resistance / 10cm1000N
Min Bend Radius Installation20 × ODMin Bend Radius Installed15 × OD
Proof Stress≥8.4N (100Kpsi, ≥1.0%)Attenuation at 850nm≤3.0 dB/km
Attenuation at 1300nm≤1.0 dB/kmBandwidth at 850nm≥3500 MHz.km
Bandwidth at 1300nm≥500 MHz.kmNumerical Aperture (NA)0.200 ± 0.015µm
Core Diameter50 ± 2.5µmCladding Diameter125 ± 2.0µm
Core / Clad Concentricity≤1.5µmCladding Non-Circularity≤2.0%
EuroclassEcaStandardsIEC 60793-1, IEC 60793-2, IEC 60794-3-10
RoHS ConformityYesCE MarkingYes
Cable LengthCustomPackaging MethodReel
