High Performance Connectivity
HDBaseT Recommended.
Rated Product.
30 YR System Warranty.

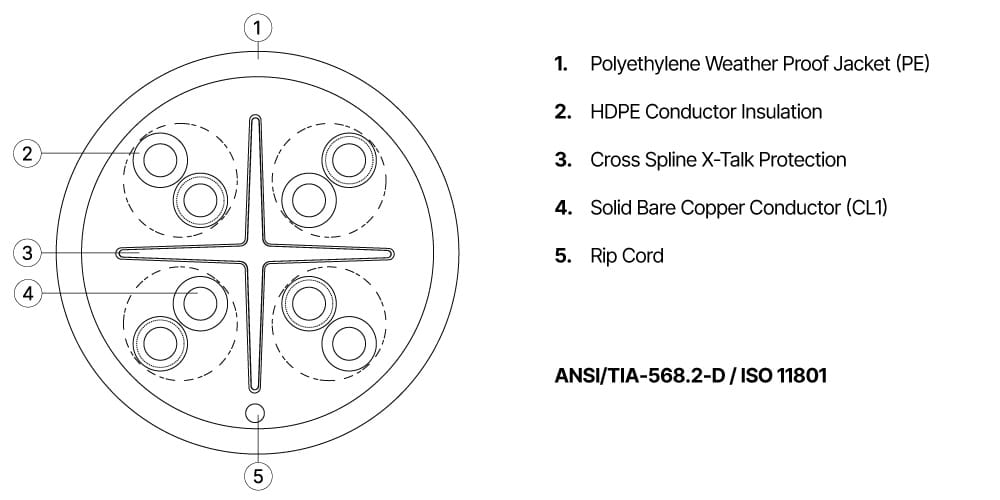

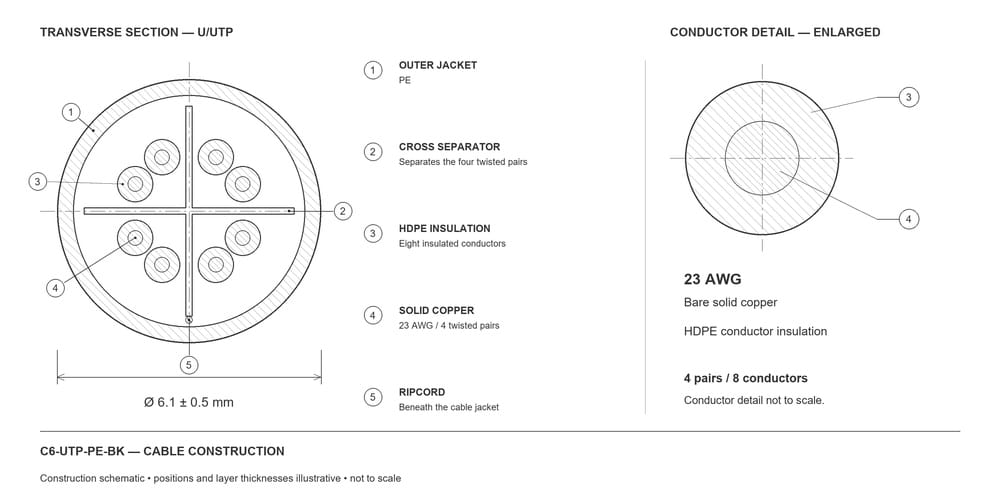

| Category | 6 | Shielding Type | U/UTP |
| Jacket Material | PE | Core Insulation | HDPE |
| Conductor Material | Pure Bare Solid Copper | Wire Gauge | 23AWG |
| Number of Conductors | 4 Pairs | Cable Outer Diameter (mm) | 6.1 ± 0.5 |
| Rated Bandwidth (MHz) | 500 | NVP (%) | 69 |
| Data Transmission | 10GBase-T up to 90M | PoE Grade | PoE++ |
| Environment | External | Operating Temperature (°C) | -20 to 75 |
| Installation Temp (°C) | -20 to 60 | Max Pull Load (N) | 100 |
| Min Bend Radius Installation | 8 × OD | Min Bend Radius Installed | 4 × OD |
| Standard | ISO/IEC 11801, ANSI/TIA-568.2-D | Verification | HDBaseT, ETL, EC |
| Euroclass | Fca | RoHS Conformity | Yes |
| CE Marking | Yes | Cable Length | 1000ft (305m) |
| Packaging Method | Reel |
As a member of the HDBaseT® Alliance, DTECH® products comfortably support the latest HDBaseT standards — engineered for next-gen homes and buildings.
Built for residential, commercial and industrial environments, DTECH XG® system architecture guarantees full 10GbE performance from end to end.
