High Performance Connectivity
HDBaseT Recommended.
30 YR System Warranty.
Euroclass 50575.
| Category | Class Ea up to 70m | Shielding Type | F/UTP |
| Jacket Material | LSZH | Core Insulation | HDPE |
| Conductor Material | Pure Bare Solid Copper | Wire Gauge | 23AWG |
| Number of Conductors | 4 Pairs | Cable Outer Diameter (mm) | 7.0 ± 0.5 |
| Rated Bandwidth (MHz) | 500 | NVP (%) | 69 |
| Data Transmission | 10GBase-T up to 100M | PoE Grade | PoE++ |
| Environment | Internal / External | Operating Temperature (°C) | -20 to 75 |
| Installation Temp (°C) | -20 to 60 | Max Pull Load (N) | 100 |
| Min Bend Radius Installation | 8 × OD | Min Bend Radius Installed | 4 × OD |
| Standard | ISO/IEC 11801, ANSI/TIA-568.2-D | Verification | HDBaseT |
| Reaction to Fire (EN 13501-6) | Dca | Smoke Development (EN 13501-6) | s2 |
| Flaming Droplets (EN 13501-6) | d2 | Acidity (EN 13501-6) | a2 |
| RoHS Conformity | Yes | CE Marking | Yes |

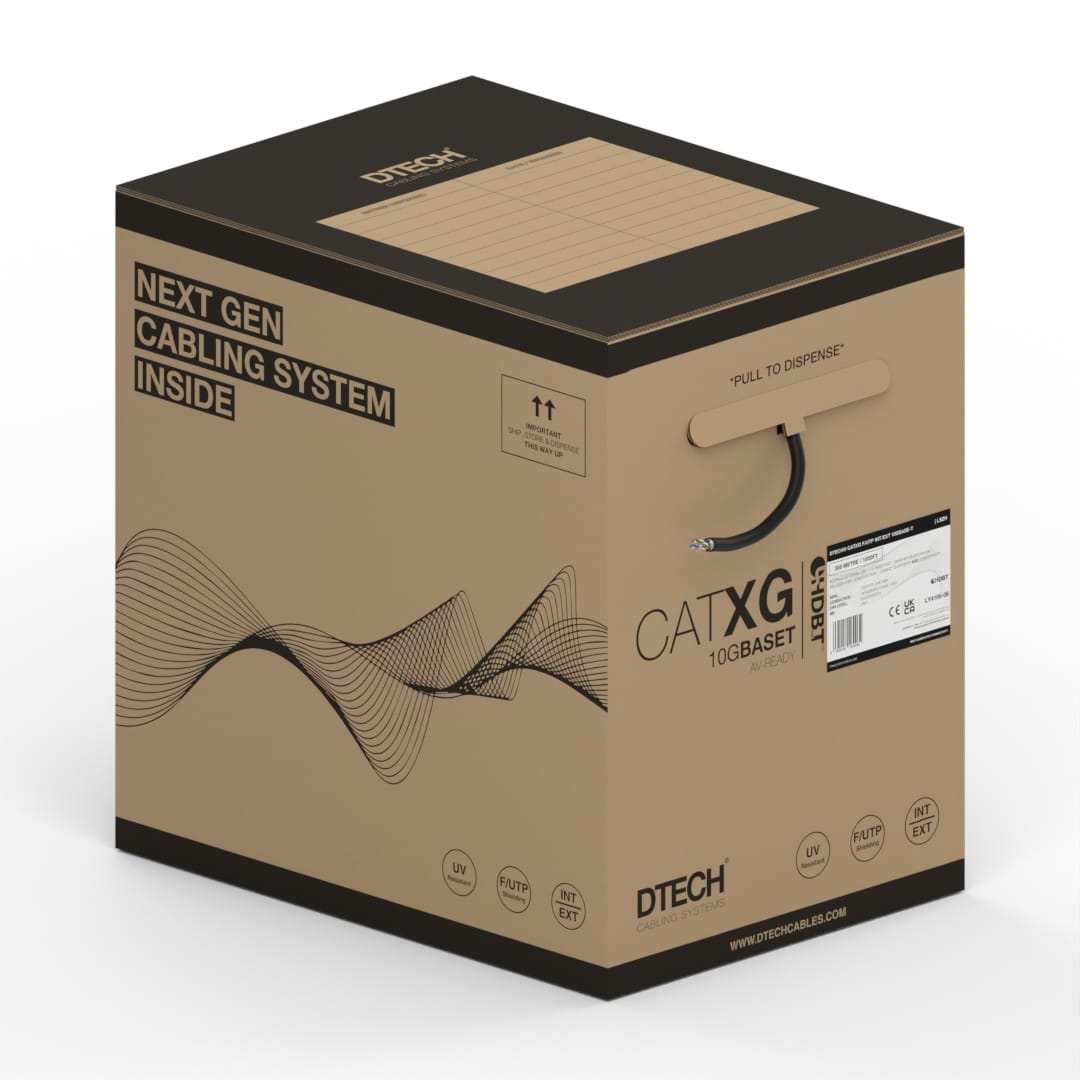

| Cable Length | 1000ft (305m) | Packaging Method | Pull Box |
As a member of the HDBaseT® Alliance, DTECH® products comfortably support the latest HDBaseT standards — engineered for next-gen homes and buildings.
Built for residential, commercial and industrial environments, DTECH XG® system architecture guarantees full 10GbE performance from end to end.
