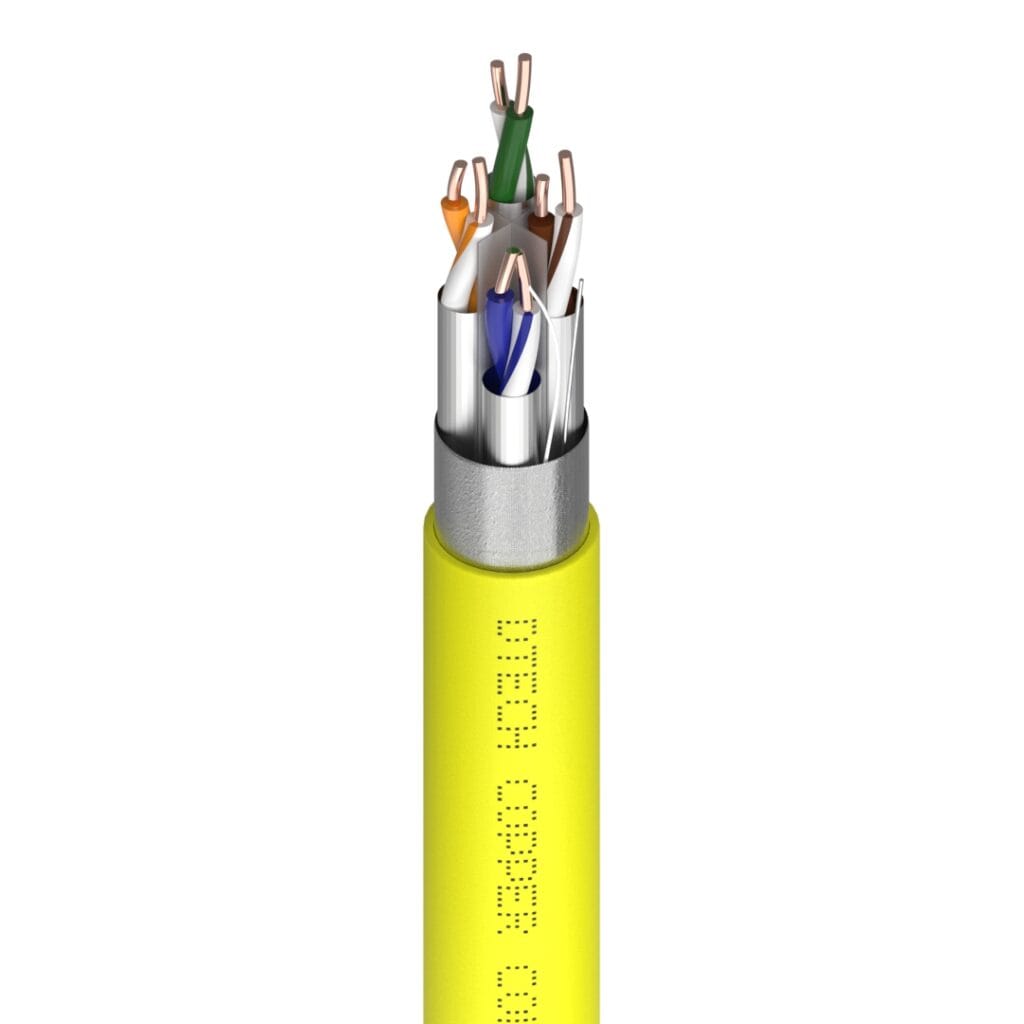

DTECH® Cat 7 F/FTP 1000MHz LSZH Yellow 305M

DTECH® Cat 7 1000MHz F/FTP fully shielded cable with overall foil and individually screened pairs maximising EMI protection. Supports 10GBase-T up to 100m, finished in a low-smoke LSZH jacket for demanding commercial networks.

MPN

C7-FFTP-ZH-NYL

Category

7

Shielding

F/FTP

Jacket Material

LSZH (Low Smoke Zero Halogen)

Euroclass

Dca, s2, d2, a2

Environment

Internal

Use Cases

Office Networks, Structured Cabling, Data Centre, High EMI Zones

KEY FEATURES

High Performance Connectivity

10GBASE-T10x Gigabit10GBASE-T10x GigabitPoE++Power & DataPoE++Power & Data1000MHzExtended Bandwidth1000MHzExtended BandwidthLSZHSafer in FireLSZHSafer in FireShieldedInterference-FreeShieldedInterference-FreeInternalIndoor RatedInternalIndoor Rated
Enquire
Contact Sales
Available for direct enquiry. Speak to our team for current supply, project pricing or a scheduled delivery.
Enquire Add to Project Enquiry
Contact Sales
Enquire
Contact Sales
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS

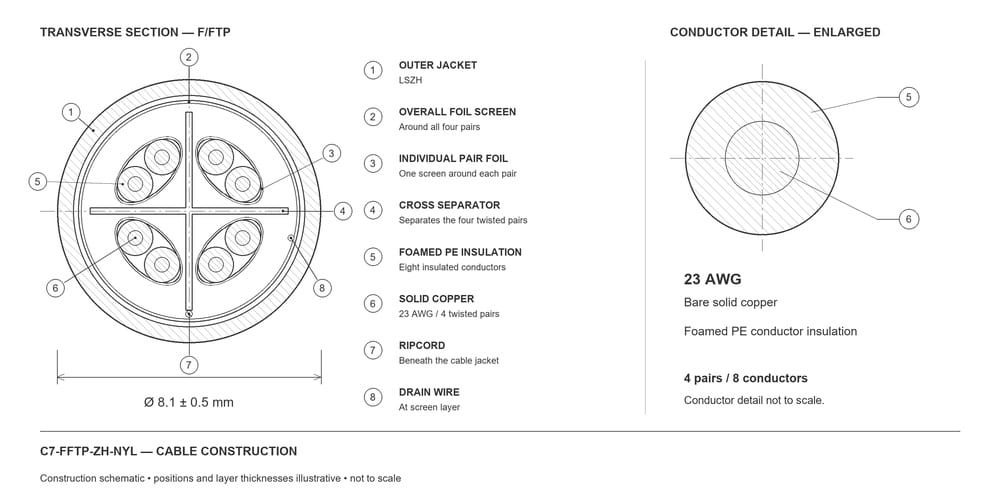

  • High-performance DTECH® Cat 7 1000 MHz F/FTP fully shielded data cable, engineered with an overall foil and individually screened pairs to maximise EMI protection, reduce crosstalk, and ensure superior signal integrity.
  • Supports full 10GBase-T Ethernet speeds up to 100 metres, ensuring fast and reliable data transmission.
  • Compatible with PoE++ technology, allowing for power delivery alongside data for efficient device operation.
  • Low Smoke Zero Halogen (LSZH) construction minimizes harmful emissions, making it safer for indoor environments.
  • Designed for Data centres and other critical infrastructure deployment.
3RD PARTY COMPLIANCE
CE Marked

Conformity Europe.

RoHS Compliant

Compliant Product.

DTECH® Warranty

30 YR System Warranty.

CPR Eca

Euroclass 50575.

Category7Shielding TypeF/FTP
Jacket MaterialLSZHCore InsulationFoamed PE
Conductor MaterialPure Bare Solid CopperWire Gauge23AWG
Number of Conductors4 PairsCable Outer Diameter (mm)8.1 ± 0.5
Rated Bandwidth (MHz)1000NVP (%)79
Data Transmission10GBase-T up to 90MPoE GradeType 4 (PoE++): Classes 7–8, delivering up to 90.0 W
EnvironmentInternalOperating Temperature (°C)-20 to 75
Installation Temp (°C)-20 to 60Max Pull Load (N)100
Min Bend Radius Installation8 × ODMin Bend Radius Installed4 × OD
StandardISO/IEC 11801, ANSI/TIA-568.2-DRoHS ConformityYes
Reaction to Fire (EN 13501-6)DcaSmoke Development (EN 13501-6)s2
Flaming Droplets (EN 13501-6)d2Acidity (EN 13501-6)a2
CE MarkingYesCable Length1000ft (305m)
Packaging MethodReel
Technical Datasheet
Certificate of Conformity
Product Installation Guides
HDBASET SVG LOGO
Alliance Member

As a member of the HDBaseT® Alliance, DTECH® products comfortably support the latest HDBaseT standards — engineered for next-gen homes and buildings.

System Architecture

Built for residential, commercial and industrial environments, DTECH XG® system architecture guarantees full 10GbE performance from end to end.
