Quick-Lock
Class Ea

DTECH® XG® Cat 6/6a (Quick-Lock) Toolless STP Keystone Jack Metal 22-24AWG

DTECH® XG® Cat 6/6a STP keystone jack with a quick-lock toolless design and metal body. Independently certified to Class Ea by EC with headroom beyond requirements, in an ultra-short form for high-density patching.

MPN

MC10G-TLF-QL

Category

6 / 6a

Shielded

Yes

Wiring Specification

T568A / T568B

Termination Type

IDC (Toolless)

PoE Suitable

PoE++

Use Cases

High EMI Zones, Wall Outlets, Patch Panels, Structured Cabling

KEY FEATURES

High Performance Connectivity

Tool-FreeNo Tools NeededTool-FreeNo Tools NeededIDCFast On-Site TermIDCFast On-Site TermCat 6AFuture-ProofCat 6AFuture-ProofQuick-LockFast & TidyQuick-LockFast & TidyShieldedInterference-FreeShieldedInterference-FreePoE++Power & DataPoE++Power & Data
Available Online
£2.90 / Pack
£3.48 inc. VAT
Add to Project Enquiry
UK Distribution Centre
Ready for Immediate Dispatch
Order cut-off: 2:30pm
UK Stocked Fully Tracked DTECH® Direct
Available Online
£2.90 / Pack
£3.48 inc. VAT
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS
  • Industry-leading DTECH® XG® STP Keystone Jack module for Cat 6 / 6a, engineered to deliver exceptional performance with headroom beyond Class Ea requirements.
  • Independently certified for Class Ea compliance by EC, ensuring verified, standards-compliant performance.
  • Ultra short form factor enables installation in the most space-constrained environments, ideal for high-density patching applications.
  • Innovative QuickLock mechanism provides a secure termination without the need for zip ties, significantly reducing installation time.
  • Advanced internal PCB design with full shielding minimises NEXT, FEXT and return loss, providing superior signal integrity and stability in high-interference environments.
  • Suitable for 22–24AWG solid conductors and 23-24 stranded conductors, delivering secure, consistent and reliable IDC termination.
  • Tool free design and clearly marked for both T568A and T568B standards for quick terminations.
  • Supplied with adhesive copper strips for termination with shielded cable.
3RD PARTY COMPLIANCE
CE Marked

Conformity Europe.

RoHS Compliant

Compliant Product.

ISO/IEC Class EA

Rated Product.

DTECH® Warranty

30 YR System Warranty.

Connector TypeRJ45 8P8CShieldingYes
Termination TypeIDC PunchdownWiring SpecificationT568A / T568B
locking MechanismQuick-Lock MechanismForm FactorUltra Low-Profile
Tool-FreeYesInsertion MethodClip-In
Contact Compatibility22 to 24AWG (0.45mm – 0.65mm)Cable OD5.0mm to 8.5mm
RJ45 Contact MaterialPhosphor Bronze, 50µ Gold PlatedIDC MaterialPhosphor Bronze Tin Plated
Module MaterialZinc AlloyMating Durability750 Times Min
Contact Resistance20 MΩ MAXInsulation Resistance500 MΩ MIN @ 500V DC
Current Rating1.5APoEPoE++

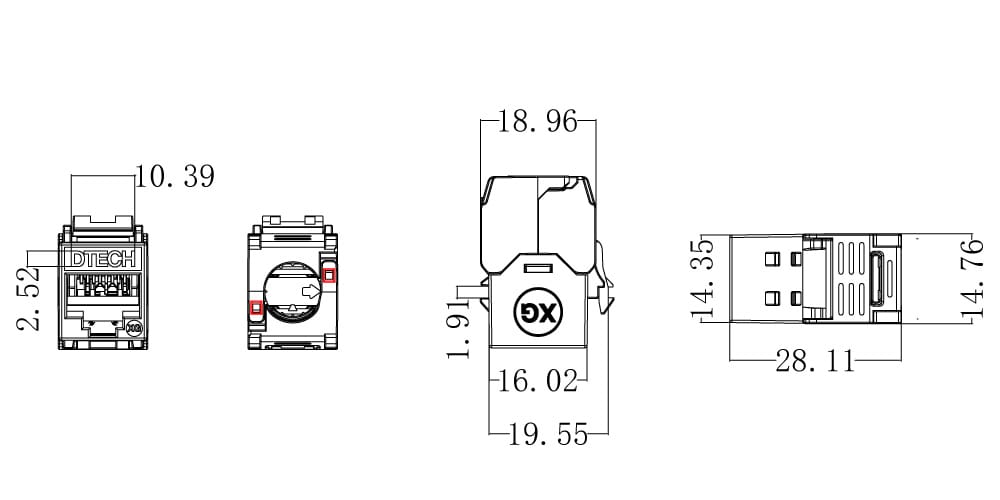

Operating Temperature-10°C to +60°CLength28.11mm
Width14.76mmHeight19.55mm
StandardISO 11801 Class EARoHS ConformityYes
CE MarkingYes
Technical Datasheet
Certificate of Conformity
Product Installation Guides
