High Performance Connectivity
HDBaseT Recommended.
Rated Product.
30 YR System Warranty.

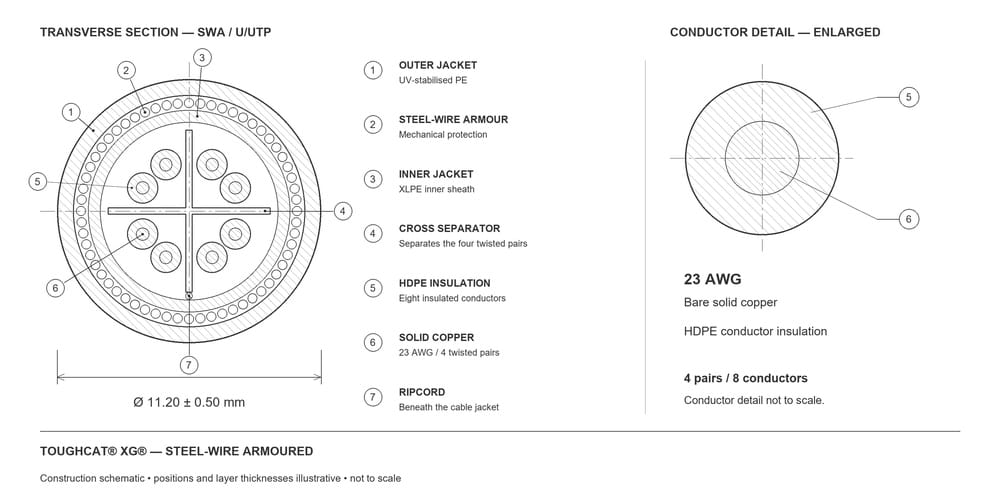

| Category | 6a up to 70m | Shielding Type | U/UTP |
| Jacket Material | Waterproof PE | Core Insulation | HDPE |
| Conductor Material | Pure Bare Solid Copper | Wire Gauge | 23AWG |
| Number of Conductors | 4 Pairs | Cable Outer Diameter (mm) | 11.20 ± 0.50 |
| Rated Bandwidth (MHz) | 500 | NVP (%) | 69 |
| Data Transmission | 10GBase-T up to 90M | PoE Grade | Type 4 (PoE++): Classes 7–8, delivering up to 90.0 W |
| Environment | SWA Burial | Operating Temperature (°C) | -20 to 90 |
| Installation Temp (°C) | -20 to 60 | Max Pull Load (N) | 360 |
| Min Bend Radius Installation | 20 × OD | Min Bend Radius Installed | 16 × OD |
| Inner Jacket Material | LSZH Flame Retardant | Nominal OD Over Inner (mm) | 7.1 ± 0.15 |
| Armouring | Galvanised Steel Wire | Nominal OD Over Armouring (mm) | 8.9 |
| Standard | ISO/IEC 11801, ANSI/TIA-568.2-D | Euroclass | Fca |
| RoHS Conformity | Yes | CE Marking | Yes |
| Cable Length | Custom | Packaging Method | Reel |
As a member of the HDBaseT® Alliance, DTECH® products comfortably support the latest HDBaseT standards — engineered for next-gen homes and buildings.
Built for residential, commercial and industrial environments, DTECH XG® system architecture guarantees full 10GbE performance from end to end.
