LSZH
Belden Alternative

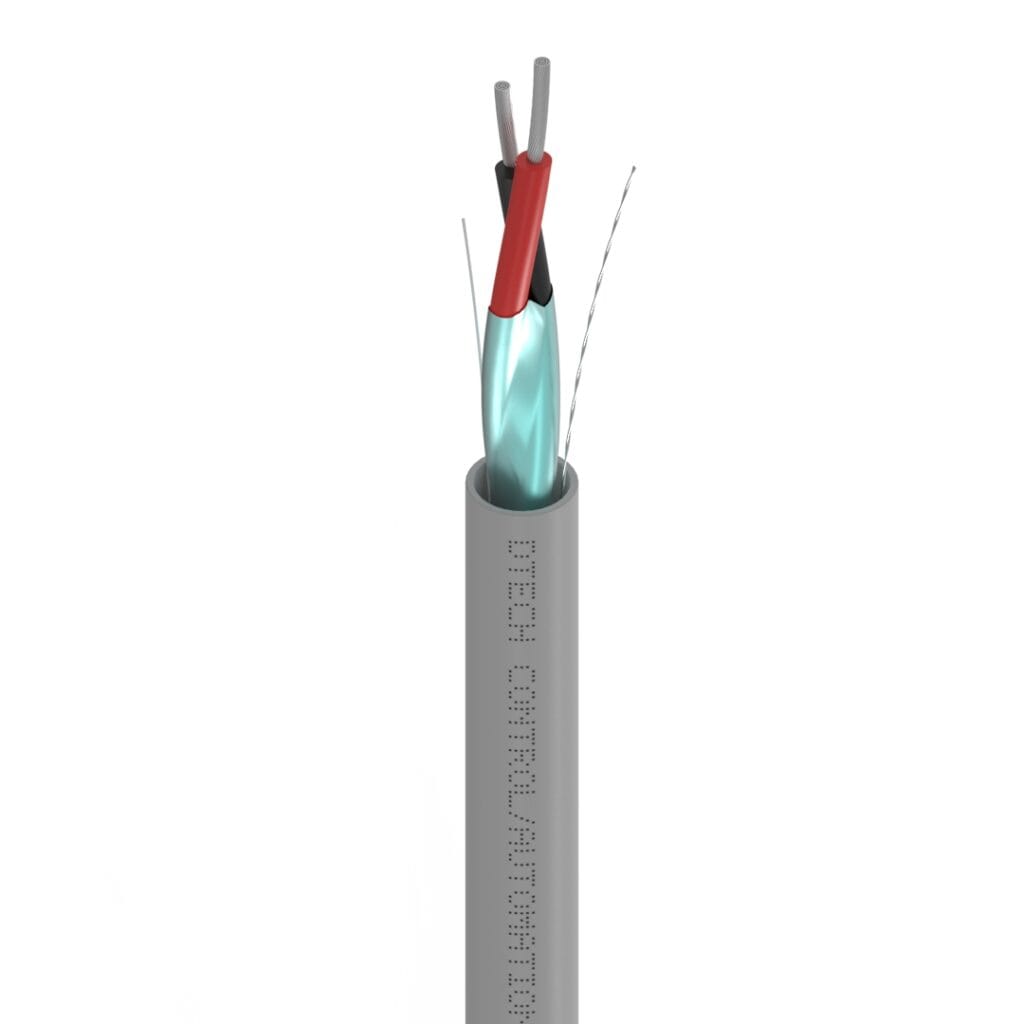

DTECH® 9501 1 Pair 24AWG Control Cable (Belden Alt) LSZH Grey

DTECH® 9501 single-pair 24AWG control cable with tinned copper conductors and an LSZH jacket. A Belden alternative for reliable signal and control wiring in offices, public spaces and commercial buildings needing low-smoke fire safety.

MPN

DT-9501-LSZH

Construction

1 Pair

Jacket Material

LSZH (Low Smoke Zero Halogen)

Euroclass

Eca

Environment

Internal

Use Cases

Signal & Control, Instrumentation, Commercial Fit-Out

KEY FEATURES

High Performance Connectivity

ControlMulti-Pair ControlControlMulti-Pair ControlOEMTrusted EquivalentOEMTrusted EquivalentLSZHSafer in FireLSZHSafer in FireInternalIndoor RatedInternalIndoor Rated
Available Online
£31.11 / Reel
£37.33 inc. VAT
Add to Project Enquiry
UK Distribution Centre
Ready for Immediate Dispatch
Order cut-off: 2:30pm
UK Stocked Fully Tracked DTECH® Direct
Available Online
£31.11 / Reel
£37.33 inc. VAT
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS
  • DTECH® 9501 1 pair 24AWG LSZH control cable designed for reliable signal and control wiring.
  • Low Smoke Zero Halogen (LSZH) sheath significantly reduces toxic gas and smoke emission in the event of fire, making it ideal for use in public spaces, offices and commercial buildings.
  • 24AWG stranded tinned copper conductor gauge provides consistent signal integrity across control and low-voltage applications, suitable for a wide range of system integration deployments.
  • Overall foil shield with drain wire provides effective EMI protection, ensuring stable and reliable signal transmission in electrically noisy environments.
  • Well suited for RS-232, RS-485, AMX and other control system wiring, as well as alarm signalling, access control and building automation applications.
3RD PARTY COMPLIANCE
CE Marked

Conformity Europe.

RoHS Compliant

Compliant Product.

DTECH® Warranty

30 YR System Warranty.

CPR Eca

Euroclass 50575.

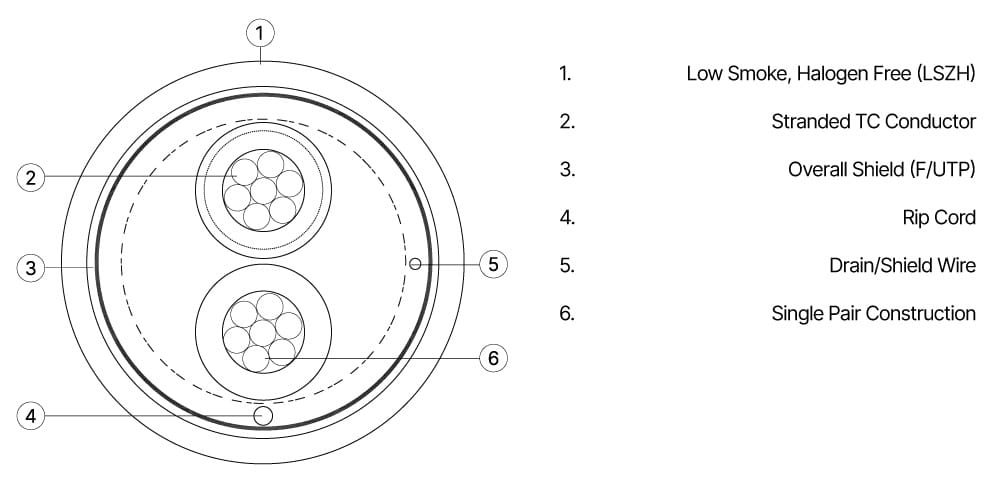

Number of Pairs1Conductor MaterialTinned Copper
Conductor Size24AWG (7/0.20mm)ScreenAluminium Foil (100% Coverage)
Jacket MaterialLSZHJacket ColourGrey
EnvironmentInternalCable Diameter (mm)4.0 ± 0.2
Min Bend Radius10 × ODOperating Temperature-20°C to +70°C
Weight21 kg/kmVoltage Rating450/750V
Nominal Conductor Resistance<86.2 Ω/kmInsulation Resistance>200 MΩ.M
Capacitance Core to Core131 pF/m ± 25Capacitance Core to Screen243 pF/m ± 40
RoHS ConformityYesCE MarkingYes
