LSZH
Belden Alternative

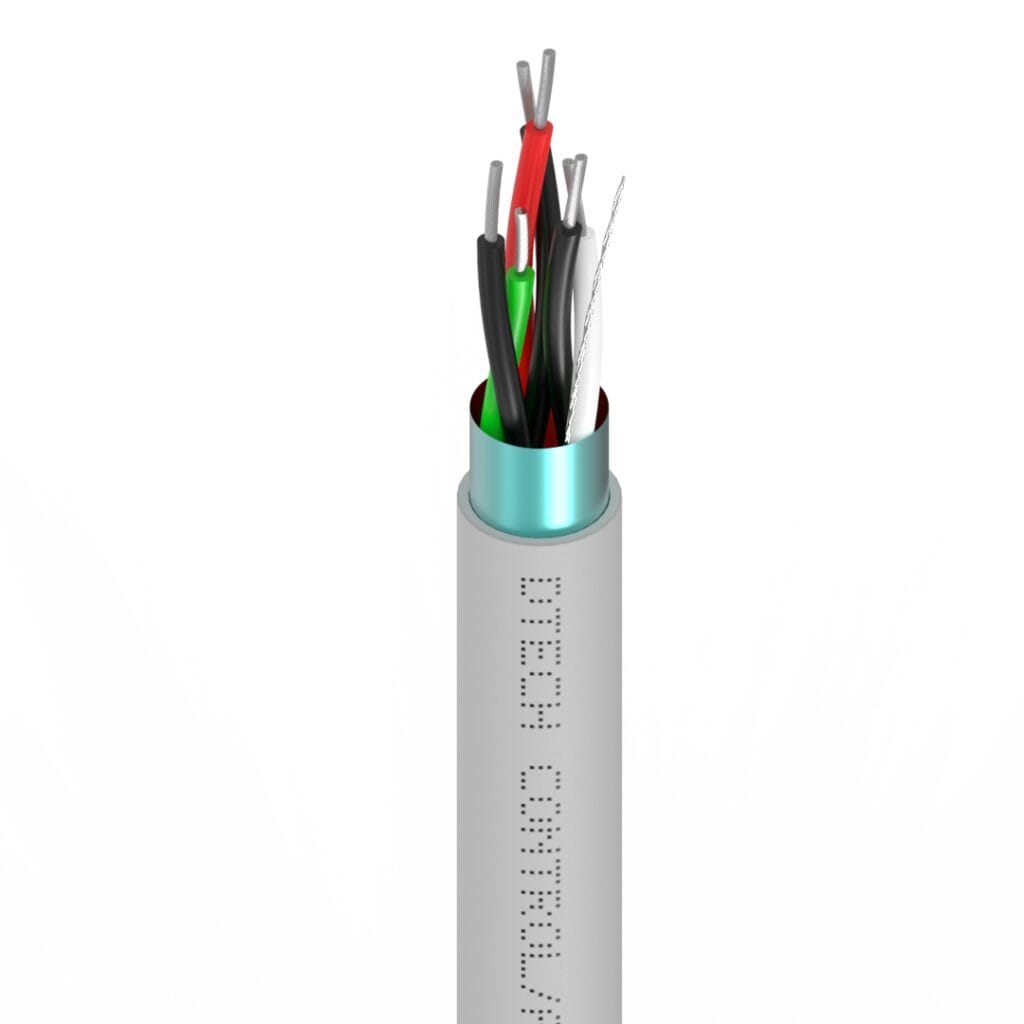

DTECH® 9503 3 Pair Shielded 24AWG Control Cable (Belden Alt) LSZH Grey

DTECH® 9503 three-pair shielded 24AWG control cable with tinned copper conductors and an LSZH jacket. Screening guards signal integrity, making this Belden alternative suited to control and instrumentation wiring in commercial and public buildings.

MPN

DT-9503-LSZH

Construction

3 Pair

Jacket Material

LSZH (Low Smoke Zero Halogen)

Euroclass

Eca

Environment

Internal

Use Cases

Signal & Control, Instrumentation, Commercial Fit-Out

KEY FEATURES

High Performance Connectivity

ControlMulti-Pair ControlControlMulti-Pair ControlOEMTrusted EquivalentOEMTrusted EquivalentLSZHSafer in FireLSZHSafer in FireInternalIndoor RatedInternalIndoor Rated
Available Online
£78.54 / Reel
£94.25 inc. VAT
Add to Project Enquiry
UK Distribution Centre
Ready for Immediate Dispatch
Order cut-off: 2:30pm
UK Stocked Fully Tracked DTECH® Direct
Available Online
£78.54 / Reel
£94.25 inc. VAT
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS
  • DTECH® 9503 3 pair 24AWG LSZH control cable designed for reliable signal and control wiring.
  • Low Smoke Zero Halogen (LSZH) sheath significantly reduces toxic gas and smoke emission in the event of fire, making it ideal for use in public spaces, offices and commercial buildings.
  • 24AWG stranded tinned copper conductor gauge provides consistent signal integrity across control and low-voltage applications, suitable for a wide range of system integration deployments.

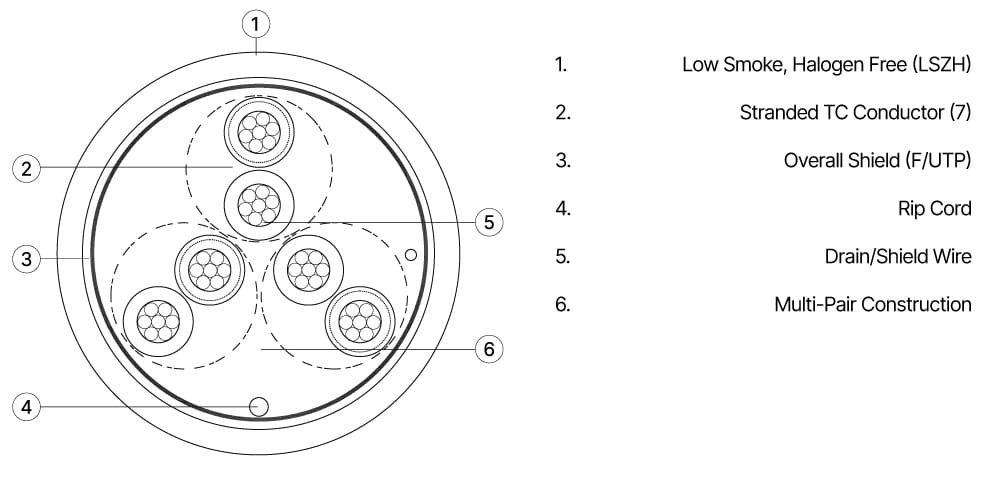

  • Overall foil shield with drain wire provides effective EMI protection, ensuring stable and reliable signal transmission in electrically noisy environments.
  • Well suited for RS-232, RS-485, AMX and other control system wiring, as well as alarm signalling, access control and building automation applications.
3RD PARTY COMPLIANCE
CE Marked

Conformity Europe.

RoHS Compliant

Compliant Product.

DTECH® Warranty

30 YR System Warranty.

CPR Eca

Euroclass 50575.

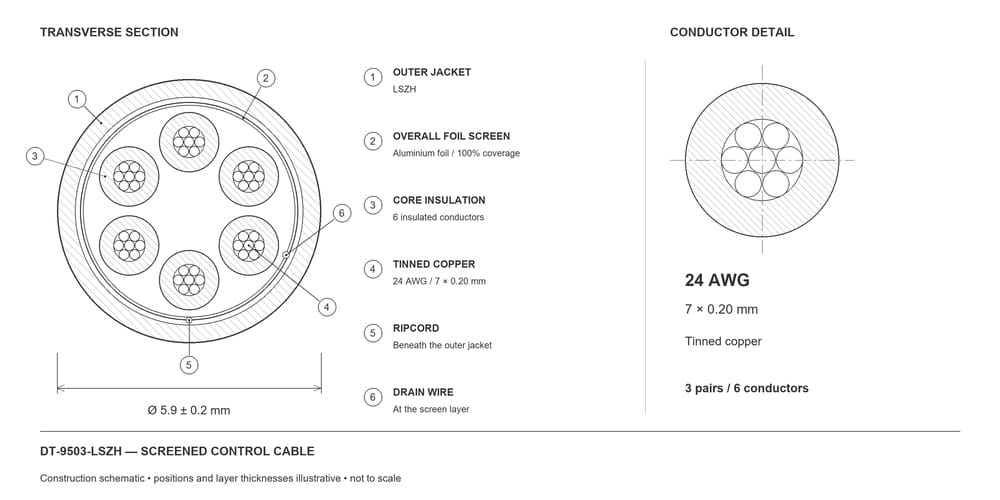

Number of Pairs3Conductor MaterialTinned Copper
Conductor Size24AWG (7/0.20mm)ScreenAluminium Foil (100% Coverage)
Jacket MaterialLSZHJacket ColourGrey
EnvironmentInternalCable Diameter (mm)5.9 ± 0.2
Min Bend Radius10 × ODOperating Temperature-20°C to +70°C
Weight66 kg/kmVoltage Rating450/750V
Nominal Conductor Resistance<86.2 Ω/kmInsulation Resistance>200 MΩ.M
Capacitance Core to Core98 pF/m ± 25Capacitance Core to Screen164 pF/m ± 40
RoHS ConformityYesCE MarkingYes
Technical Datasheet
Certificate of Conformity
Product Installation Guides
