DTECH® 4 Pin D Code M12 Male Angled to RJ45 - Cat 5e SF/UTP PVC

DTECH® 4 Pin D Code M12 Male Angled to RJ45 – Cat 5e SF/UTP PVC

MPN IND-D-M12MA-RJ45 Category Features , , Brand:
Grand total
  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® preassembled industrial patch leads – manufactured to order with custom lengths for precise industrial Ethernet.
  • 4-pin D-code Male angled to RJ45 connectors with a fully shielded construction and gold-plated contacts, rated at 250V and 4A, ensuring reliable connectivity across industrial Ethernet and fieldbus applications.
  • Cat 5e SF/UTP combines an overall braided screen and foil shield for effective EMI protection in industrial environments.
  • Oil, Notch, and Abrasion resistant PVC jacket provides superior durability for factory floor deployment.
  • Well suited for PROFINET, EtherCat, EtherNet/IP, Modbus TCP and general-purpose 100 Mbps industrial Ethernet deployments in factory automation, machine building, and process control.
  • Supports 100 Mbps Ethernet transmission in compliance with IEC 61076-2-101.
Technical Product Information
Connectors
Connector AM12 D Code Male AngledConnector BIndustrial RJ45
CouplingThreadedRated Voltage250V AC/DC
CodingDRated Current4A
Contact Resistance≤10 mΩPollution Degree3
Insulation Resistance≥100 MΩTemperature Range-40°C to +80°C
Shell MaterialBrass Nickel PlatedProtection GradeIP67
Contact MaterialBrass Gold PlatedMating Cycles≥500
Insert MaterialPA66+GF UL94 BlackSealingRubber
Cable
Number of Pairs2 Pair Terminated (2 Pair Redundant)Conductor MaterialBare Stranded Copper
Conductor Construction7/0.16 ± 0.008Insulation MaterialHDPE
Insulation Thickness (mm)0.21Insulation OD (mm)0.90 ± 0.05
Binder MaterialMylar TapeShieldingSF/UTP
Shielding MaterialAl/Mylar TapeShielding Overlap25%
Braid MaterialAluminum Magnesium Alloy WireBraid Construction16/8/0.12 ± 0.008
Braid Coverage80%Jacket MaterialOil, Notch, Abrasive Resistant PVC
Jacket Thickness (mm)0.65Jacket OD (mm)6.3 ± 0.20
Insulation Spark Test (20°C)2.50kVConductor Resistance Max (20°C)140 ohm/km
Insulation Resistance100 MΩ·kmData Transmission100Base-TX
Bending Radius4 / 8 x Diameter (Fixed / Flexing)Operating Temperature-20°C to +90°C
RoHS ConformityYesCE MarkingYes

Frequently Bought Together ->

DTECH® 8 Pin XG RJ45 Industrial Patch Lead – Cat 5e SF/UTP PVC

Enquire

DTECH® 4 Pin/RJ45 Industrial Connector Tool-Free Metal

Original price was: £14.95.Current price is: £14.95. Ex. Vat

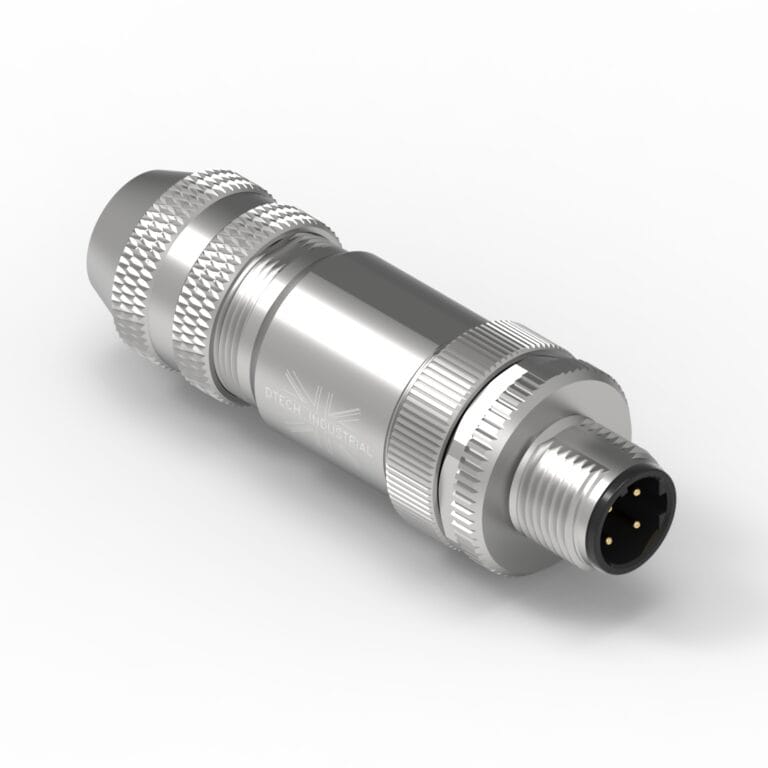

DTECH® M12 Male Metal Plug 4 Pin D-code PG9 (Screw)
