DTECH® 8 Pin XG RJ45 Industrial Patch Lead - Cat 6a S/FTP PUR

DTECH® 8 Pin XG RJ45 Industrial Patch Lead – Cat 6a S/FTP PUR

MPN IND-6a-RJ45-RJ45-XG Category Features , , Brand:
Request Quote
  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® preassembled Cat 6a industrial patch leads – manufactured to order with custom lengths for precise high-speed Ethernet deployments.
  • Heavy duty industrial XG RJ45 connectors feature a robust metal housing with 360° shielding continuity and a secure locking mechanism, ensuring superior performance and protection in harsh environments.
  • Cat 6a S/FTP combines an overall braided screen with individually foiled pairs for exceptional EMI protection in electrically demanding environments.
  • Oil, notch, and abrasion resistant PUR jacket provides superior flexibility and durability for demanding factory floor and machine building deployments.
  • Well suited for high-bandwidth industrial Ethernet, machine vision, IIoT and general-purpose deployments in factory automation, machine building and process control.
  • Supports data transmission speeds of up to 10 Gbps in compliance with ISO/IEC 11801 Class Ea.
  • Equivalent to Siemens 6GK1901 series.
Technical Product Information
Connectors
Connector AIndustrial RJ45Connector BIndustrial RJ45
Connector Plating50µ GoldConnector Layout8 Pin
Enclosure MaterialZinc AlloyMating Durability500 Times
Cable Outlet180° cable outletWidth13.7mm
Height16mmDepth55mm
Operating Temperature-40°C to +85°CRelative Humidity95% (at 25°C, no condensation)
Protection GradeIP20PoEPoE++
Silicon-FreeYesStrain ReliefYes
RoHS ConformityYes
Cable
Number of Pairs4Conductor MaterialBare Stranded Copper
Conductor Construction7/0.20 ± 0.008Insulation MaterialFoamed PE
Insulation Thickness (mm)0.25Insulation OD (mm)1.32 ± 0.05
Binder MaterialMylar TapeShieldingS/FTP
Shielding MaterialAl/Mylar TapeShielding Overlap35%
Braid MaterialAluminum Magnesium Alloy WireBraid Construction16/8/0.12 ± 0.008
Braid Coverage80%Jacket MaterialPUR
Jacket Thickness (mm)0.80Jacket OD (mm)8.0 ± 0.3
Insulation Spark Test (20°C)2.50kVConductor Resistance Max (20°C)87.6 ohm/km
Insulation Resistance100 MΩ·kmData Transmission10GBase-T
StandardsISO 11801 Class Ea / ANSI/TIA-568.DCE MarkingYes

Frequently Bought Together ->

DTECH® 8 Pin X Code M12 Female to Male – Cat 6a S/FTP PUR

Enquire

DTECH® M12 Female to RJ45 Adaptor 8 Pin X-code

Original price was: £26.79.Current price is: £26.79. Ex. Vat

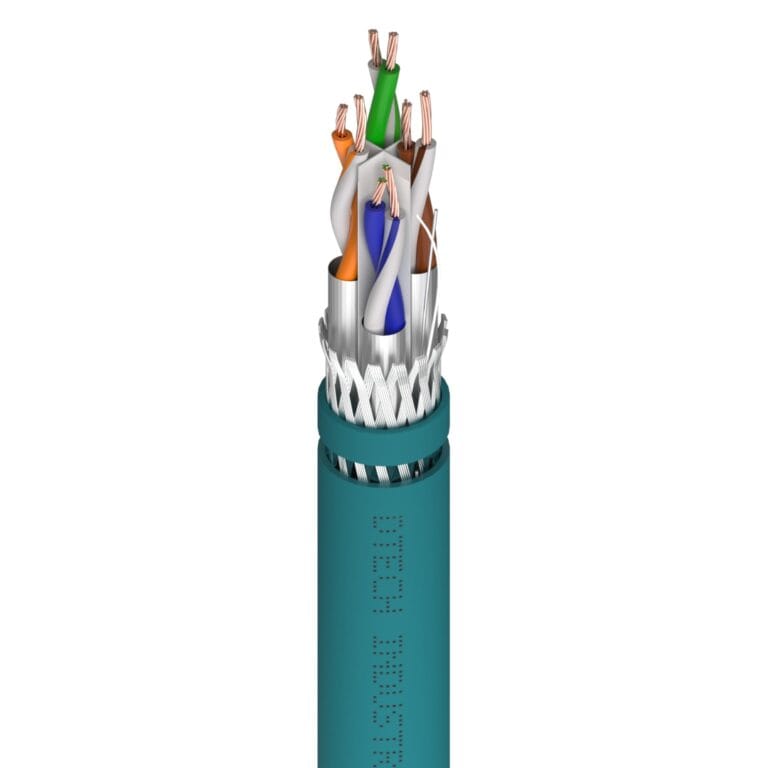

DTECH® Cat 6 S/FTP OFC Marine Grade PUR Teal

Enquire

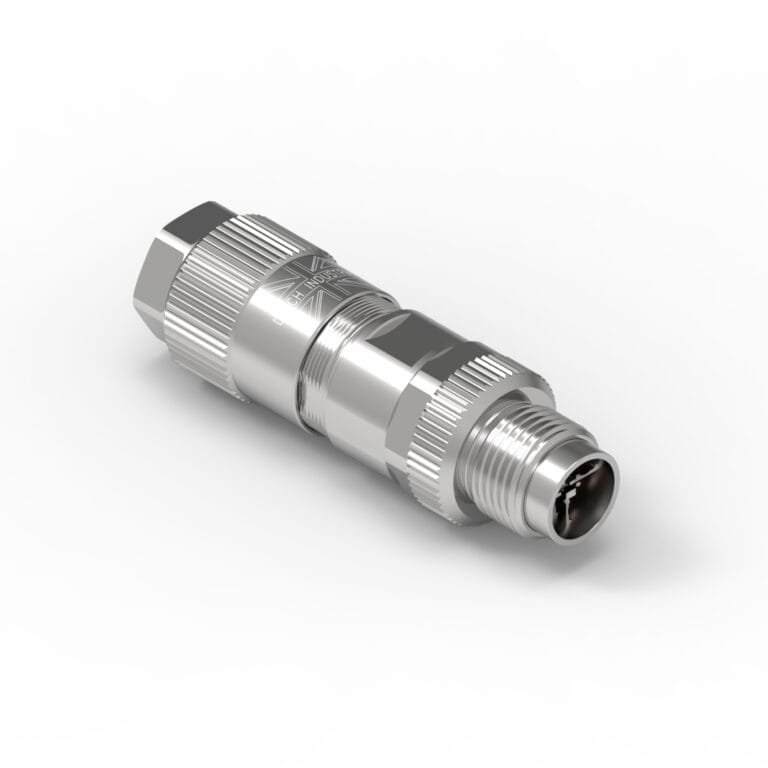

DTECH® M12 Male Metal Plug 8 Pin X-Code PG9 (IDC)
