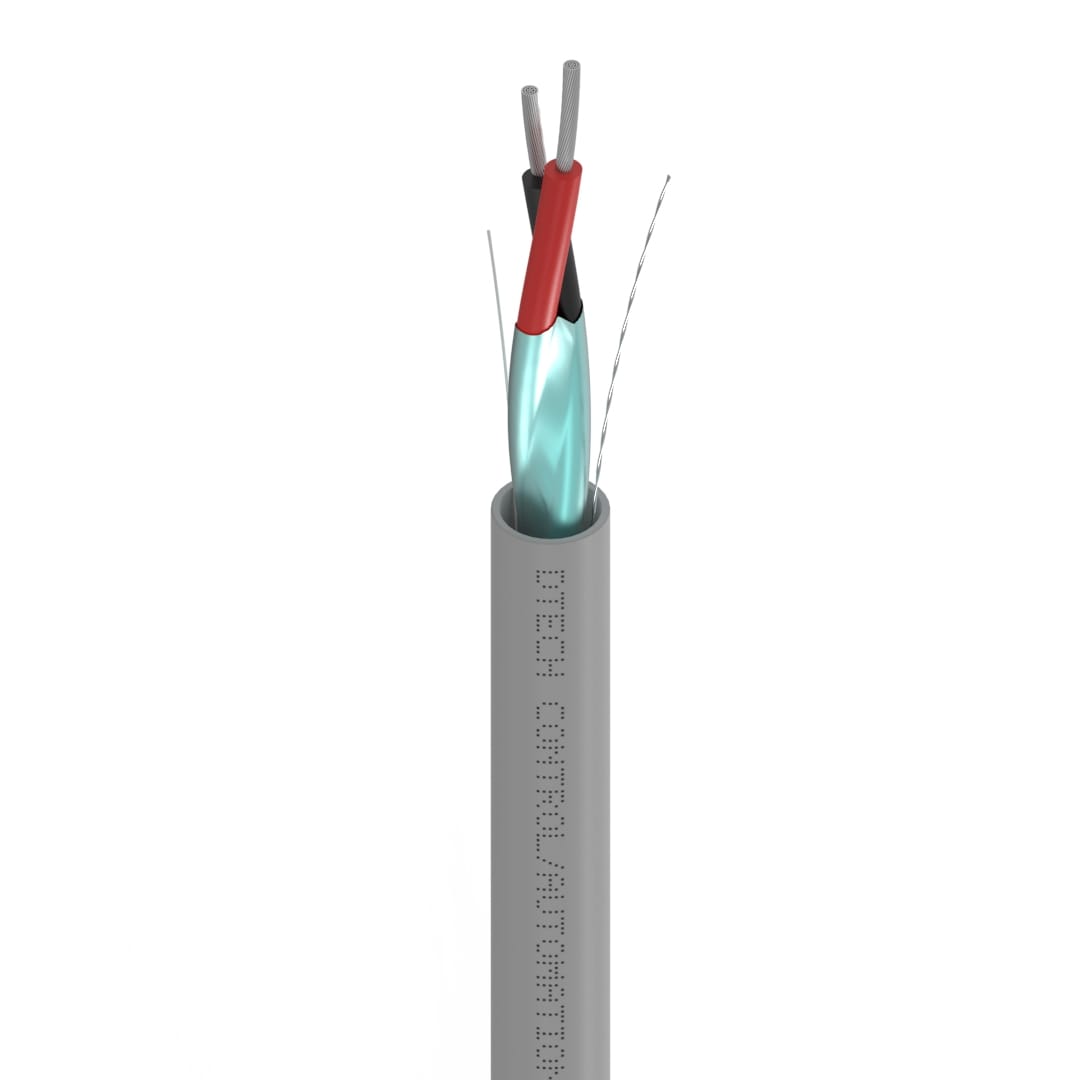

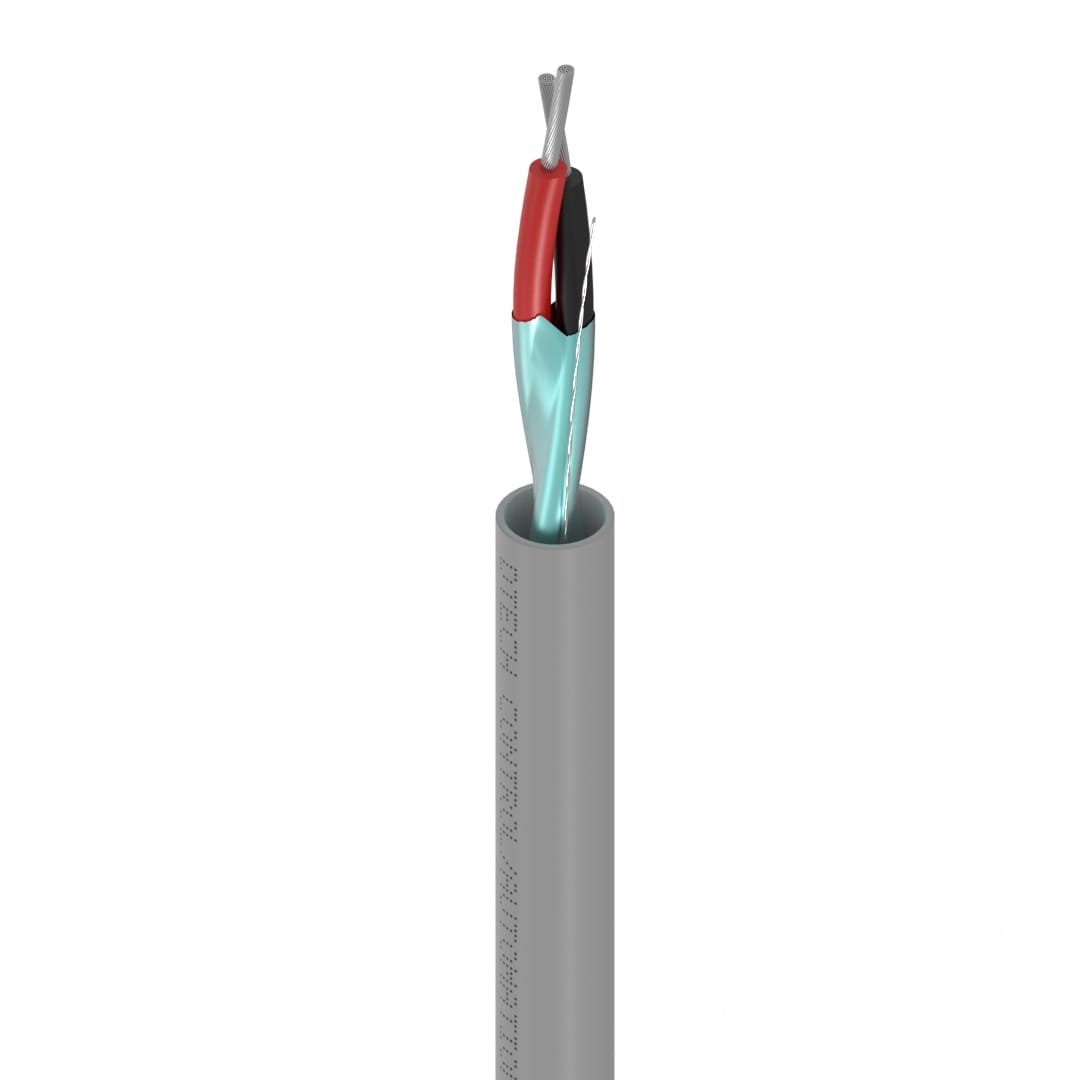

DTECH® 9501 1 Pair 24AWG LSZH Grey

Product Overview

DTECH® 9501 1 pair 24AWG LSZH control cable designed for reliable signal and control wiring.
Low Smoke Zero Halogen (LSZH) sheath significantly reduces toxic gas and smoke emission in the event of fire, making it ideal for use in public spaces, offices and commercial buildings.
24AWG stranded tinned copper conductor gauge provides consistent signal integrity across control and low-voltage applications, suitable for a wide range of system integration deployments.
Overall foil shield with drain wire provides effective EMI protection, ensuring stable and reliable signal transmission in electrically noisy environments.
Well suited for RS-232, RS-485, AMX and other control system wiring, as well as alarm signalling, access control and building automation applications.

Technical Product Information

Number of Pairs	1	Conductor Material	Tinned Copper
Conductor Size	24AWG (7/0.20mm)	Screen	Aluminium Foil (100% Coverage)
Jacket Material	LSZH	Jacket Colour	Grey
Environment	Internal	Cable Diameter (mm)	4.0 ± 0.2
Min Bend Radius	10 x OD	Operating Temperature	-20°C to +70°C
Weight	21 kg/km	Voltage Rating	450/750V
Nominal Conductor Resistance	<86.2 Ω/km	Insulation Resistance	>200 MΩ.M
Capacitance Core to Core	131 pF/m ± 25	Capacitance Core to Screen	243 pF/m ± 40
RoHS Conformity	Yes	CE Marking	Yes
