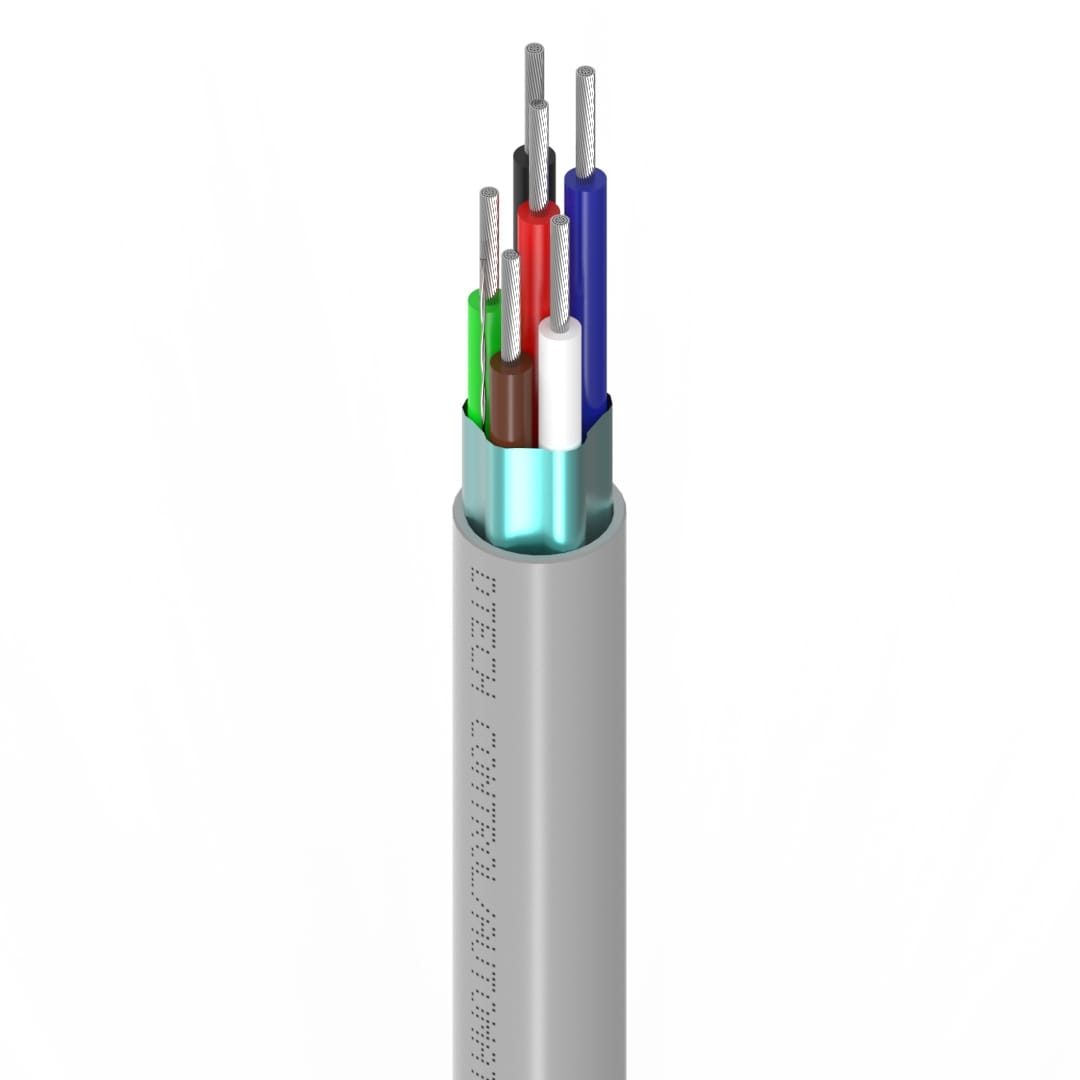

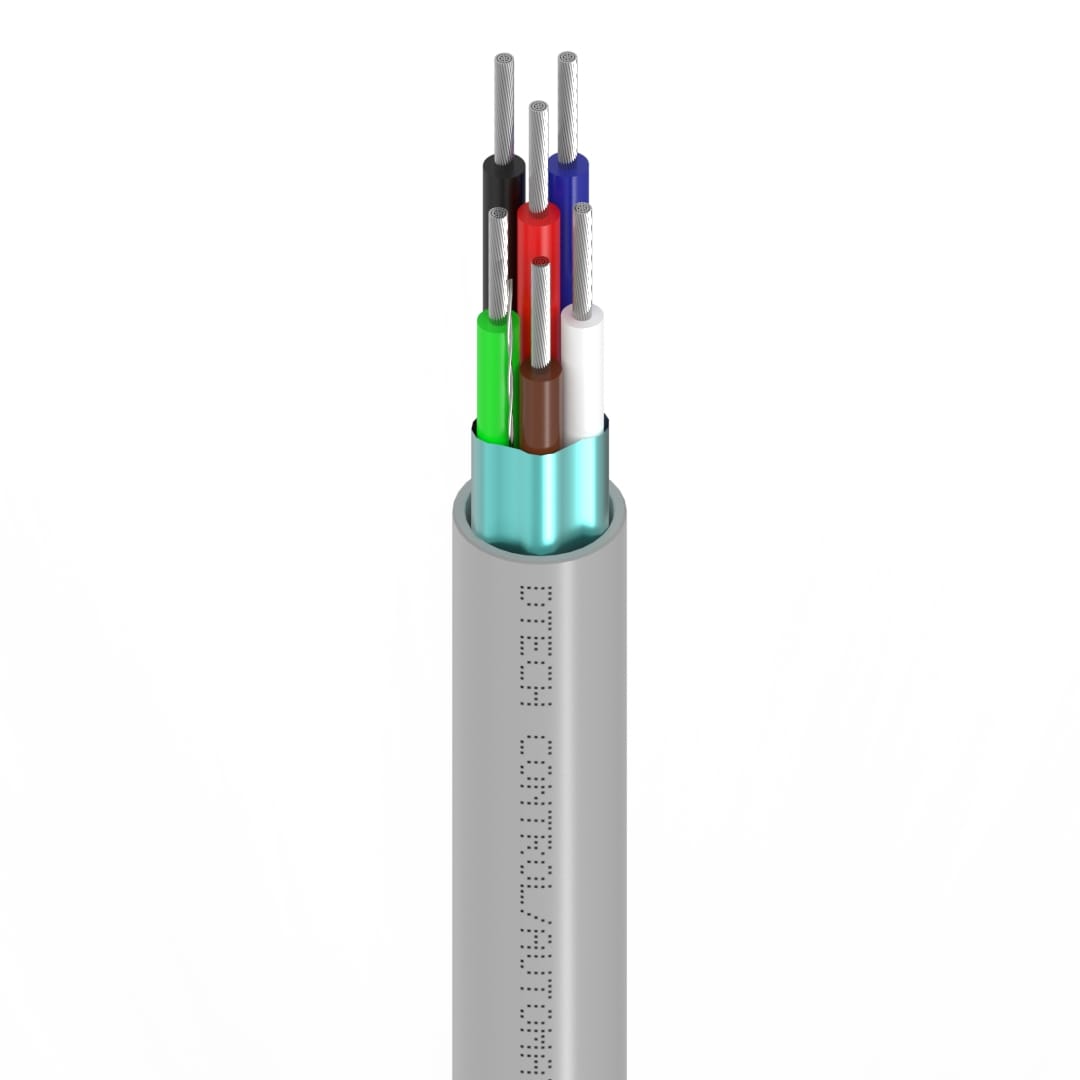

DTECH® 9536 6 Core 24AWG Control Cable (Belden Alt) LSZH Grey 100M

DTECH® 9536 six-core 24AWG control cable with tinned copper conductors and an LSZH jacket. A Belden alternative for flexible multi-core signal and control wiring across commercial, office and public-building installations.

MPN

DT-9536-LSZH

Construction

6 Pair

Jacket Material

LSZH (Low Smoke Zero Halogen)

Euroclass

Eca

Environment

Internal

Use Cases

Signal & Control, Instrumentation, Commercial Fit-Out

KEY FEATURES

High Performance Connectivity

ControlMulti-Pair ControlControlMulti-Pair ControlOEMTrusted EquivalentOEMTrusted EquivalentLSZHSafer in FireLSZHSafer in FireInternalIndoor RatedInternalIndoor Rated
Enquire
Contact Sales
Available for direct enquiry. Speak to our team for current supply, project pricing or a scheduled delivery.
Enquire Add to Project Enquiry
Contact Sales
Enquire
Contact Sales
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS
  • DTECH® 9536 6 core 24AWG LSZH control cable designed for reliable signal and control wiring.
  • Low Smoke Zero Halogen (LSZH) sheath significantly reduces toxic gas and smoke emission in the event of fire, making it ideal for use in public spaces, offices and commercial buildings.
  • 24AWG stranded tinned copper conductor gauge provides consistent signal integrity across control and low-voltage applications, suitable for a wide range of system integration deployments.
  • Overall foil shield with drain wire provides effective EMI protection, ensuring stable and reliable signal transmission in electrically noisy environments.
  • Well suited for RS-232, RS-485, AMX and other control system wiring, as well as alarm signalling, access control and building automation applications.
3RD PARTY COMPLIANCE
CE Marked

Conformity Europe.

RoHS Compliant

Compliant Product.

DTECH® Warranty

30 YR System Warranty.

CPR Eca

Euroclass 50575.

Number of Cores6Conductor MaterialTinned Copper
Conductor Size24AWG (7/0.20mm)ScreenAluminium Foil (100% Coverage)
Jacket MaterialLSZHJacket ColourGrey
EnvironmentInternalCable Diameter (mm)5.3 ± 0.2
Min Bend Radius10 × ODOperating Temperature-20°C to +70°C
Weight42 kg/kmVoltage Rating450/750V
Nominal Conductor Resistance<82.0 Ω/kmInsulation Resistance>200 MΩ.M
Capacitance Core to Core108 pF/m ± 25Capacitance Core to Screen213 pF/m ± 40
RoHS ConformityYesCE MarkingYes
