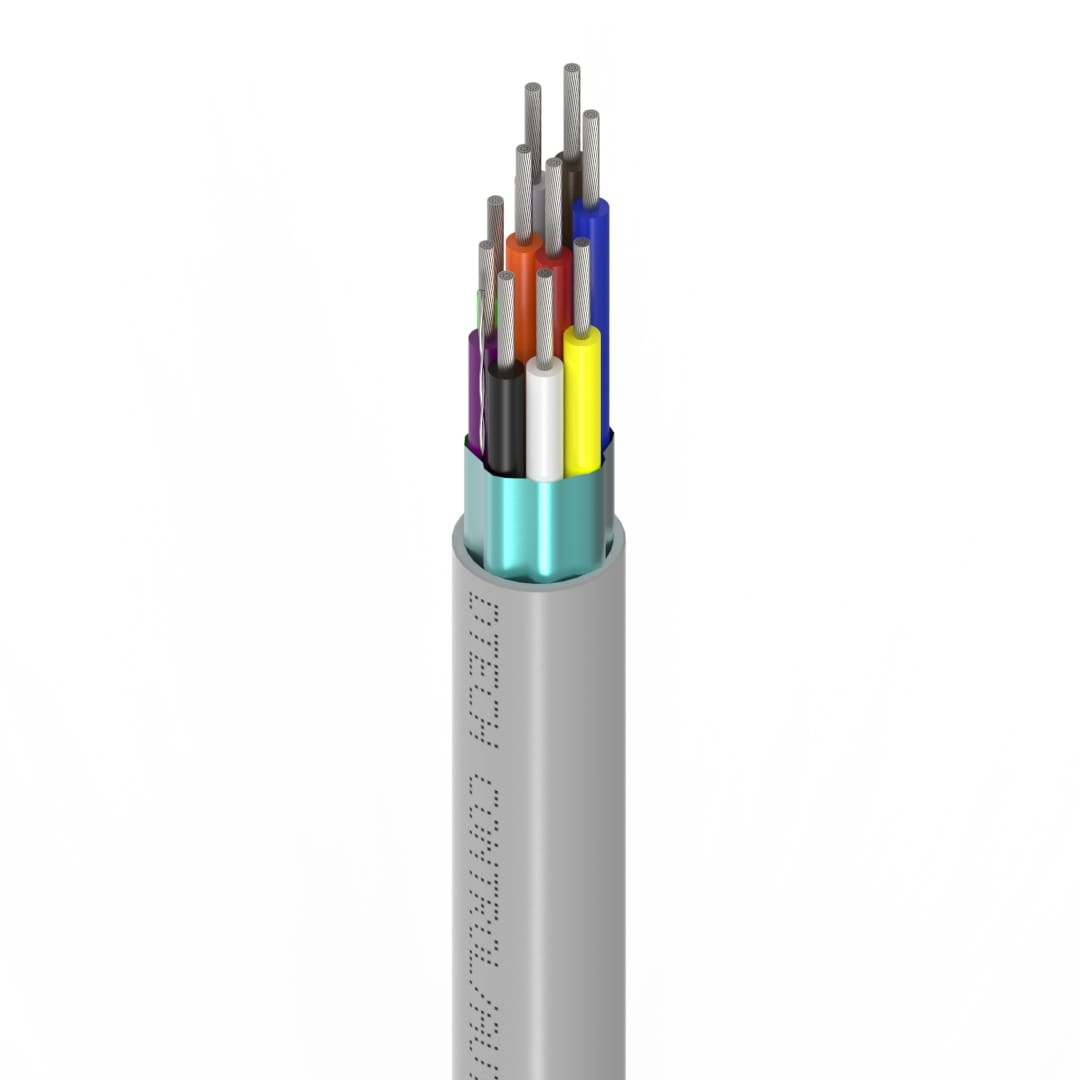

DTECH® 9540 10 Core 24AWG (Paxton Reader) LSZH Grey

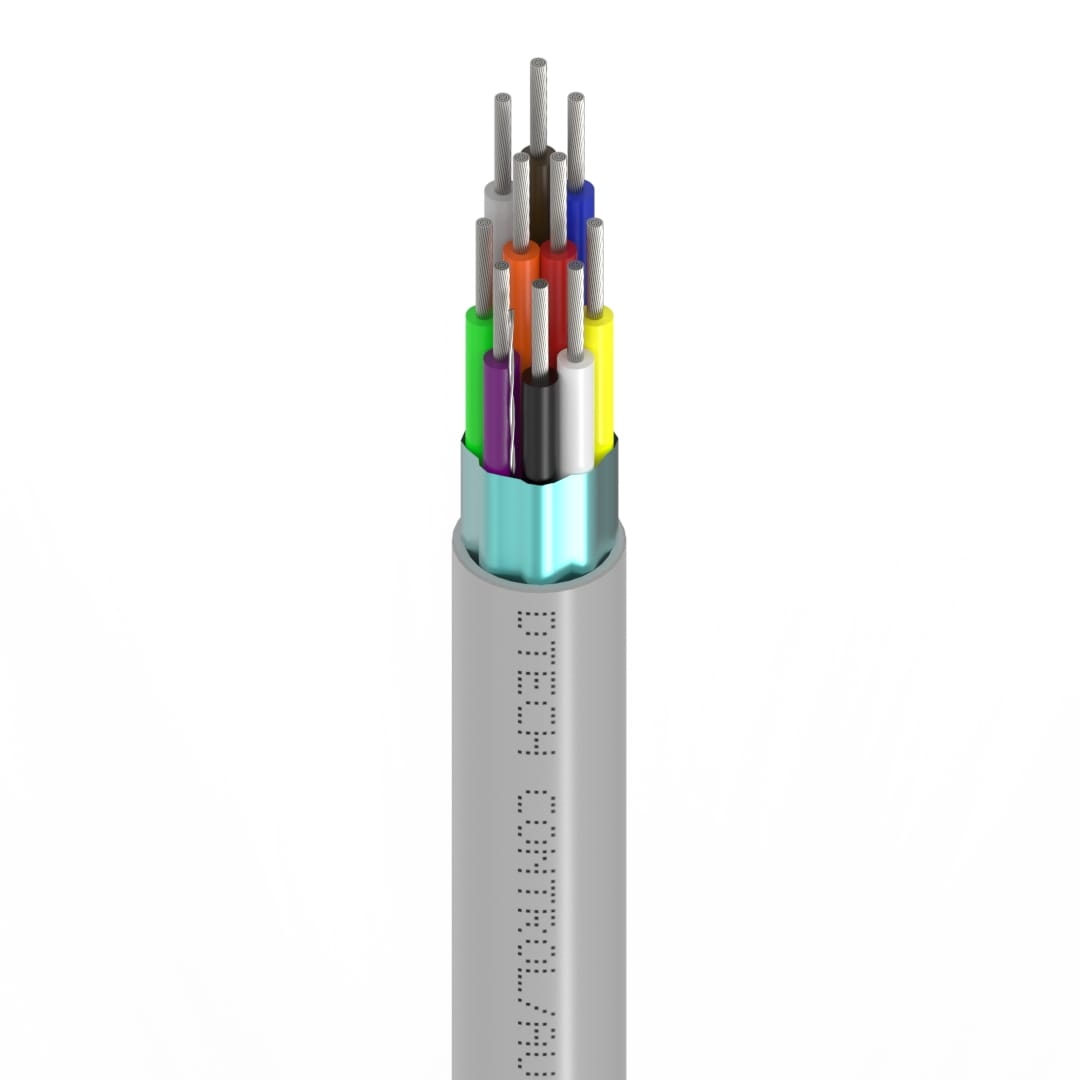

DTECH® 9540 10 Core 24AWG (Paxton Reader) LSZH Grey - Image 2

DTECH® 9540 10 Core 24AWG (Paxton Reader) LSZH Grey

MPN DT-9540-LSZH Categories , Features , Brand:
  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® 9540 10 core 24AWG LSZH control cable designed for reliable signal and control wiring.
  • Low Smoke Zero Halogen (LSZH) sheath significantly reduces toxic gas and smoke emission in the event of fire, making it ideal for use in public spaces, offices and commercial buildings.
  • 24AWG stranded tinned copper conductor gauge provides consistent signal integrity across control and low-voltage applications, suitable for a wide range of system integration deployments.
  • Overall foil shield with drain wire provides effective EMI protection, ensuring stable and reliable signal transmission in electrically noisy environments.
  • Well suited for RS-232, RS-485, AMX and other control system wiring, as well as alarm signalling, access control and building automation applications.
Technical Product Information
Number of Cores10Conductor MaterialTinned Copper
Conductor Size24AWG (7/0.20mm)ScreenAluminium Foil (100% Coverage)
Jacket MaterialLSZHJacket ColourGrey
EnvironmentInternalCable Diameter (mm)6.2 ± 0.2
Min Bend Radius10 x ODOperating Temperature-20°C to +70°C
Weight61 kg/kmVoltage Rating450/750V
Nominal Conductor Resistance<82.0 Ω/kmInsulation Resistance>200 MΩ.M
Capacitance Core to Core108 pF/m ± 25Capacitance Core to Screen213 pF/m ± 40
RoHS ConformityYesCE MarkingYes
