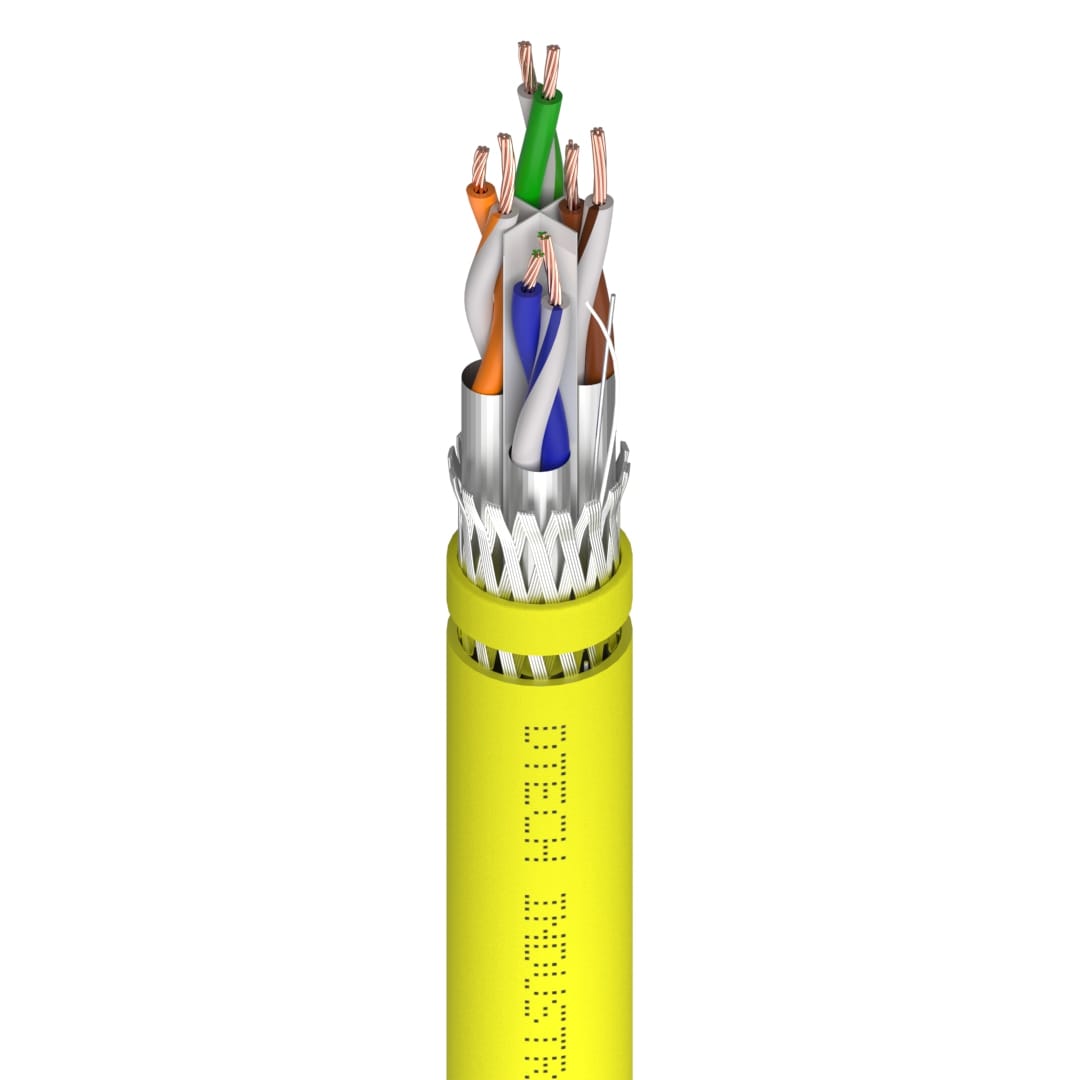

DTECH® Cat 6 S/FTP OFC Industrial Grade PUR Yellow

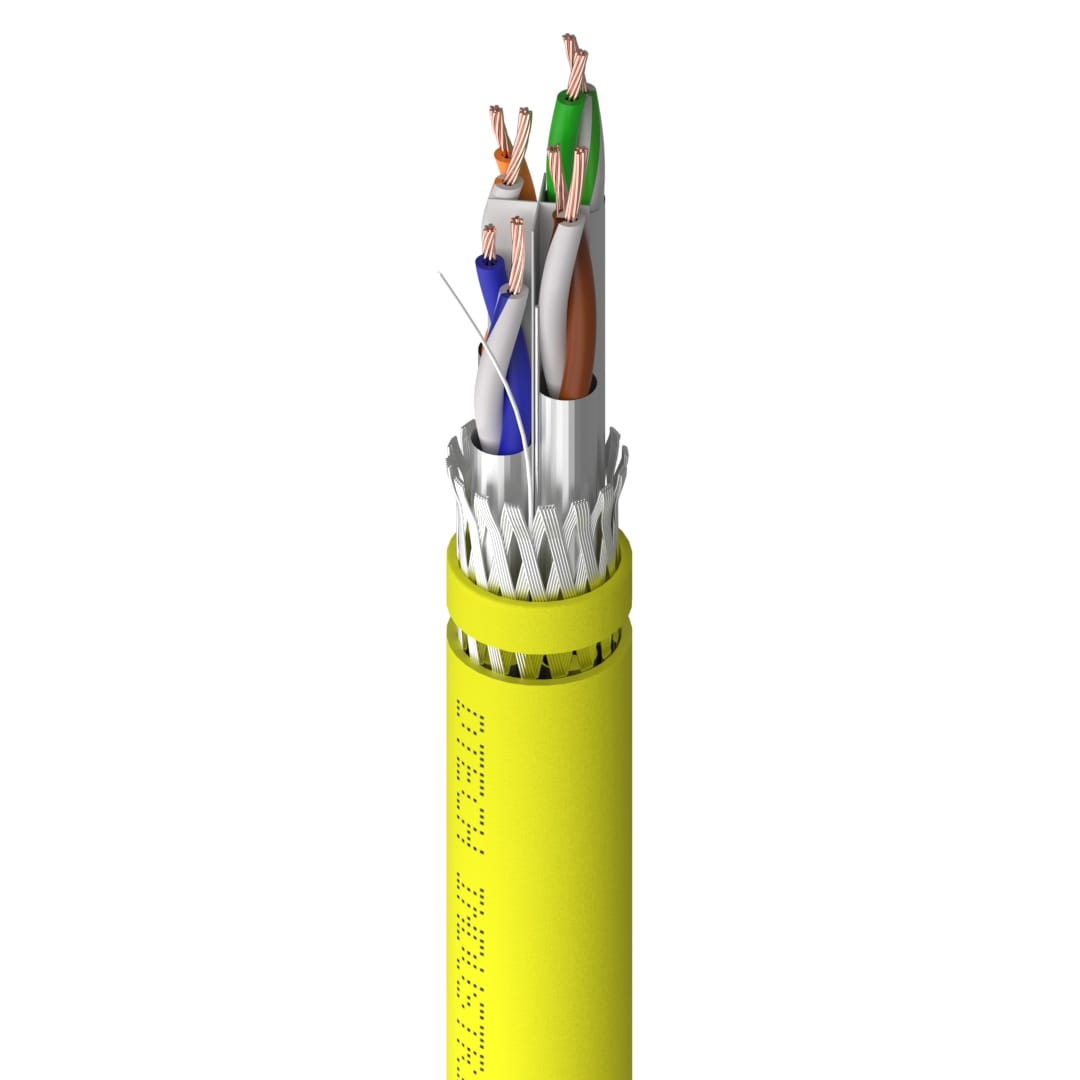

DTECH® Cat 6 S/FTP OFC Industrial Grade PUR Yellow - Image 2

DTECH® Cat 6 S/FTP OFC Industrial Grade PUR Yellow

MPN IND-C6-PUR-SF-YL Categories , Features , Brand:
Request Quote
  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® Cat 6 S/FTP marine grade industrial bulk cable designed for reliable Ethernet in demanding marine, factory floor and machine building installations.
  • S/FTP construction combines an overall braided screen with individually aluminium foiled pairs for exceptional EMI protection in electrically noisy industrial environments.
  • Highly flexible stranded OFC copper with internal cross separator protects individual pairs under continuous mechanical stress.
  • Oil, notch, and abrasion resistant halogen free PUR outer jacket provides superior durability and flexibility, resistant to mineral oil-based lubricants and chemicals for use in dry, damp and harsh oily environments.
  • Supports data transmission speeds of up to 1 Gbps at 250MHz in compliance with ISO/IEC 11801 Class E.
  • Well suited for cable chain and semi moving applications, EtherCAT, EtherNet/IP, PROFINET and general-purpose industrial Ethernet deployments.
Technical Product Information
Number of Pairs4Conductor MaterialBare Stranded Copper
Conductor Construction7/0.20 ± 0.008Insulation MaterialFoamed PE
Insulation Thickness (mm)0.25Insulation OD (mm)1.32 ± 0.05
Binder MaterialMylar TapeShieldingS/FTP
Shielding MaterialAl/Mylar TapeShielding Overlap25%
Braid MaterialAluminum Magnesium Alloy WireBraid Construction16/8/0.12 ± 0.008
Braid Coverage65%Jacket MaterialPUR
Jacket Thickness (mm)0.80Jacket OD (mm)8.0 ± 0.3
Spark Test for Insulation (DC)2.50kVConductor Resistance Max at 20°C87.6 ohm/km
Insulation Resistance100 MΩ·kmData Transmission1000Base-T @250MHz
StandardsISO 11801 Class E / ANSI/TIA-568.DBending Radius4 / 8 x Diameter (Fixed / Flexing)
Operating Temperature-20°C to +90°CRoHS ConformityYes
CE MarkingYes

Frequently Bought Together ->

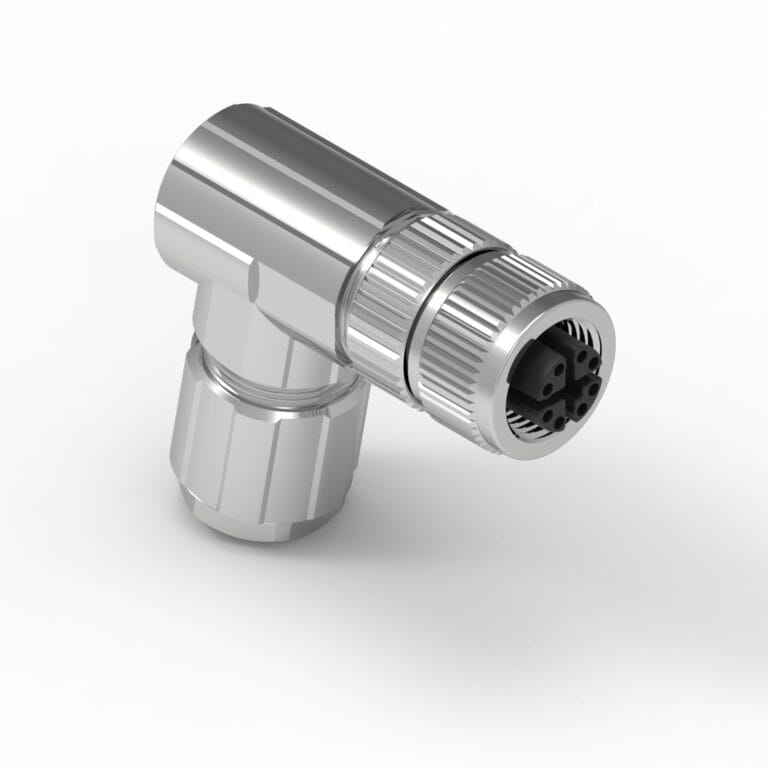

DTECH® M12 Angled Female Metal Plug 8 Pin X-Code PG9 (Solder)

Original price was: £28.99.Current price is: £28.99. Ex. Vat

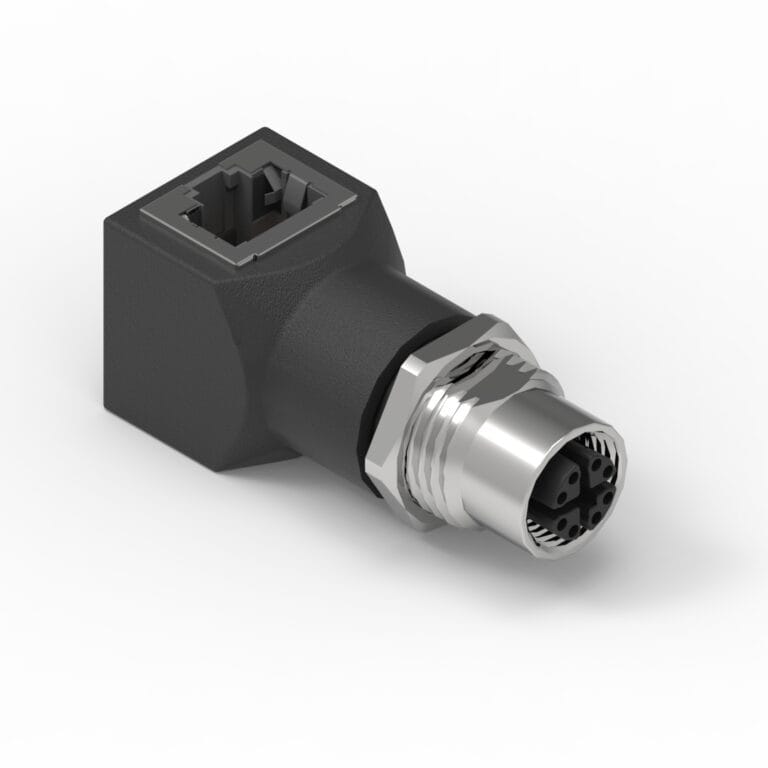

DTECH® M12 Angled Female to RJ45 Adaptor 8 Pin X-code
