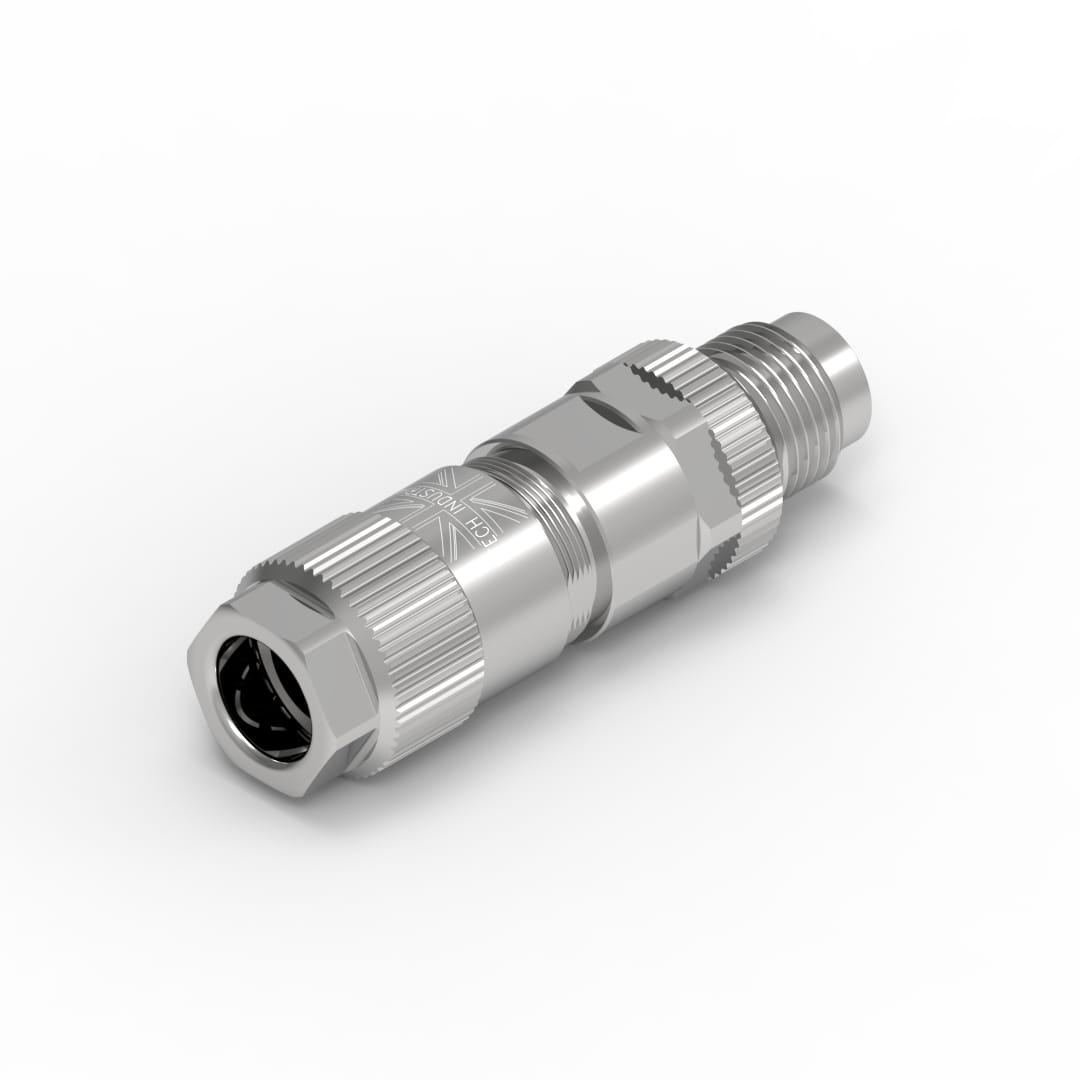

DTECH® M12 Male Metal Plug 8 Pin X-Code PG9 (IDC)

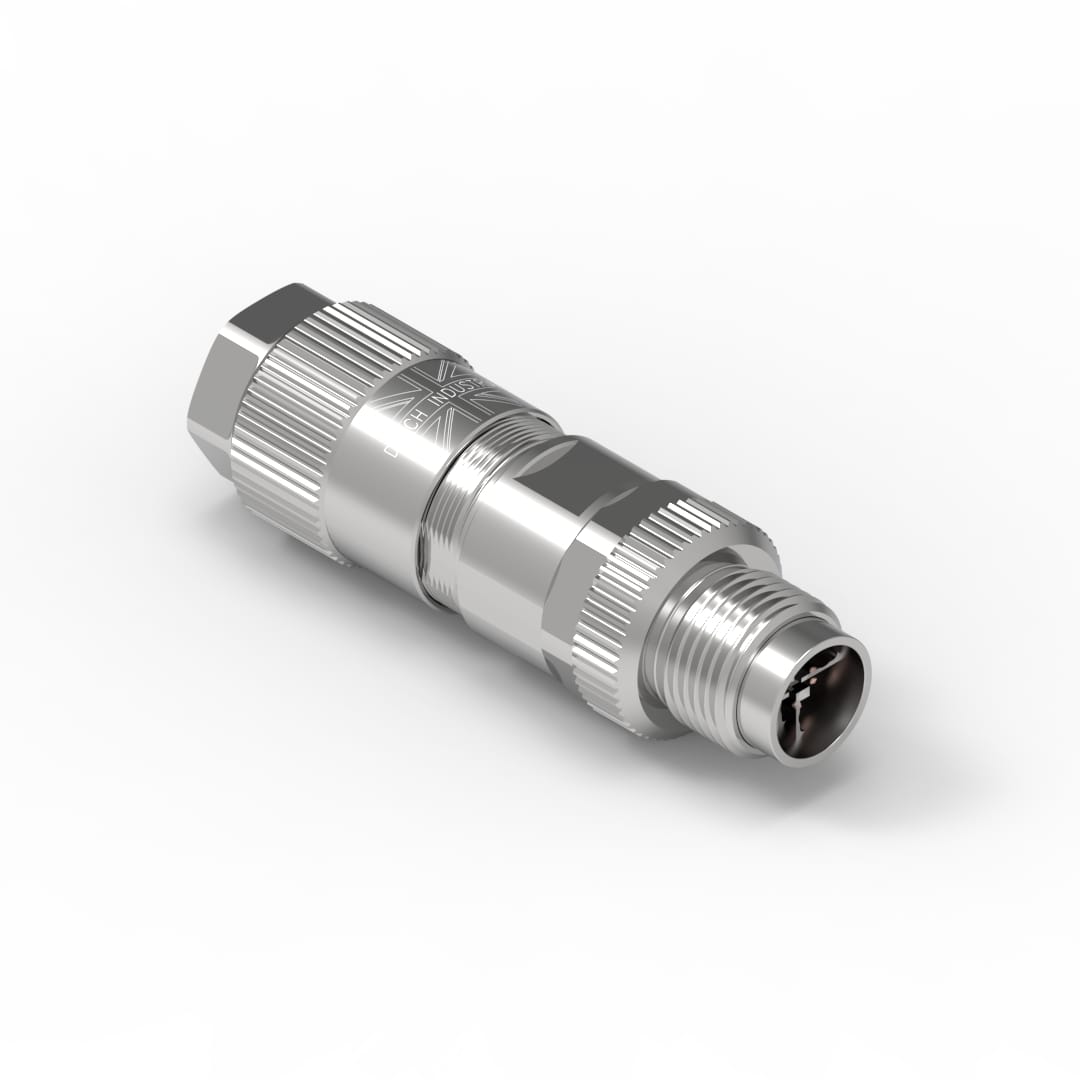

DTECH® M12 Male Metal Plug 8 Pin X-Code PG9 (IDC) - Image 2

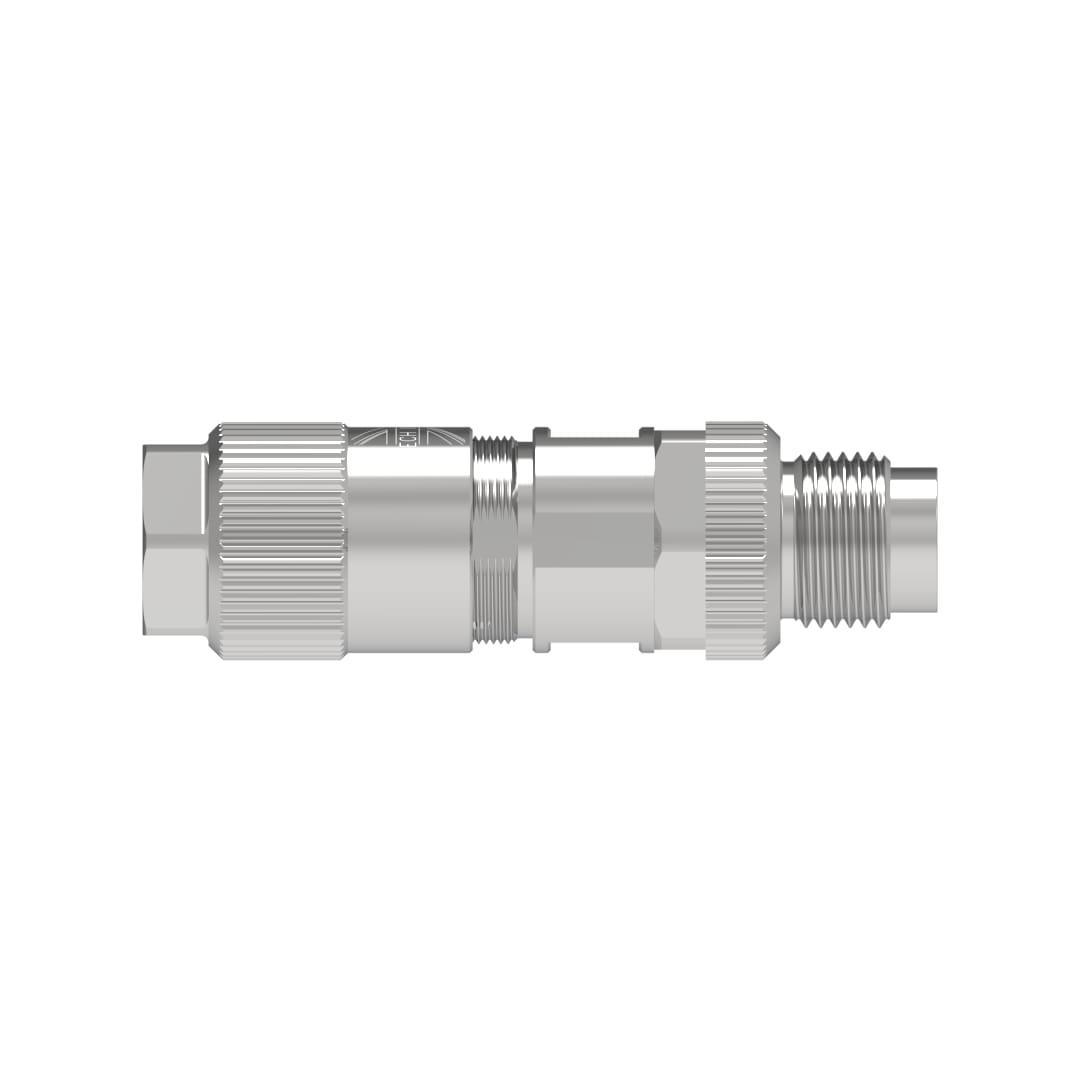

DTECH® M12 Male Metal Plug 8 Pin X-Code PG9 (IDC) - Image 3

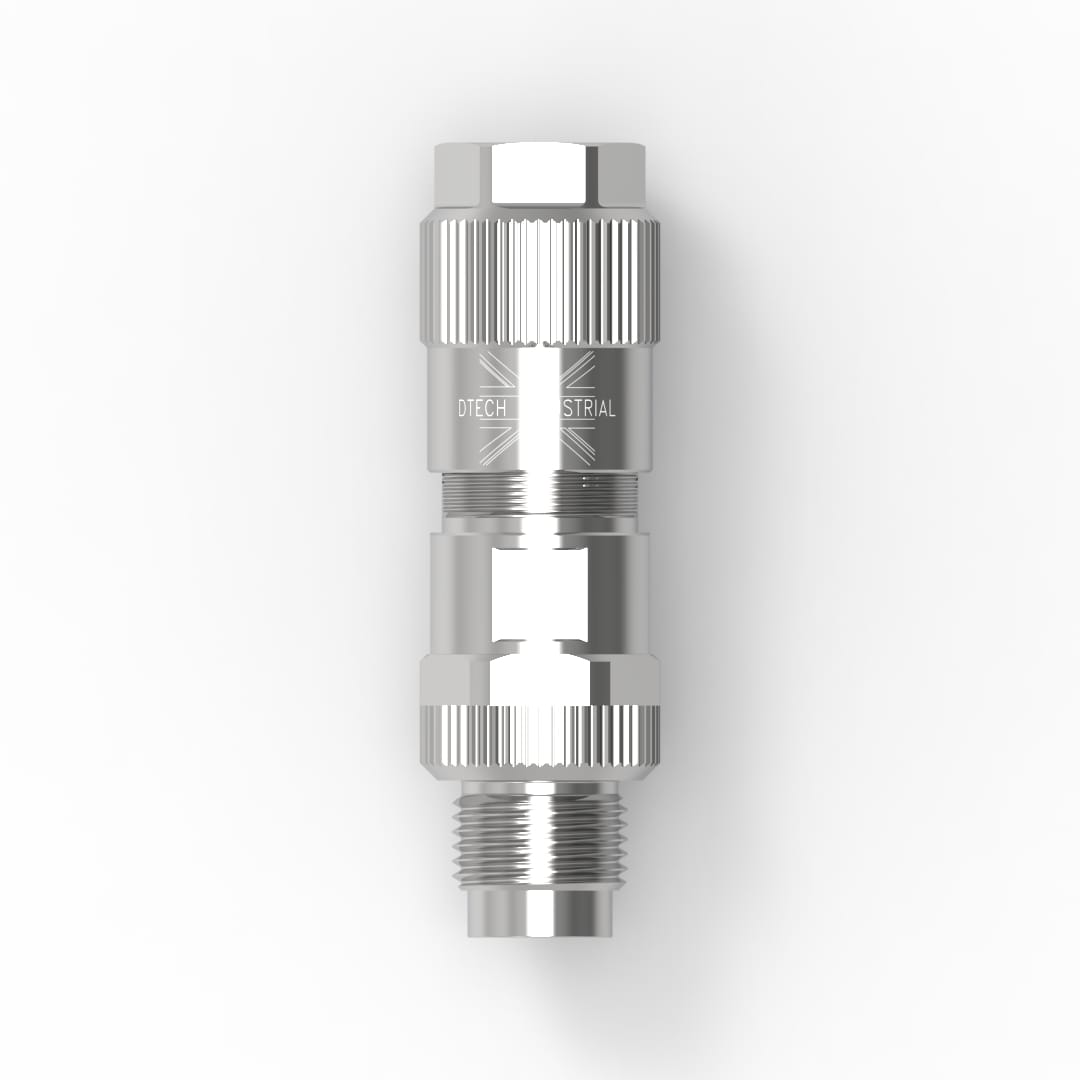

DTECH® M12 Male Metal Plug 8 Pin X-Code PG9 (IDC) - Image 4

DTECH® M12 Male Metal Plug 8 Pin X-Code PG9 (IDC)

MPN IND-M12-X-IDC Category Features , ,

Original price was: £28.59.Current price is: £28.59. Ex. Vat

  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • High-performance DTECH® M12 X-Code 8-pin male metal plug with IDC termination, engineered for field-wireable high-speed industrial Ethernet connectivity.
  • IDC termination delivers quick and easy on-site connections without the need for specialist tooling.
  • IP67 rated sealing provides complete dust ingress protection and temporary water immersion resistance in harsh industrial and outdoor environments.
  • Full metal outer shielding reduces EMI/RFI interference, ensuring stable and reliable signal transmission.
  • X-Code 8-pin layout supports 10GBase-T, compatible with machine vision, IIoT, and industrial Ethernet applications across IEC 61076-2-109 compliant devices.
  • PG9 cable gland accommodates cable diameters of 6–8mm.
Technical Product Information
Insulator MaterialPA66/POM/PA66 GF15%, BlackShell MaterialBrass & Zinc Alloy, NI Plated
Contact MaterialPhosphor Bronze (C5191-H)SealingSilicone Rubber TSE 2186U
Underplate50µ" to 150µ" NIContact Area10µ" AU
IDC Area80µ" to 150µ" SN PlatedProtection GradeIP67
Operating Voltage48V (per contact)Current Rating0.5A (per contact)
Contact Resistance≤5 mΩInsulation Resistance≥100 MΩ MIN @ 500 VDC
Dielectric Withstanding500 VAC / MinuteTemperature Range-40°C to +90°C
Cable Diameter6.2mm to 8.4mmConductor Size24 to 26 AWG
StandardsIEC 61076-2-109Performance10GBase-T (XG® Systems)
RoHS ConformityYesCE MarkingYes
