DTECH® Cat XG® Internal / External F/UTP 500MHz AV-READY LSZH Black 305M
DTECH® Cat XG® Internal / External F/UTP 500MHz AV-READY LSZH Black 305M - Image 2

DTECH® Cat XG® Internal / External F/UTP 500MHz AV-READY LSZH Black 305M

MPN CXG-FTP-ZHIE-NBK Categories , Features , ,

Original price was: £163.03.Current price is: £163.03. Ex. Vat

Fast UK Delivery

Free delivery on orders available

Secure Checkout

SSL protected gateway

>30YR Warranty

Performance guaranteed

  • Certificate of Conformance
  • Data Sheet
Product Overview

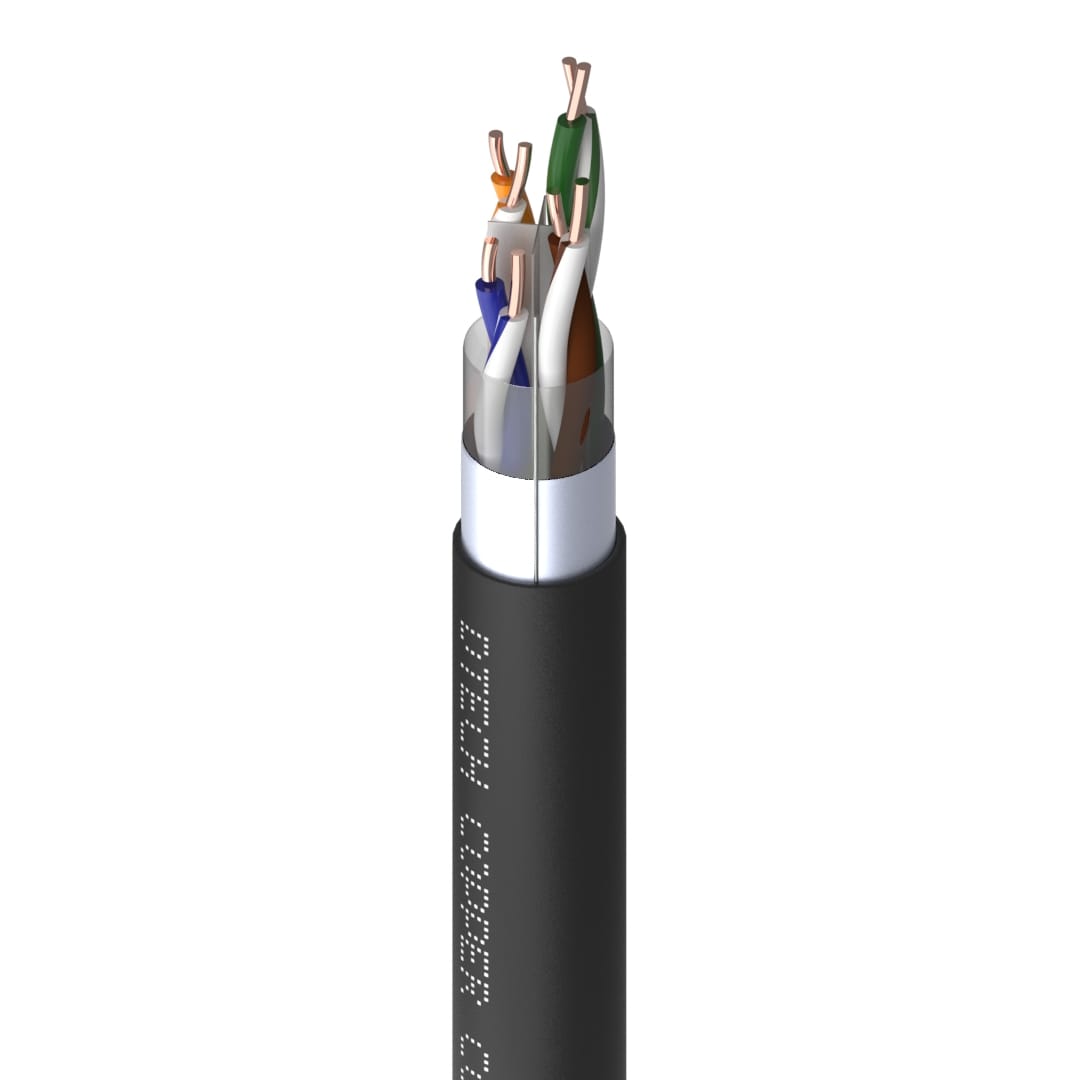

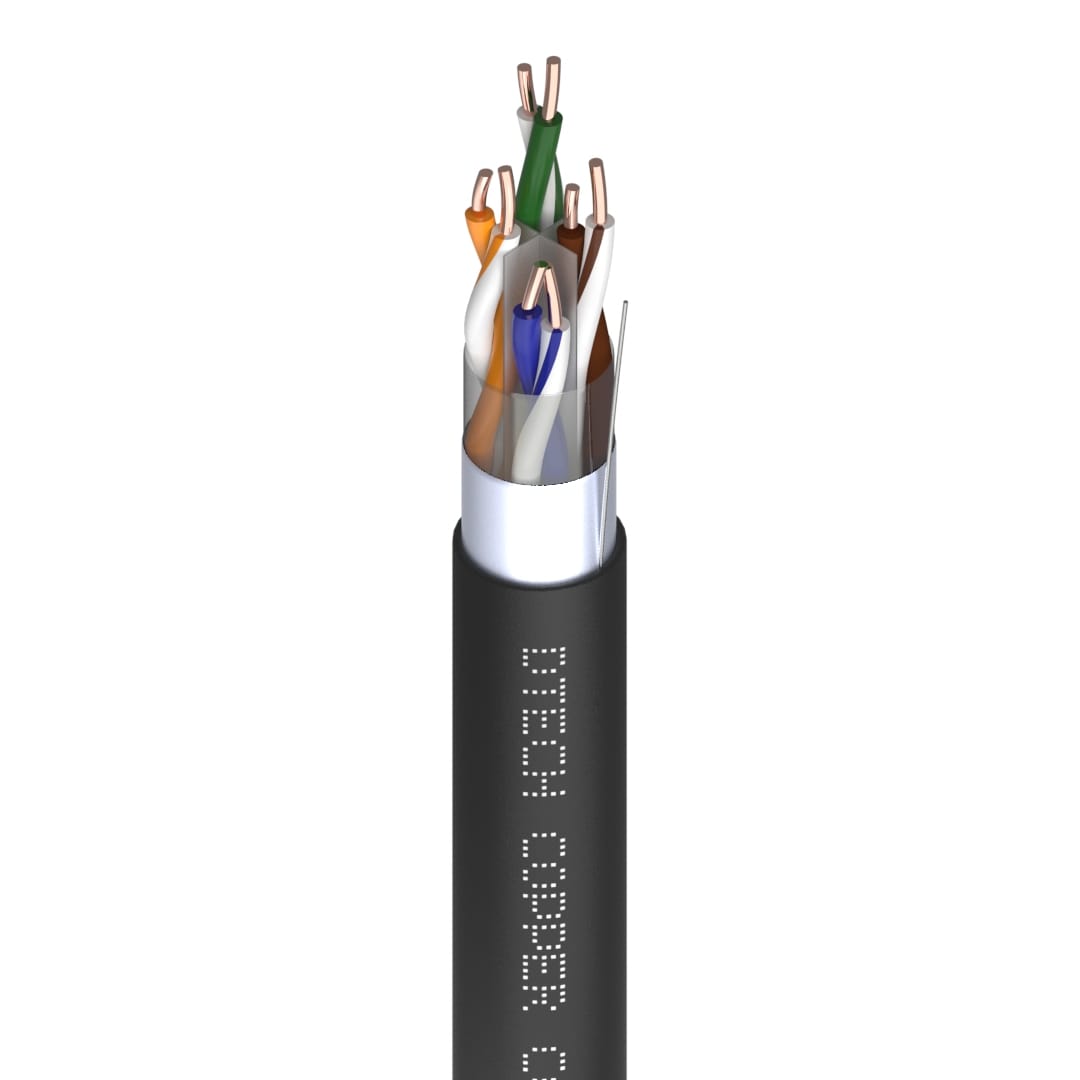

  • High-performance DTECH® Cat XG® 500MHz F/UTP shielded data cable, engineered with an overall foil designed to minimise crosstalk and EMI inteference.
  • Supports full 10GBase-T ethernet speeds up to 90 meters, ensuring fast and reliable data transmission.
  • Compatible with PoE++ technology, allowing for power delivery alongside data for efficient device operation.
  • UV Stabilized Low Smoke Zero Halogen (LSZH) and internal mylar wrap makes it ideal for internal and external use.
  • AV-Ready cables recommended by HDBase-T, perfect for high-definition audio and video applications.
  • Ideal for both commercial and residential installations, providing versatility for various networking needs.
Technical Product Information
CategoryXG®Shielding TypeF/UTP
Jacket MaterialLSZHCable Length1000ft (305m)
Bandwidth500MHzSpeed10GBase-T
Wire Gauge23AWGConductor MaterialPure Bare Solid Copper
Packaging MethodPull BoxNumber of Conductors4 Pairs
Internal / ExternalInternal / ExternalPoEPoE++
Cable Outer Diameter (mm)7.00 ± 0.50Bend Radius (mm)28.00
StandardISO/IEC 11801, ANSI/TIA-568.2-DOperating Temperature-20 to 75°C
RoHS ConformityYesCE MarkingYes
