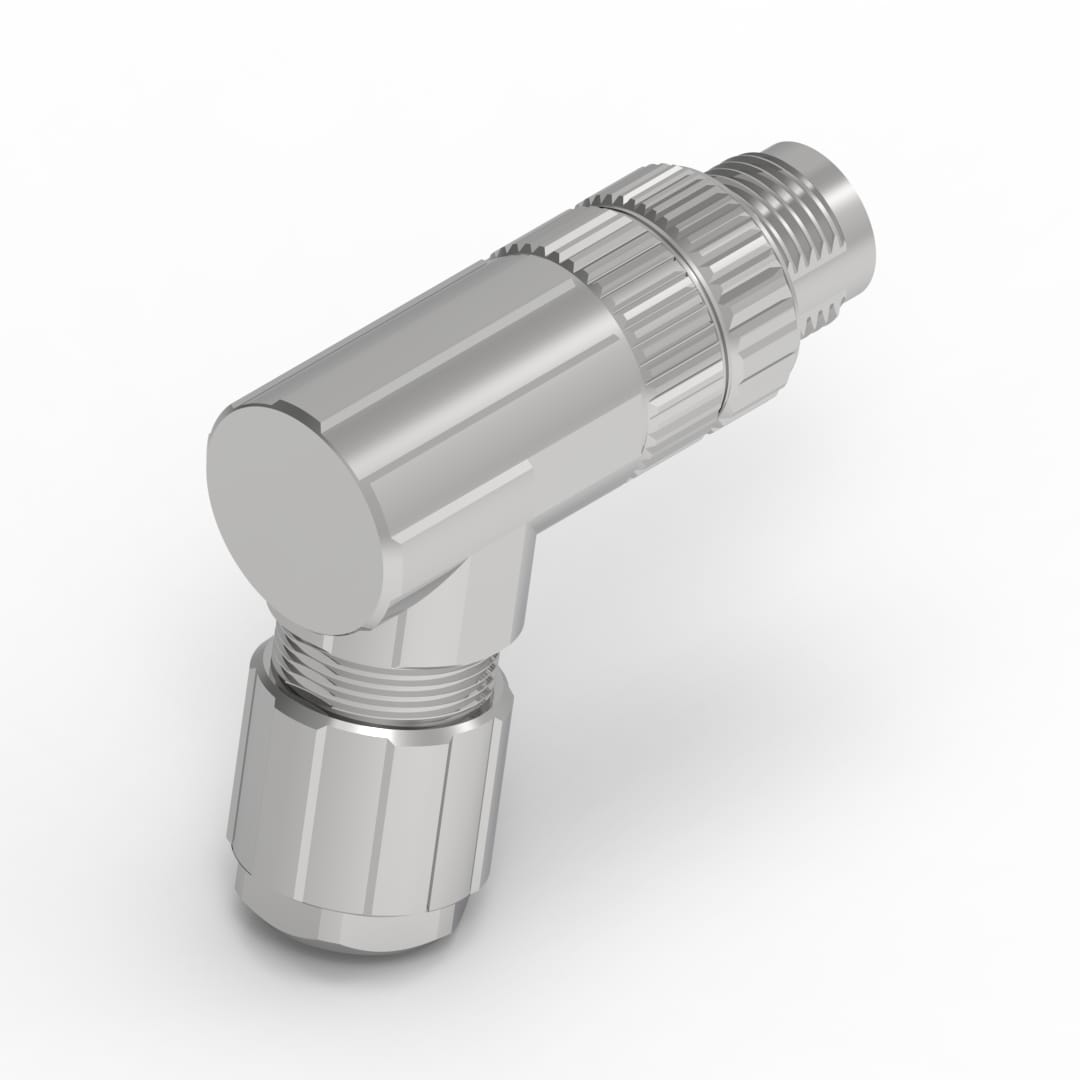

DTECH® M12 Angled Male Metal Plug 8 Pin X-Code /w contacts PG9 (Crimp)

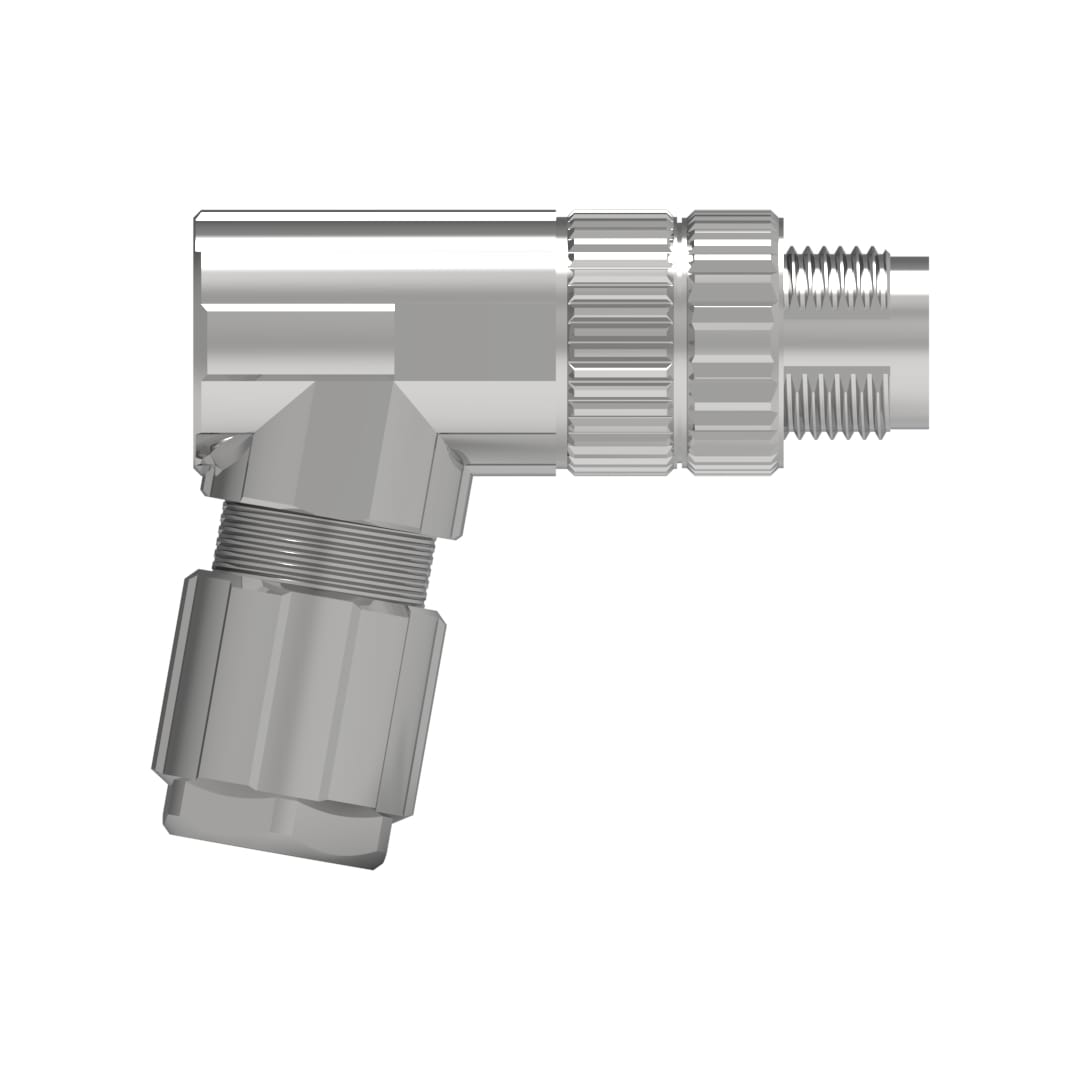

DTECH® M12 Angled Male Metal Plug 8 Pin X-Code /w contacts PG9 (Crimp) - Image 2

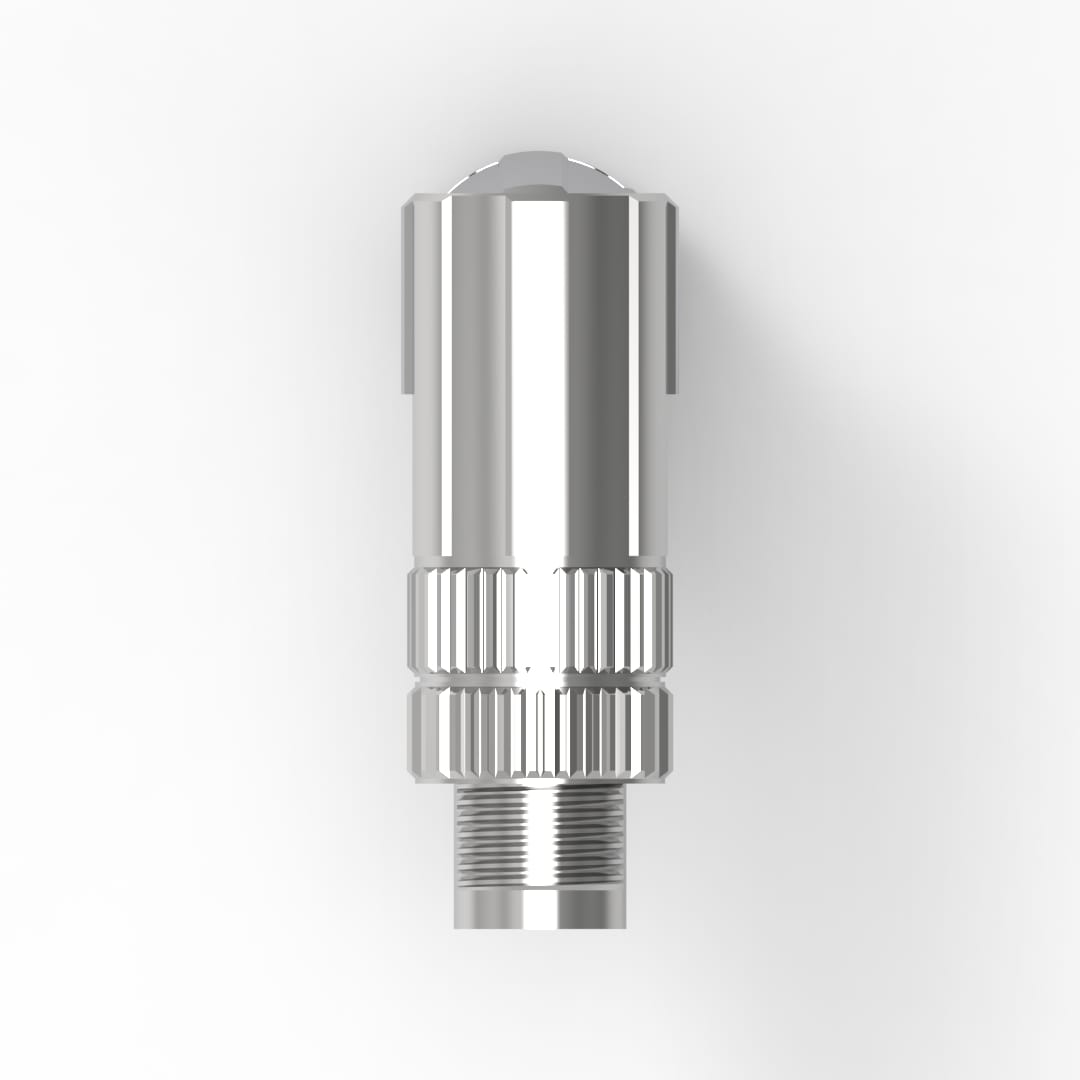

DTECH® M12 Angled Male Metal Plug 8 Pin X-Code /w contacts PG9 (Crimp) - Image 3
DTECH® M12 Angled Male Metal Plug 8 Pin X-Code /w contacts PG9 (Crimp) - Image 4

DTECH® M12 Angled Male Metal Plug 8 Pin X-Code /w contacts PG9 (Crimp)

MPN IND-M12X-MAC Category Features , ,

Original price was: £24.99.Current price is: £24.99. Ex. Vat

  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • High-performance DTECH® M12 X-Code 8-pin angled male metal plug with solder termination, engineered for field-wireable high-speed industrial Ethernet connectivity.
  • 90° angled body reduces cable bend stress in space-constrained panel and machine installations.
  • Supplied with crimp contacts, delivering a secure, gas-tight connection with excellent long-term reliability in demanding environments.
  • IP67 rated sealing provides complete dust ingress protection and temporary water immersion resistance in harsh industrial and outdoor environments.
  • Full metal outer shielding reduces EMI/RFI interference, ensuring stable and reliable signal transmission.
  • X-Code 8-pin layout supports 10GBase-T, compatible with machine vision, IIoT, and industrial Ethernet applications across IEC 61076-2-109 compliant devices.
  • PG9 cable gland accommodates cable diameters of 6–8mm.
Technical Product Information
CouplingThreadedRated voltage60V AC/DC
TerminationCrimpRated current0.5A
CodingXContact resistance≤5 mΩ
Pollution degree3Insulation resistance≥100 MΩ
Temperature range-40°C to +80°CShell materialCopper nickel plated
Protection GradeIP67Contact materialCopper Gold plated
Mating cycles≥500Insert materialPA66+GF UL94 black
Cable outlet diameter8.0mm MaxSealingNBR
Performance10GBase-T (XG® Systems)Conductor Size26 AWG
StandardsIEC 61076-2-109RoHS ConformityYes
CE MarkingYes
