Industrial
Rugged PUR

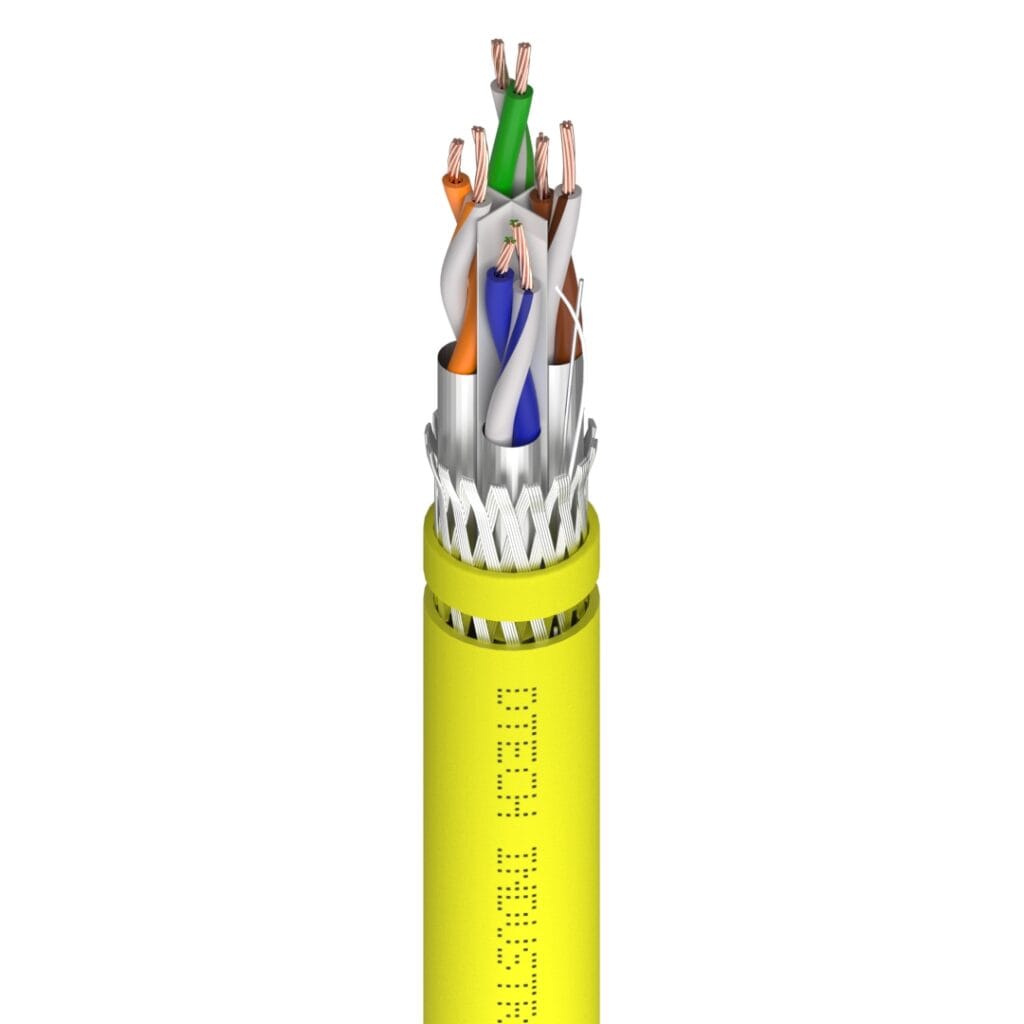

DTECH® Cat 6 S/FTP OFC Industrial Grade PUR Yellow

DTECH® Cat 6 S/FTP industrial cable with braided screen, foiled pairs and a rugged PUR jacket. Built for reliable Ethernet on factory floors, machinery and demanding installations exposed to oils, abrasion and EMI.

MPN

IND-C6-PUR-SF-YL

Category

6

Shielding

S/FTP

Jacket Material

PUR (Polyurethane)

Bending Radius

4 / 8 x Diameter (Fixed / Flexing)

Environment

Harsh Environments

Use Cases

Factory Floor, Industrial Networks, High EMI Zones

KEY FEATURES

High Performance Connectivity

5GBASE-TMulti-Gig5GBASE-TMulti-GigIndustrialHeavy-Duty BuildIndustrialHeavy-Duty BuildPUROil & Abrasion ProofPUROil & Abrasion ProofFlameSelf-ExtinguishingFlameSelf-ExtinguishingOilPlant-Floor ReadyOilPlant-Floor ReadyShieldedInterference-FreeShieldedInterference-Free
Enquire
Contact Sales
Available for direct enquiry. Speak to our team for current supply, project pricing or a scheduled delivery.
Enquire Add to Project Enquiry
Contact Sales
Enquire
Contact Sales
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS
  • DTECH Cat 6 S/FTP industrial bulk cable designed for reliable Ethernet in demanding factory floor and machine building installations.

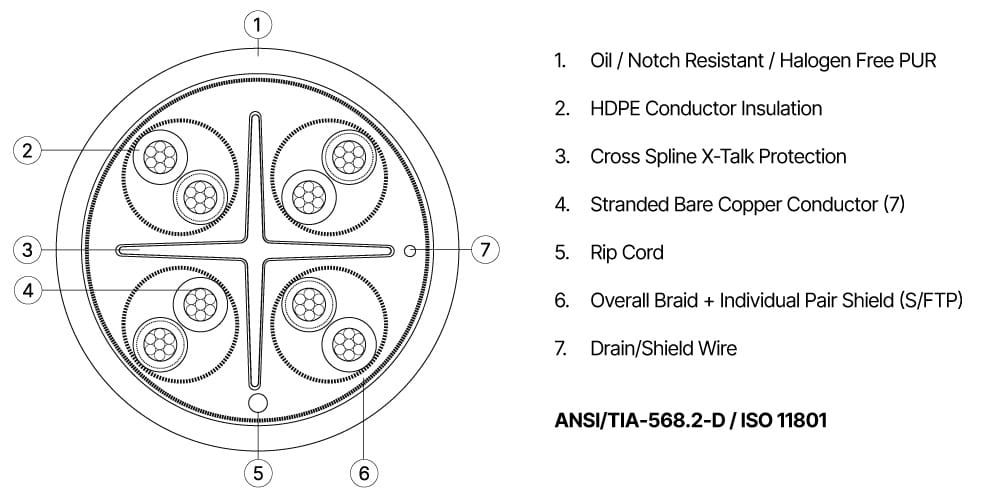

  • S/FTP construction combines an overall braided screen with individually aluminium foiled pairs for exceptional EMI protection in electrically noisy industrial environments.
  • Highly flexible stranded OFC copper with internal cross separator protects individual pairs under continuous mechanical stress, engineered for use in cable chains, robotic arms and continuously moving applications.
  • Oil, notch, and abrasion resistant PUR jacket conforming to EN 50363-10-2 and IEC 60811-2-1 provides superior flexibility and chemical resistance, suitable for exposure to oils, coolants and industrial fluids on the factory floor.
  • PoE+ compatible — the stranded construction and superior thermal performance supports IEEE 802.3at (30W) power delivery without excessive heat build-up in bundled installations.
  • Supports data transmission speeds of up to 1 Gbps at 250MHz in compliance with ISO/IEC 11801 Class E.
  • Well suited for high-flex cable chain and robotic deployments, IP cameras, IIoT edge devices, EtherCAT, EtherNet/IP, PROFINET and general-purpose industrial Ethernet applications in factory automation and process control environments.
3RD PARTY COMPLIANCE
ISO/IEC Class E

Rated Product.

DTECH® Warranty

5 YR Industrial Warranty.

CPR Eca

Euroclass 50575.

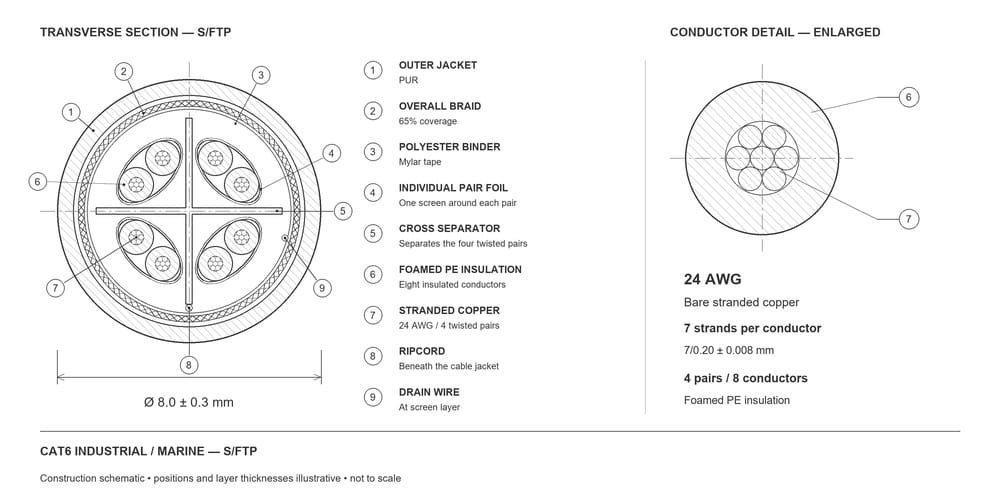

Category6Shielding TypeS/FTP
Jacket MaterialPURCore InsulationFoamed PE
Conductor MaterialBare Stranded CopperWire Gauge24AWG
Number of Conductors4 PairsCable Outer Diameter (mm)8.0 ± 0.3
Rated Bandwidth (MHz)250NVP (%)76
Data Transmission1000Base-TPoE GradePoE++
EnvironmentHarsh EnvironmentsOperating Temperature (°C)-20 to 90
Installation Temp (°C)-20 to 60Max Pull Load (N)110
Min Bend Radius Installation8 × ODMin Bend Radius Installed4 × OD
Conductor Construction7/0.20 ± 0.008Insulation Thickness (mm)0.25
Insulation OD (mm)1.32 ± 0.05Binder MaterialMylar Tape
Shielding MaterialAl/Mylar TapeShielding Overlap25%
Braid MaterialAluminium Magnesium Alloy WireBraid Construction16/8/0.12 ± 0.008
Braid Coverage65%Jacket Thickness (mm)0.80
Spark Test for Insulation (DC)2.50kVConductor Resistance Max at 20°C87.6 ohm/km
Insulation Resistance100 MΩ·kmStandardISO 11801 Class E / ANSI/TIA-568.D
RoHS ConformityYesCE MarkingYes
Cable LengthCustomPackaging MethodReel
Technical Datasheet
Certificate of Conformity
Product Installation Guides
