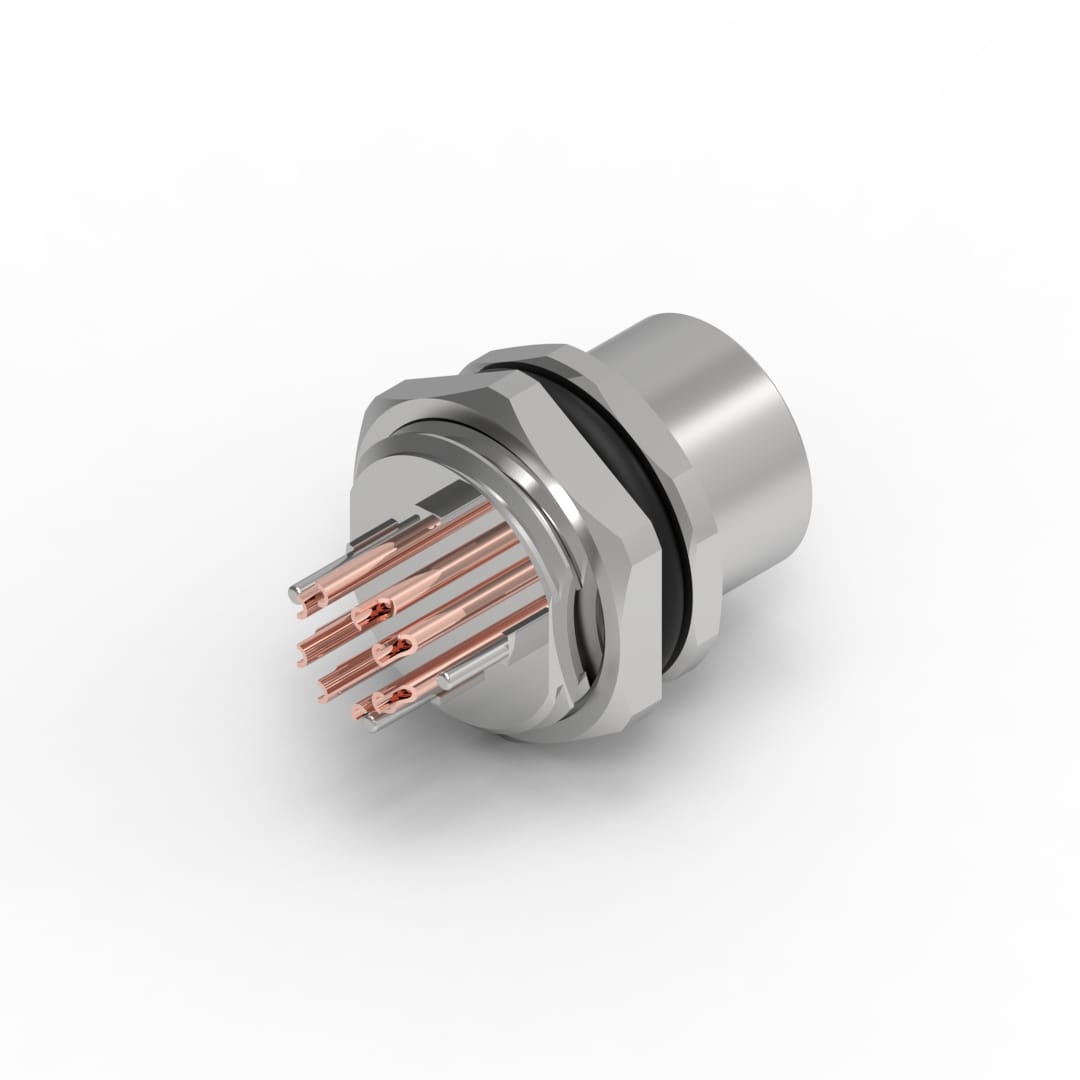

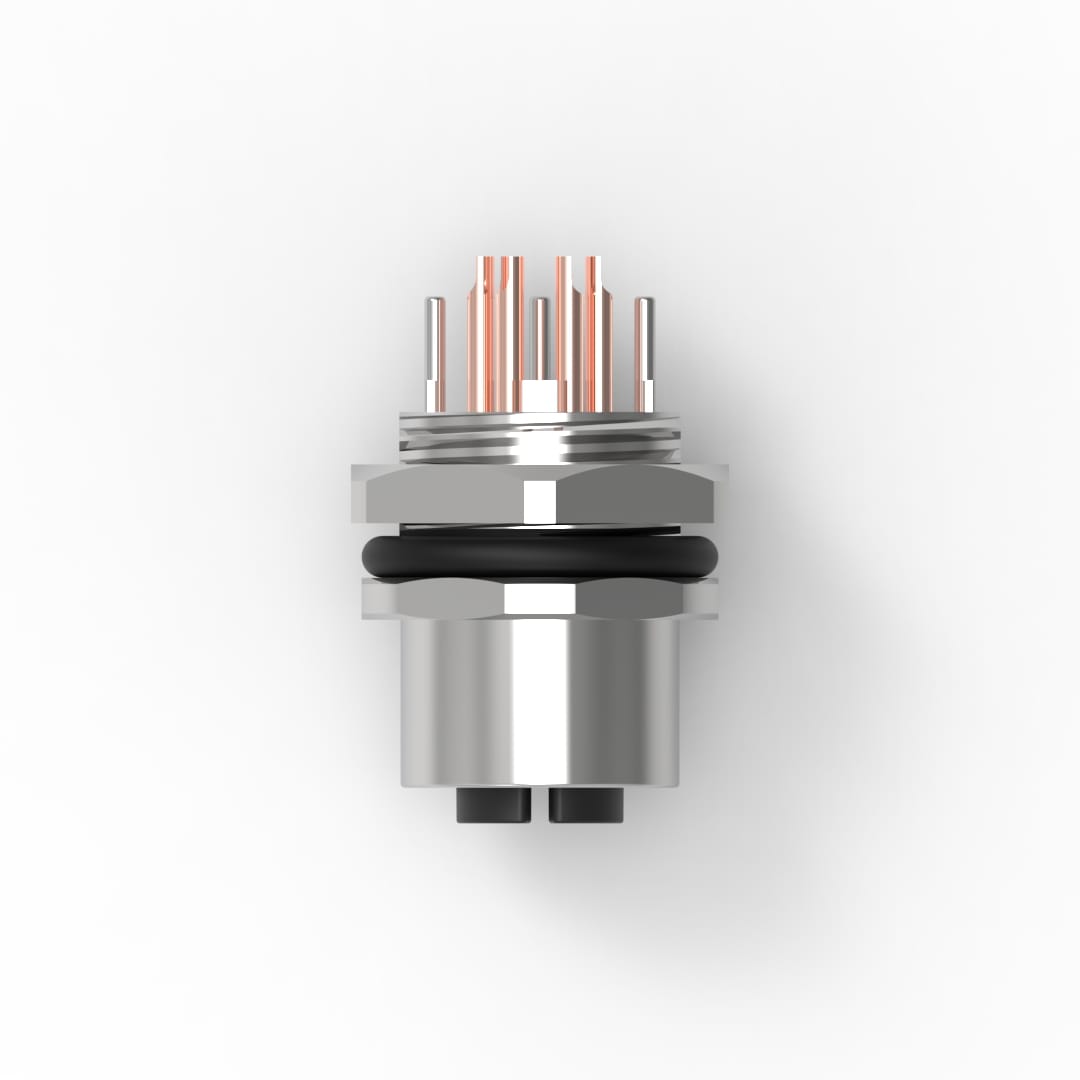

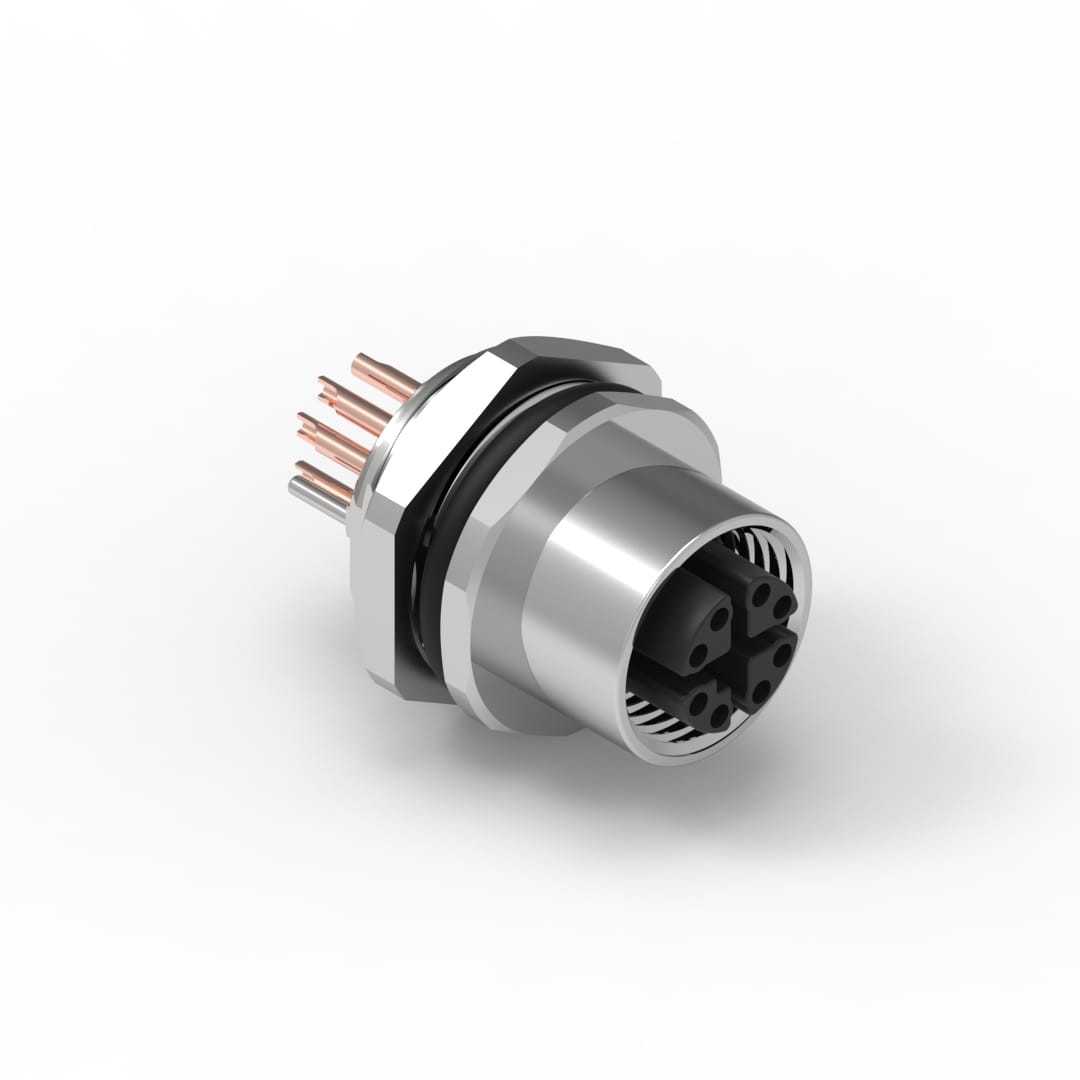

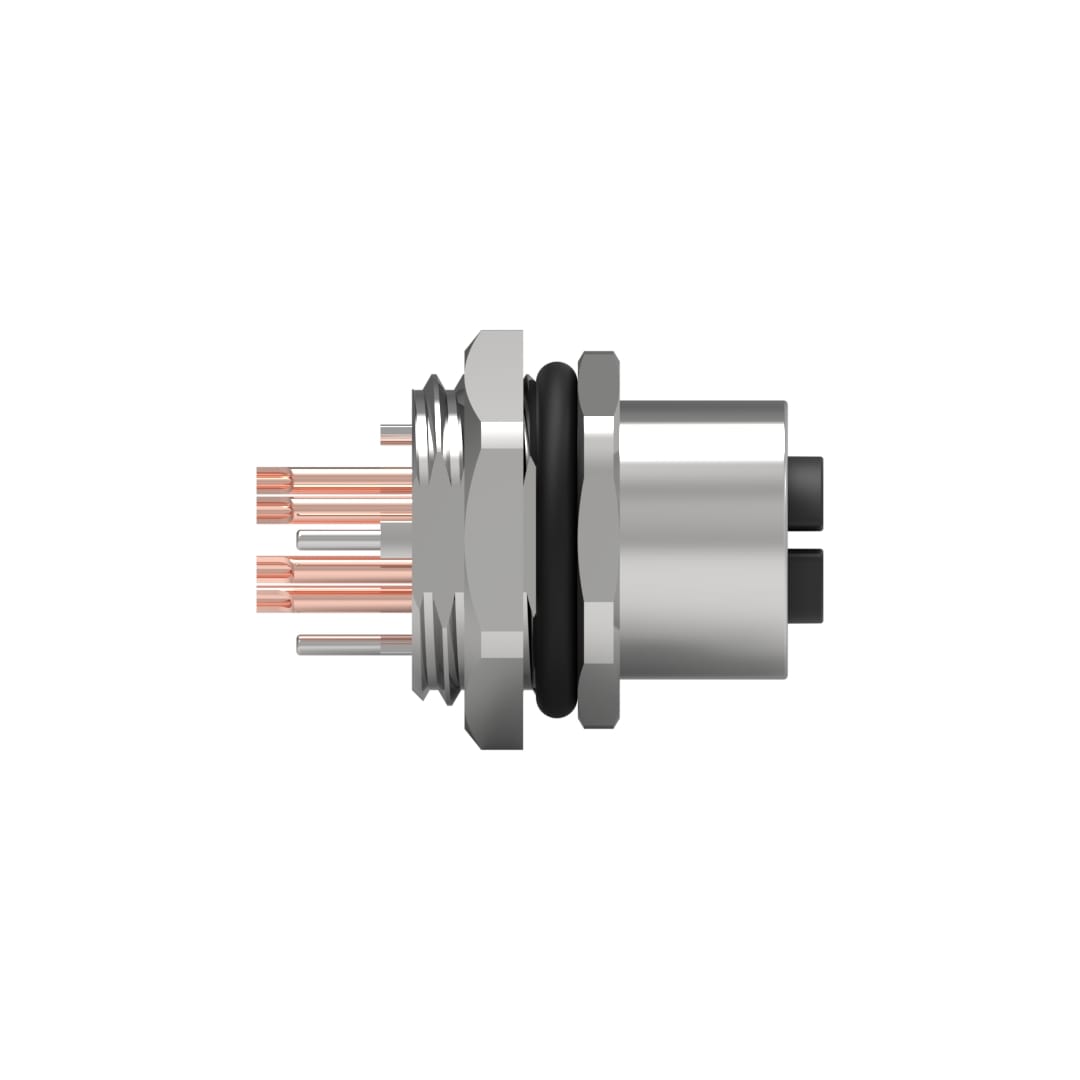

DTECH® M12 Female Front Mount Socket 8 Pin X-Code (Solder / Threaded M16*1.5)
DTECH® M12 Female Front Mount Socket 8 Pin X-Code (Solder / Threaded M16*1.5) - Image 2
DTECH® M12 Female Front Mount Socket 8 Pin X-Code (Solder / Threaded M16*1.5) - Image 3
DTECH® M12 Female Front Mount Socket 8 Pin X-Code (Solder / Threaded M16*1.5) - Image 4

DTECH® M12 Female Front Mount Socket 8 Pin X-Code (Solder / Threaded M16*1.5)

MPN IND-M12X-FFMS Category Features , ,

Original price was: £11.99.Current price is: £11.99. Ex. Vat

  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • High-performance DTECH® M12 X-Code 8-pin female front mount socket with solder termination, engineered for high-speed industrial Ethernet panel-mount connectivity.
  • M16*1.5 threaded mounting provides secure front-panel installation in control cabinets and junction boxes.
  • IP67 rated sealing provides protection from dust ingress and temporary water immersion.
  • X-Code 8-pin layout supports 10GBase-T, compatible with machine vision, IIoT, and industrial Ethernet applications across IEC 61076-2-109 compliant devices.
  • Solder termination ensures secure, low-resistance connections in high-vibration applications.
Technical Product Information
CouplingThreadedShell materialBrass nickel plated
TerminationSolderingContact materialPhosphor bronze Gold plated
CodingXInsert materialPA66+GF UL94 black
Pollution degree3SealingNBR
Temperature range-40°C to +80°CShielding materialZinc alloy
Protection GradeIP67Mating cycles≥100
Rated voltage60V AC/DCRated current0.5A
Contact resistance≤5 mΩInsulation resistance≥100 MΩ
Performance10GBase-T (XG® Systems)Conductor Size24 to 28 AWG
StandardsIEC 61076-2-109RoHS ConformityYes
CE MarkingYes
