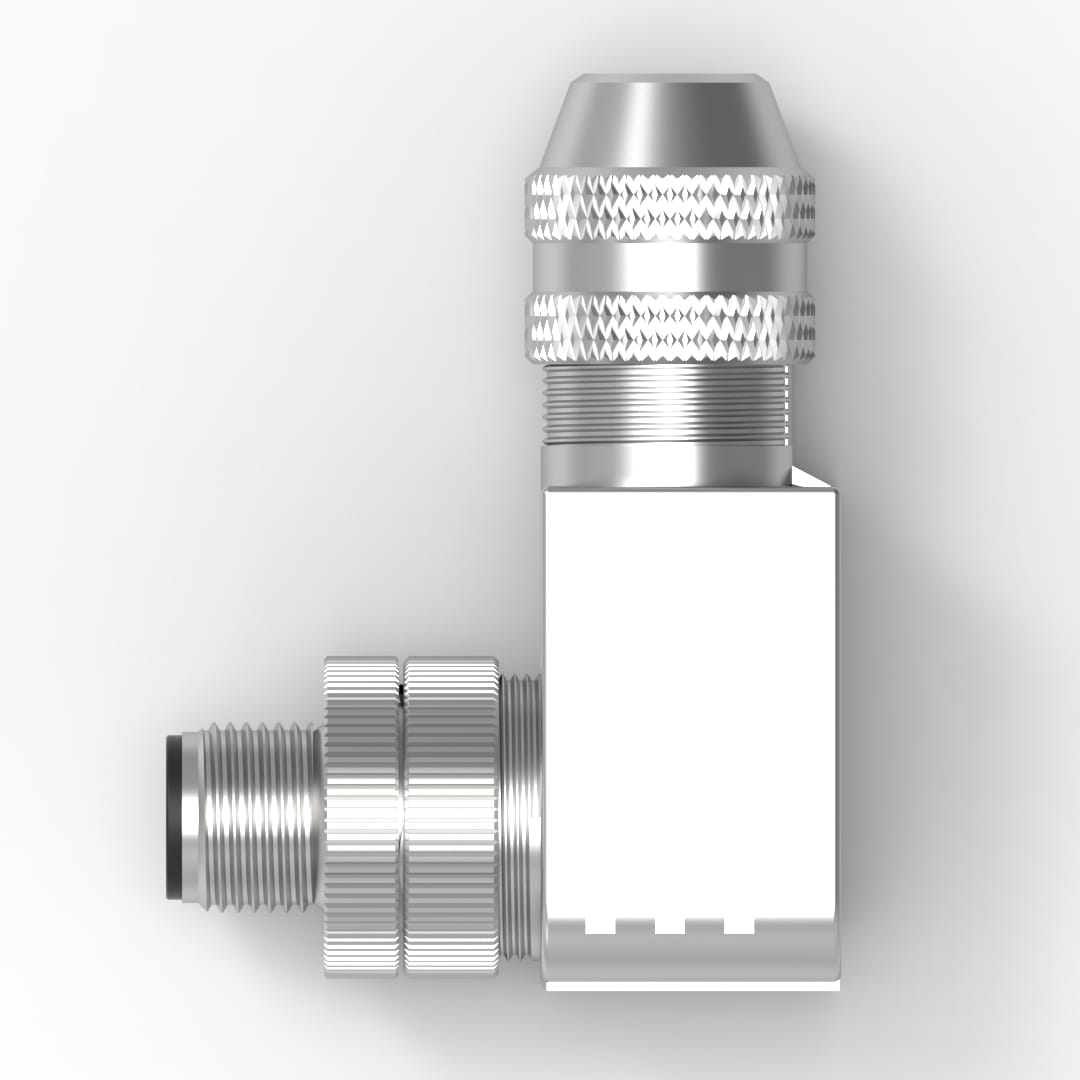

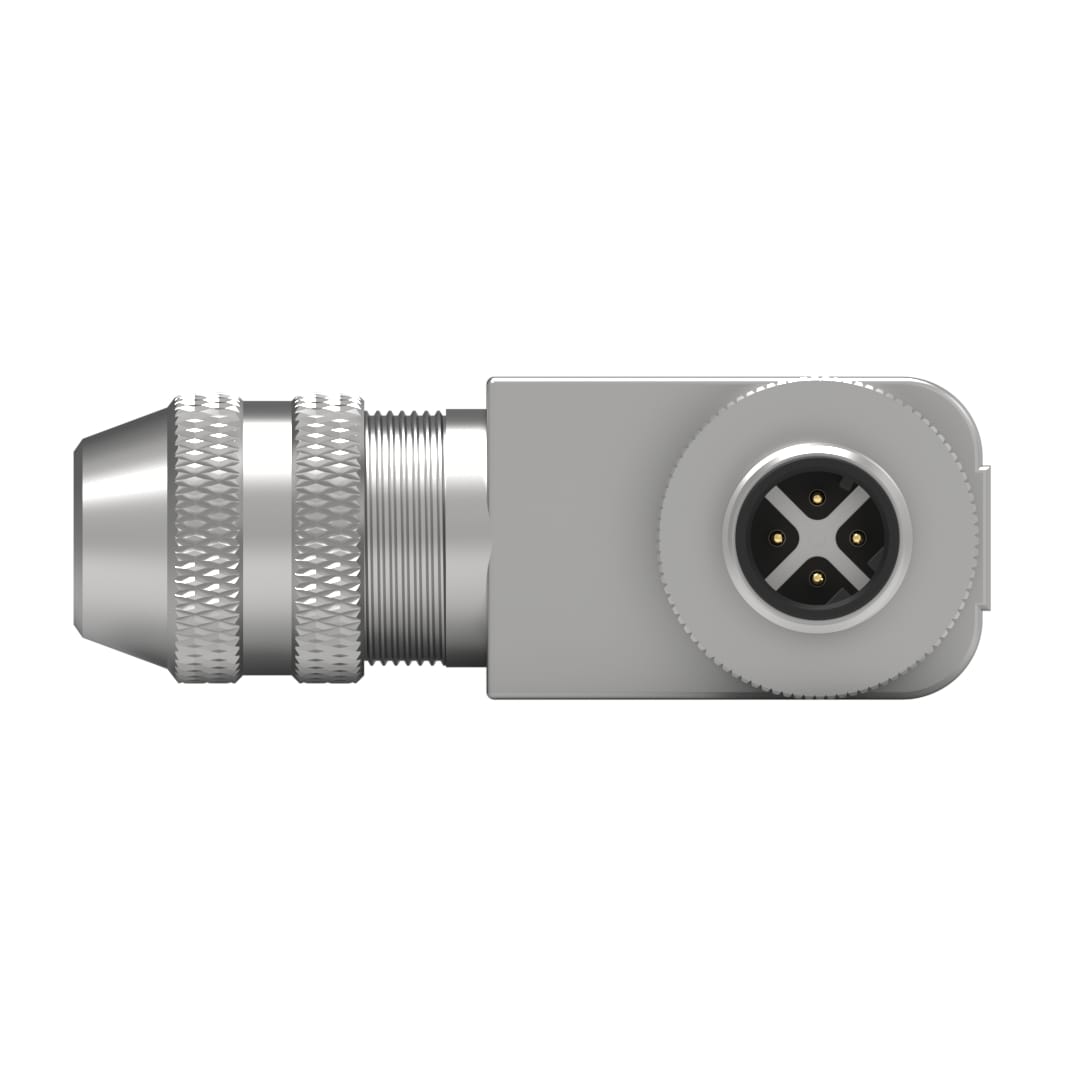

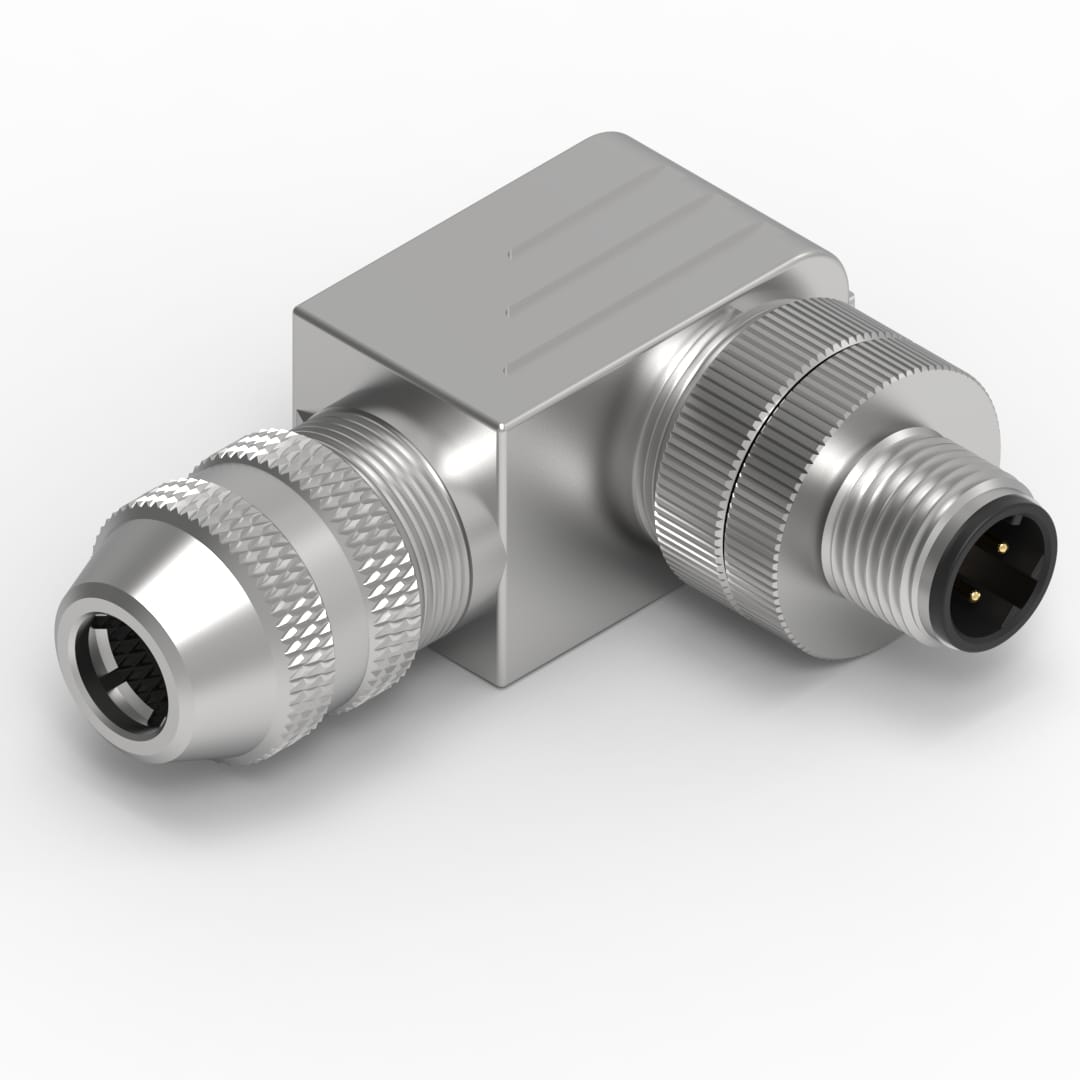

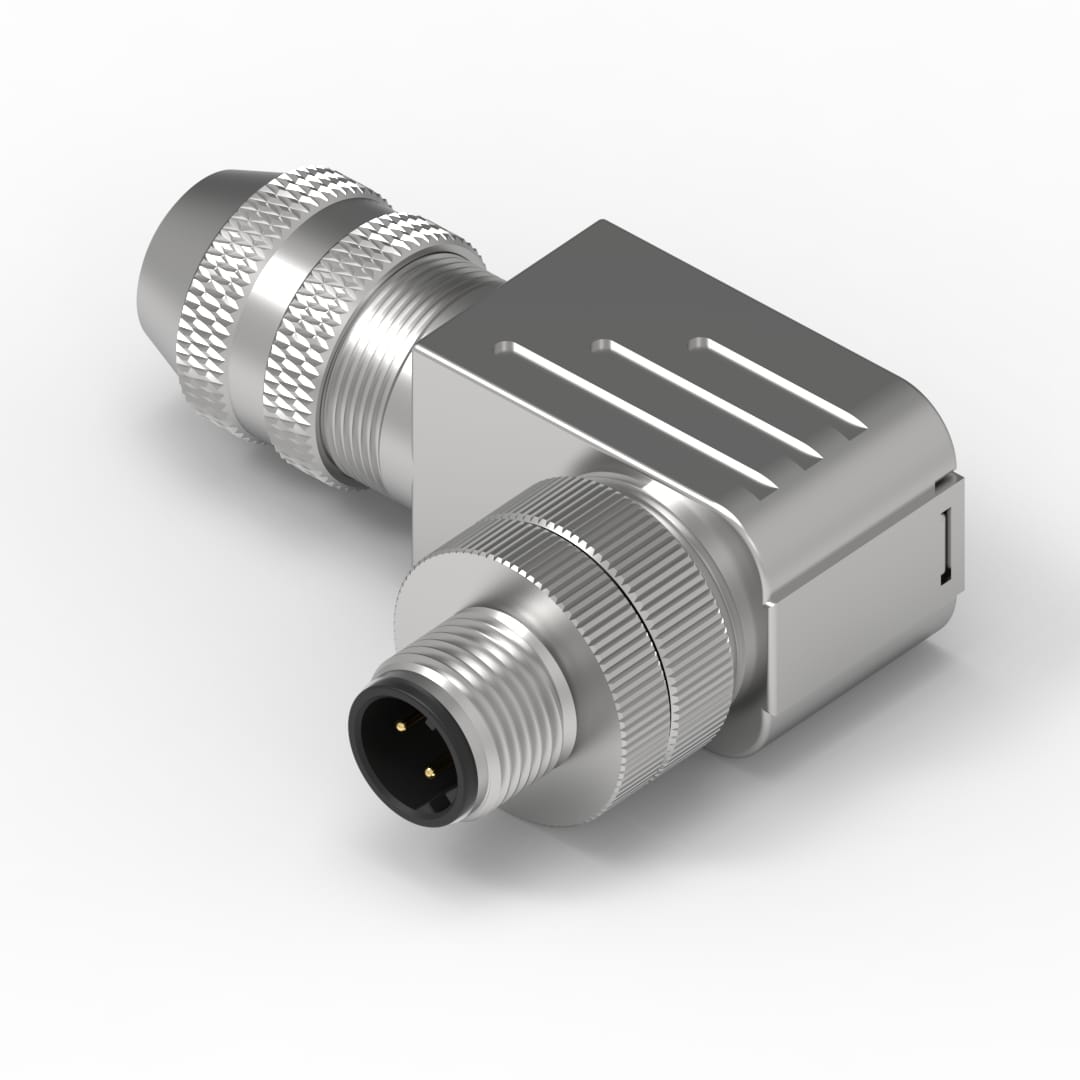

DTECH® M12 Male Angled Metal Plug 4 Pin D-code PG9 (Screw)

DTECH® M12 Male Angled Metal Plug 4 Pin D-code PG9 (Screw)

MPN IND-M12D-MAS Category Features , ,

Original price was: £10.99.Current price is: £10.99. Ex. Vat

  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® M12 4-pin D-Code male metal plug with screw termination, engineered for field-wireable industrial Ethernet connectivity.
  • 90° angled body reduces cable bend stress in space-constrained panel and machine installations.
  • Full metal outer shielding reduces EMI/RFI interference, ensuring stable and reliable signal transmission.
  • IP67 rated sealing provides complete dust ingress protection and temporary water immersion resistance in harsh industrial and outdoor environments.
  • D-Code 4-pin layout compatible with PROFINET and EtherCAT protocols across IEC 61076-2-101 compliant devices.
  • PG9 cable gland accommodates cable diameters of 6–8mm.
  • Equivalent to Siemens 6GK1901 series.
Technical Product Information
CouplingThreadedRated voltage250V AC/DC
TerminationScrew lockRated current4A
CodingDContact resistance≤10 mΩ
Pollution degree3Insulation resistance≥100 MΩ
Temperature range-40°C to +80°CShell materialBrass nickel plated
Protection GradeIP67Contact materialBrass Gold plated
Mating cycles≥500Insert materialPA66+GF UL94 black
Cable outlet diameter6.0 to 8.0mmSealingRubber
RoHS ConformityYesCE MarkingYes
