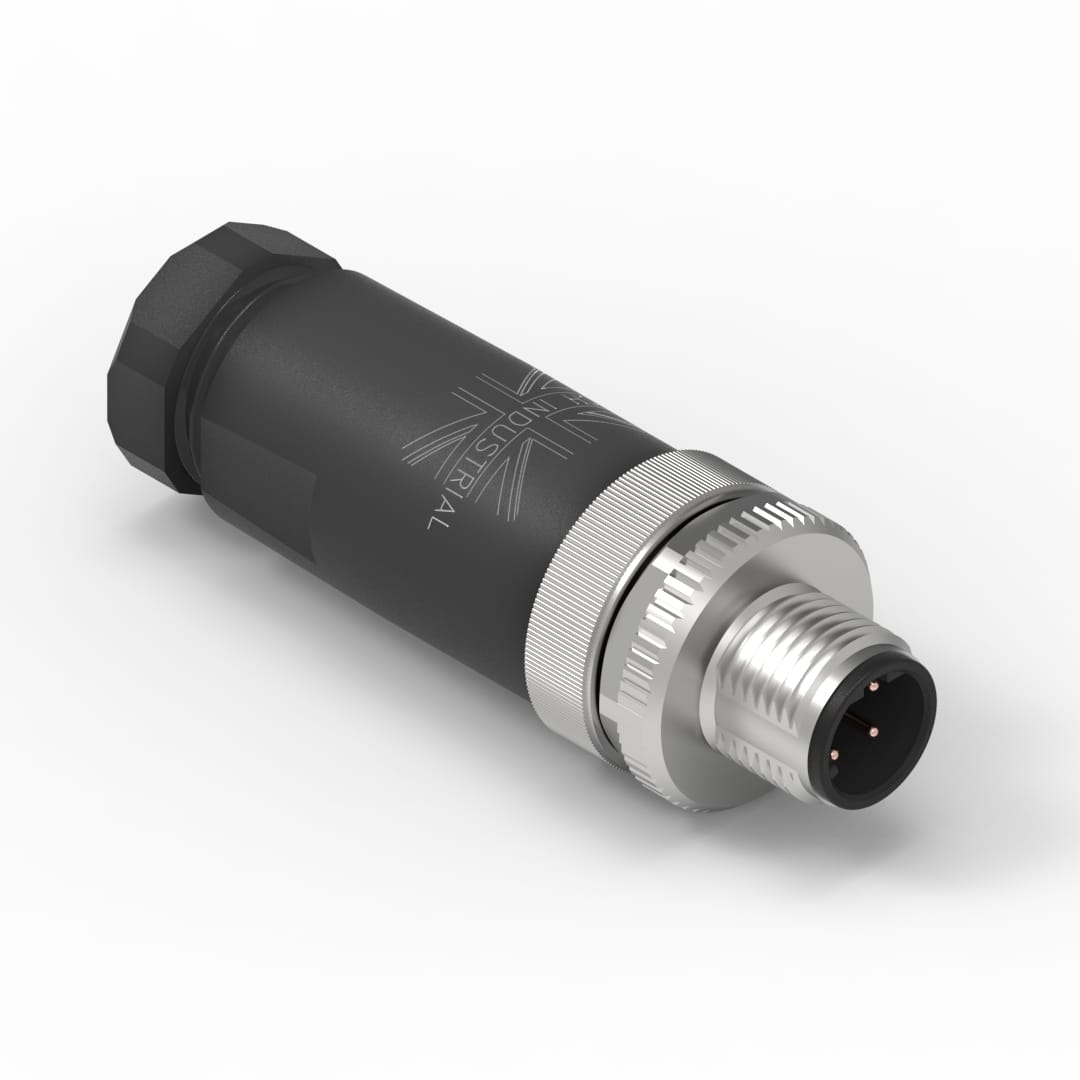

DTECH® M12 Male Plastic Plug 4 Pin D-code PG9 (Screw)

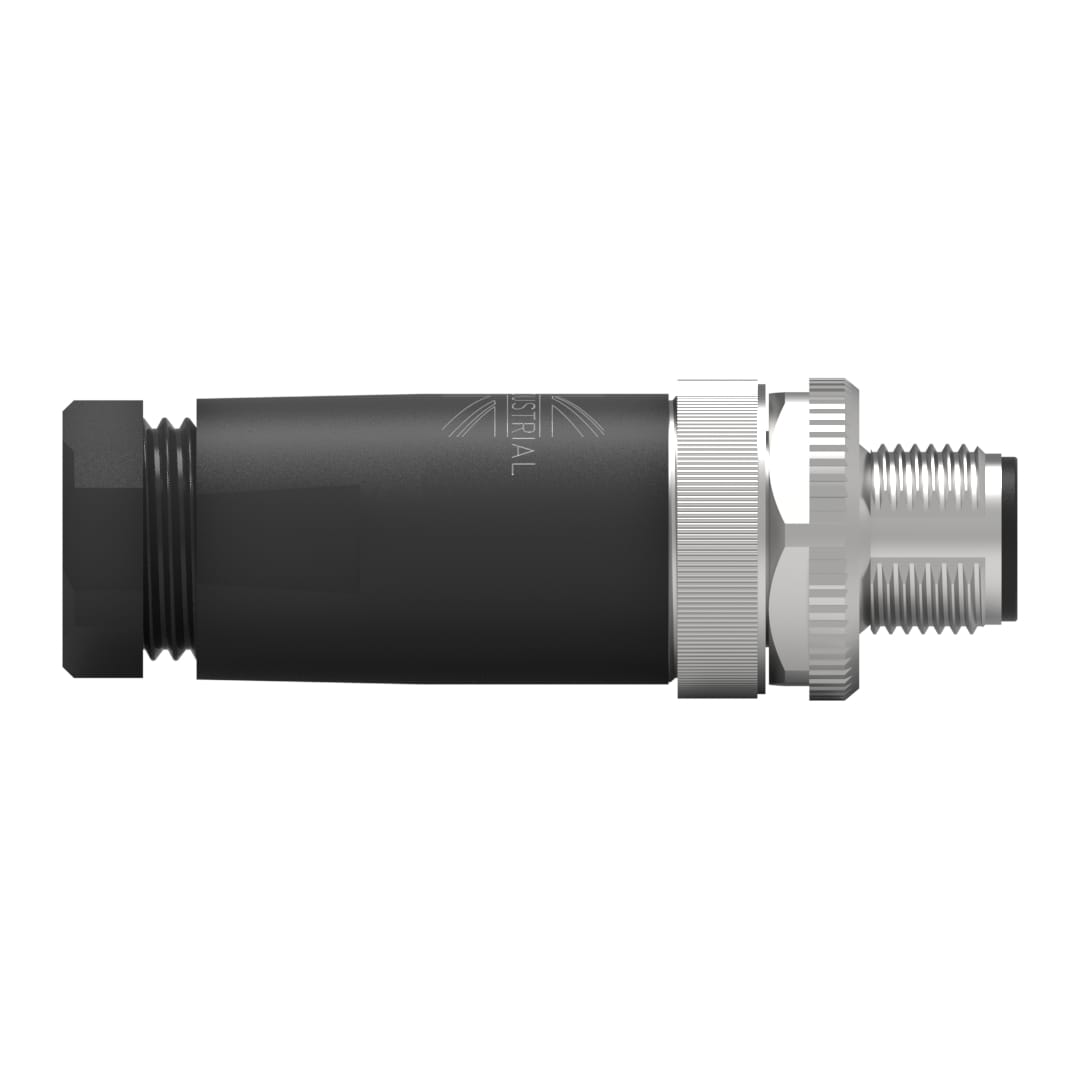

DTECH® M12 Male Plastic Plug 4 Pin D-code PG9 (Screw) - Image 2

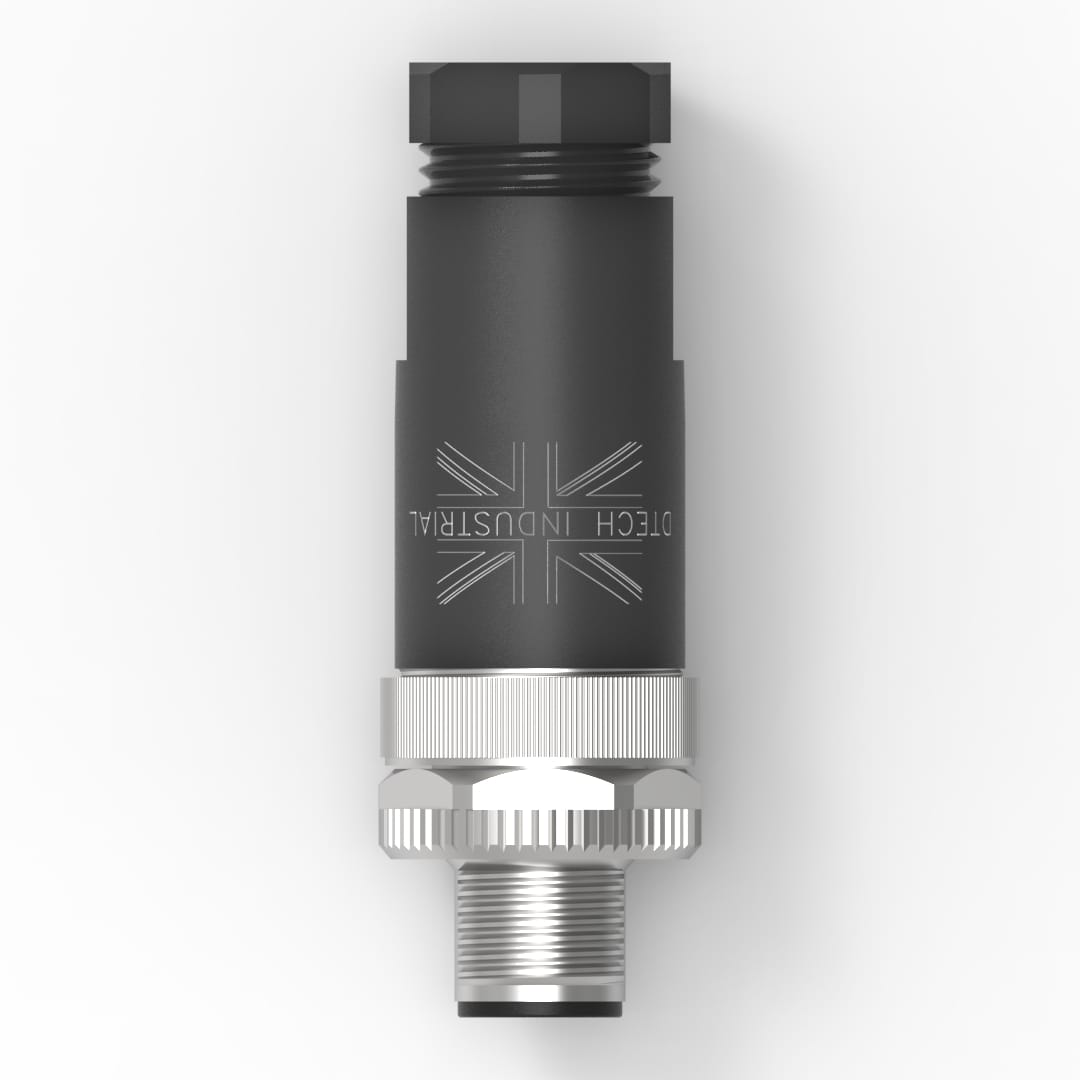

DTECH® M12 Male Plastic Plug 4 Pin D-code PG9 (Screw) - Image 3

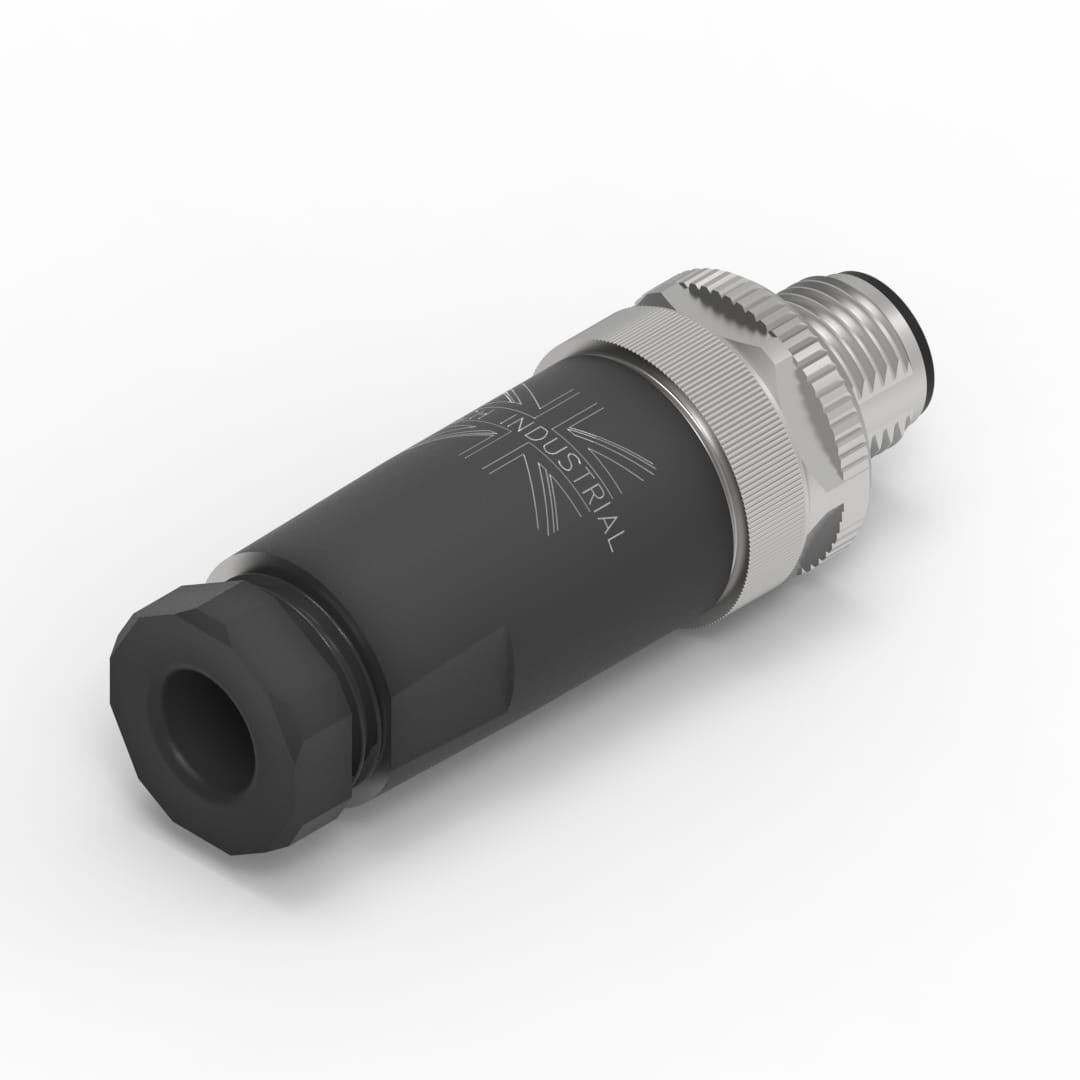

DTECH® M12 Male Plastic Plug 4 Pin D-code PG9 (Screw) - Image 4

DTECH® M12 Male Plastic Plug 4 Pin D-code PG9 (Screw)

MPN IND-M12D-MSS-PL Category Features , ,

Original price was: £6.50.Current price is: £6.50. Ex. Vat

  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® M12 4-pin D-Code male metal plug with screw termination, engineered for field-wireable industrial Ethernet connectivity.
  • IP67 rated sealing provides complete dust ingress protection and temporary water immersion resistance in harsh industrial and outdoor environments.
  • D-Code 4-pin layout compatible with PROFINET and EtherCAT protocols across IEC 61076-2-101 compliant devices.
  • PG9 cable gland accommodates cable diameters of 6–8mm.
Technical Product Information
CouplingThreadedRated voltage250V AC/DC
TerminationScrew lockRated current4A
CodingDContact resistance≤5 mΩ
Pollution degree3Insulation resistance≥100 MΩ
Temperature range-40°C to +80°CShell materialNylon/Zinc alloy nickel plated
Protection GradeIP67Contact materialCopper Gold plated
Mating cycles≥500Insert materialPA66+GF UL94 black
Cable outlet diameter6.0 to 8.0mmSealingSilicone/NBR, black
Traverse areaMax 2.0mm²/AWG 14RoHS ConformityYes
CE MarkingYes
