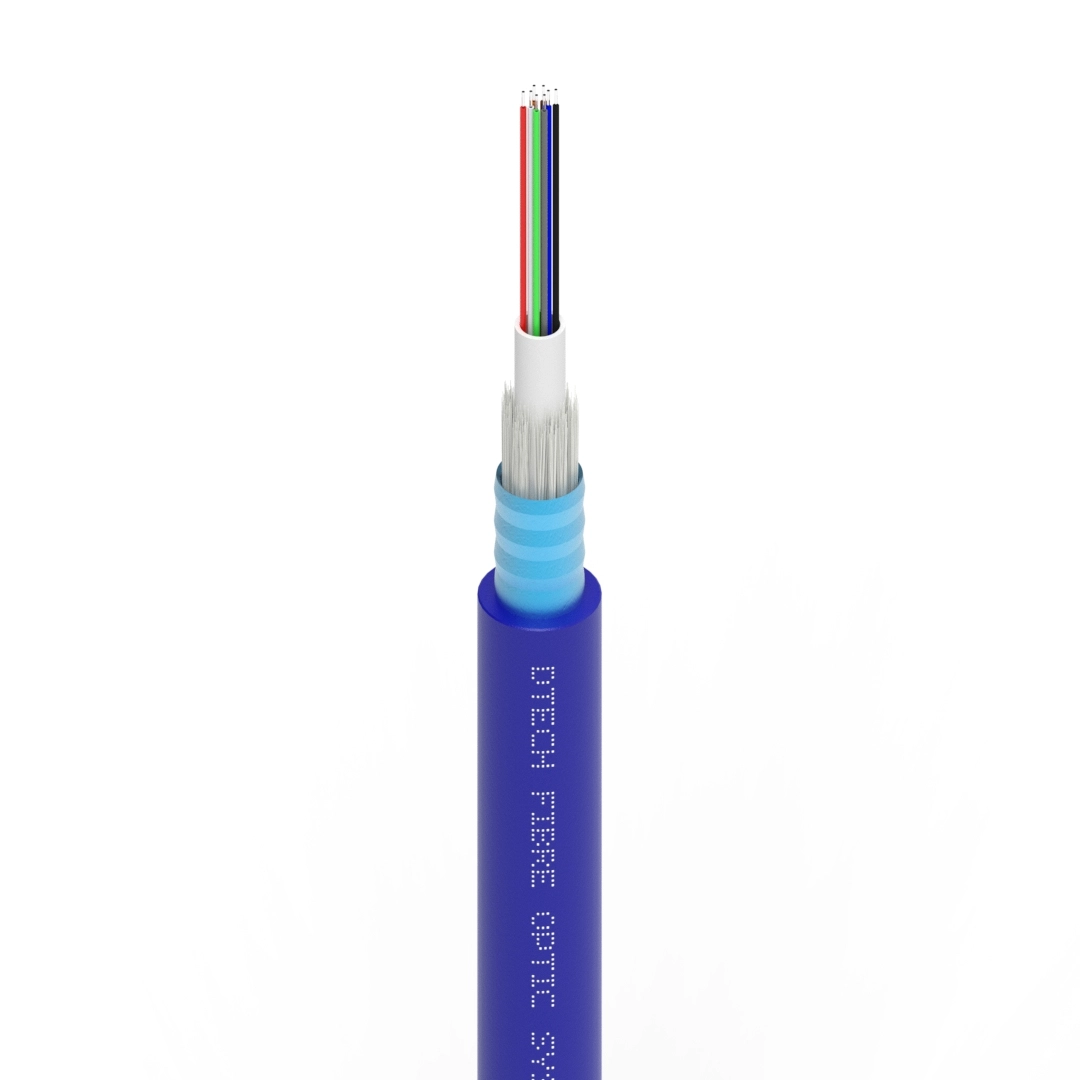

DTECH® OM4 Fibre Optic Cable CST Armoured Loose Tube 8 Fibre Internal / External LSZH Blue Eca
DTECH® OM4 Fibre Optic Cable CST Armoured Loose Tube 8 Fibre Internal / External LSZH Blue Eca - Image 2

DTECH® OM4 Fibre Optic Cable CST Armoured Loose Tube 8 Fibre Internal / External LSZH Blue Eca

MPN OM4-CST8-EBL Category Features , Brand:
Grand total

Fast UK Delivery

Free delivery on orders available

Secure Checkout

SSL protected gateway

>30YR Warranty

Performance guaranteed

  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® OM4 50/125µm loose tube multimode fibre optic cable designed for high-density installations.
  • Supports 10G, 40G and 100G Ethernet applications, delivering high-bandwidth performance for data centre and enterprise networks.
  • Bend insensitive OM4 fibre provides improved routing flexibility while maintaining low attenuation and stable signal performance.
  • LSZH (Low Smoke Zero Halogen) outer sheath minimises toxic fumes.
  • Corrugated Steel Tape (CST) armouring provides enhanced mechanical protection, making the cable suitable for direct burial and harsh environments.
  • UV stabilised, rodent resistant polymer for internal and external applications.
  • Glass yarn strength members provide additional tensile strength and protection.
Technical Product Information
Fibre ModeOM4 MultimodeFibre Count8
Fibre TypeLoose TubeLoose Tube GelThixotropic Compound
Strength MembersGlass YarnsArmouringCorrugated Steel Tape
EnvironmentDirect BurialJacket MaterialLSZH UV Stabilized
Ripcords2 Under SheathFibre Colour CodeTIA-598-D
Outer Diameter (mm)8.1 ± 0.5Weight/km (±15%)84 kg
Operating Temp-20 to +70°CMax Tensile Load500N
Crush Resistance / 10cm1000NMin Bending Radius20 / 15 x OD (Short / Long)
Proof Stress≥8.4N (100Kpsi, ≥1.0%)Attenuation at 850nm≤3.5 dB/km
Attenuation at 1300nm≤1.5 dB/kmBandwidth at 850nm≥3500 MHz.km
Bandwidth at 1300nm≥500 MHz.kmNumerical Aperture (NA)0.200 ± 0.015µm
Core Diameter50 ± 2.5µmCladding Diameter125 ± 2.0µm
Core / Clad Concentricity≤1.5µmCladding Non-Circularity≤2.0%
EuroclassEcaStandardsIEC 60793-1, IEC 60793-2, IEC 60794-3-10
RoHS ConformityYesCE MarkingYes

Frequently Bought Together ->

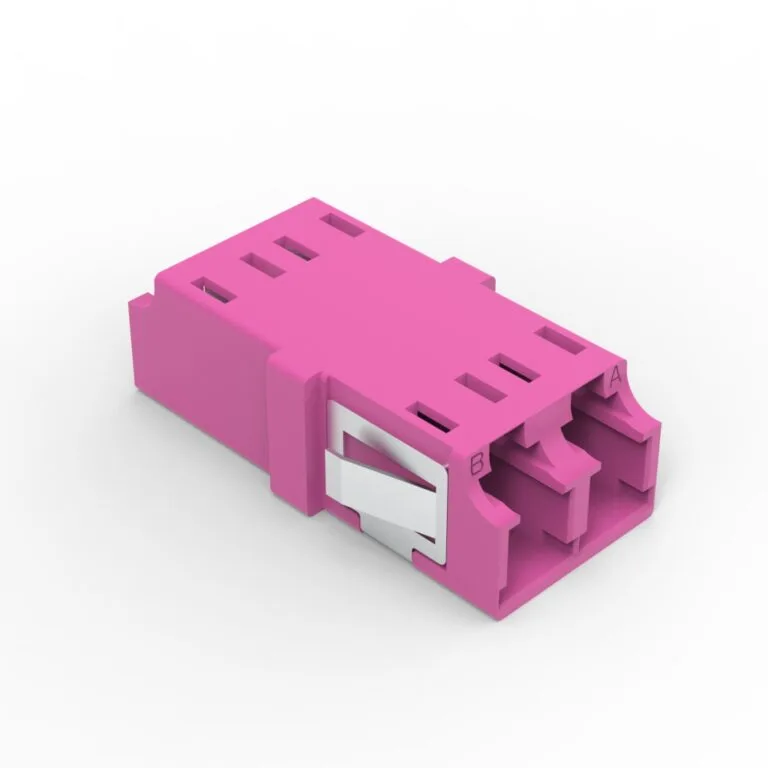

DTECH® LC UPC OM4 Flangeless Fibre Optic Adaptor Duplex Violet

Price range: £1.05 through £24.95 Ex. Vat

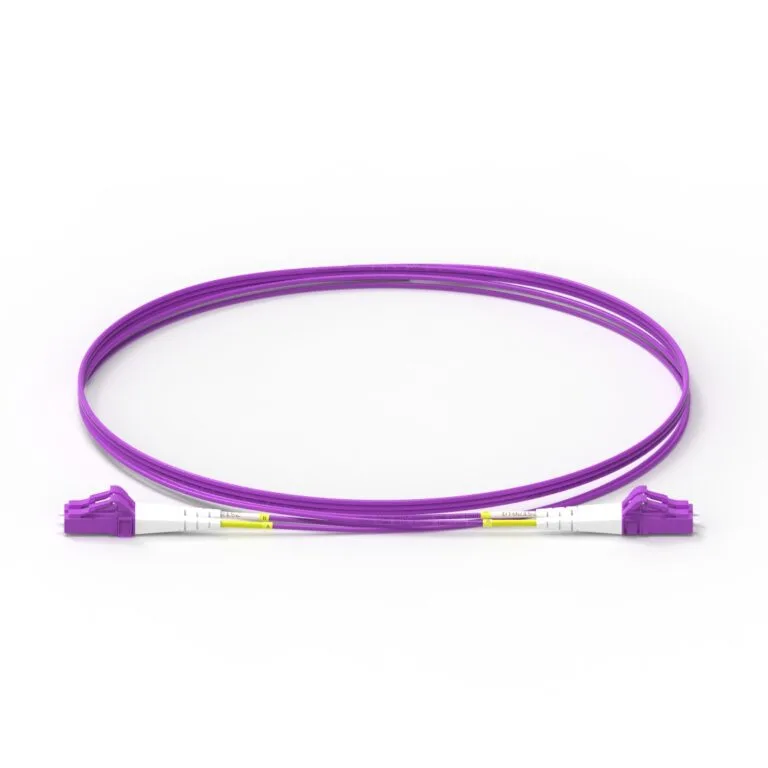

DTECH® OM4 LC UPC to LC UPC Duplex 2mm LSZH Violet 1M Fibre Optic Patch Lead

Original price was: £3.99.Current price is: £3.99. Ex. Vat

DTECH® OM4 Fibre Optic Pigtail LC UPC 0.9MM LSZH Violet 1M 12 PK

Original price was: £22.80.Current price is: £22.80. Ex. Vat

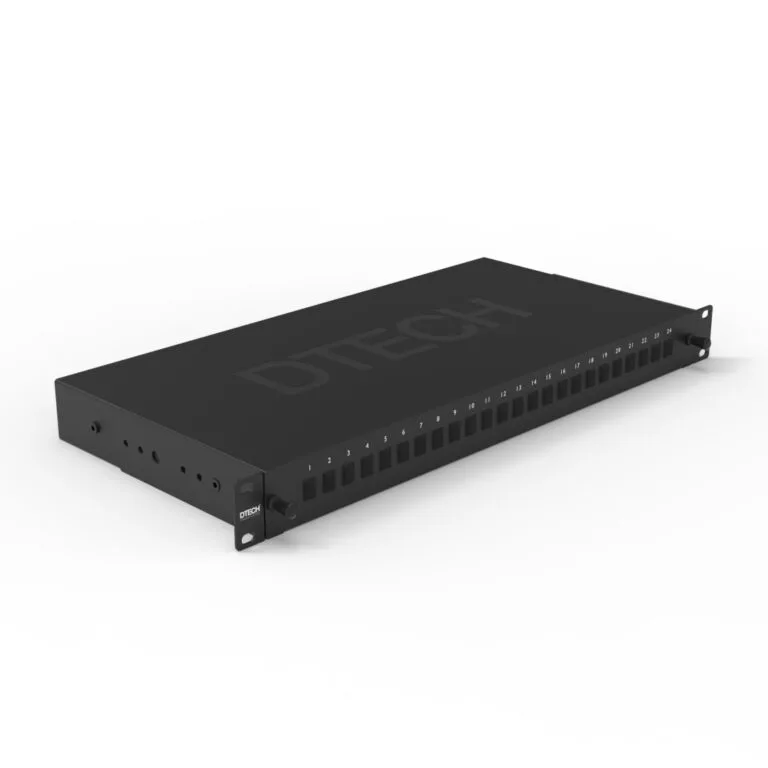

DTECH® 24/48 Fibre Optic Patch Panel Unloaded 1U Black
