DTECH® OM4 Loose Tube 8 Fibre Internal / External LSZH Black Eca P/M
DTECH® OM4 Loose Tube 8 Fibre Internal / External LSZH Black Eca P/M - Image 2

DTECH® OM4 Loose Tube 8 Fibre Internal / External LSZH Black Eca P/M

MPN OM4-LT8-EBK Category Features , , Brand:
Grand total
  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview

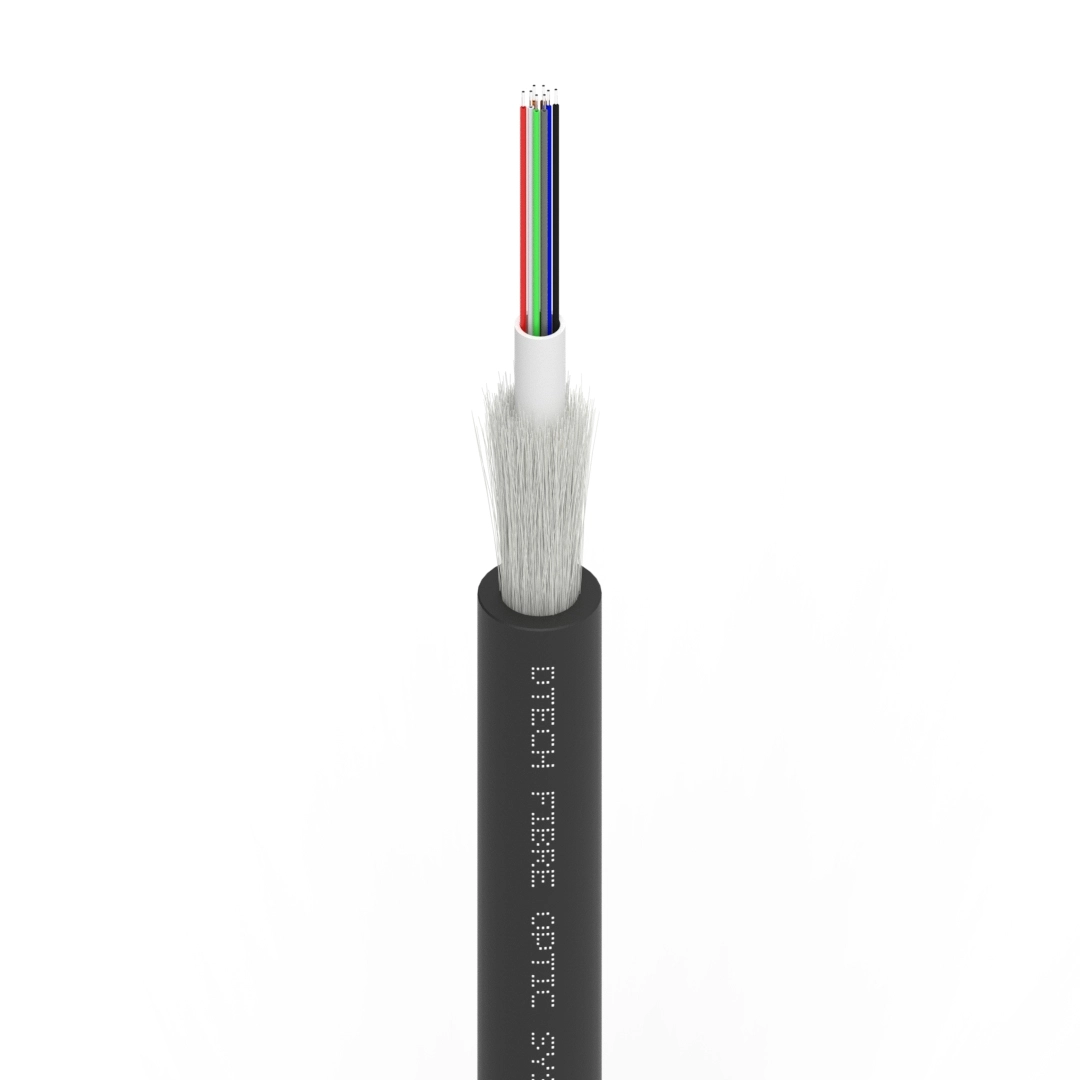

  • DTECH® OM4 50/125µm loose tube multimode fibre optic cable designed for high-density installations.
  • Supports 10G, 40G and 100G Ethernet applications, delivering high-bandwidth performance for data centre and enterprise networks.
  • Bend insensitive OM4 fibre provides improved routing flexibility while maintaining low attenuation and stable signal performance.
  • LSZH (Low Smoke Zero Halogen) outer sheath minimises toxic fumes.
  • UV stabilised, rodent resistant polymer for internal and external applications.
  • Glass yarn strength members provide additional tensile strength and protection.
Technical Product Information
Fibre ModeOM4 MultimodeFibre Count8
Fibre TypeLoose TubeLoose Tube GelThixotropic Compound
Strength MembersGlass YarnsEnvironmentInternal / External
Jacket MaterialLSZH UV StabilizedRipcords2 Under Sheath
Fibre Colour CodeTIA-598-DOuter Diameter (mm)6.4 ± 0.5
Weight/km (±15%)49 kgOperating Temp-20 to +70°C
Max Tensile Load1100NCrush Resistance / 10cm1000N
Min Bending Radius20 / 15 x OD (Short / Long)Proof Stress≥8.4N (100Kpsi, ≥1.0%)
Attenuation at 850nm≤3.5 dB/kmAttenuation at 1300nm≤1.5 dB/km
Bandwidth at 850nm≥3500 MHz.kmBandwidth at 1300nm≥500 MHz.km
Numerical Aperture (NA)0.200 ± 0.015µmCore Diameter50 ± 2.5µm
Cladding Diameter125 ± 2.0µmCore / Clad Concentricity≤1.5µm
Cladding Non-Circularity≤2.0%EuroclassEca
StandardsIEC 60793-1, IEC 60793-2, IEC 60794-3-10RoHS ConformityYes
CE MarkingYes
