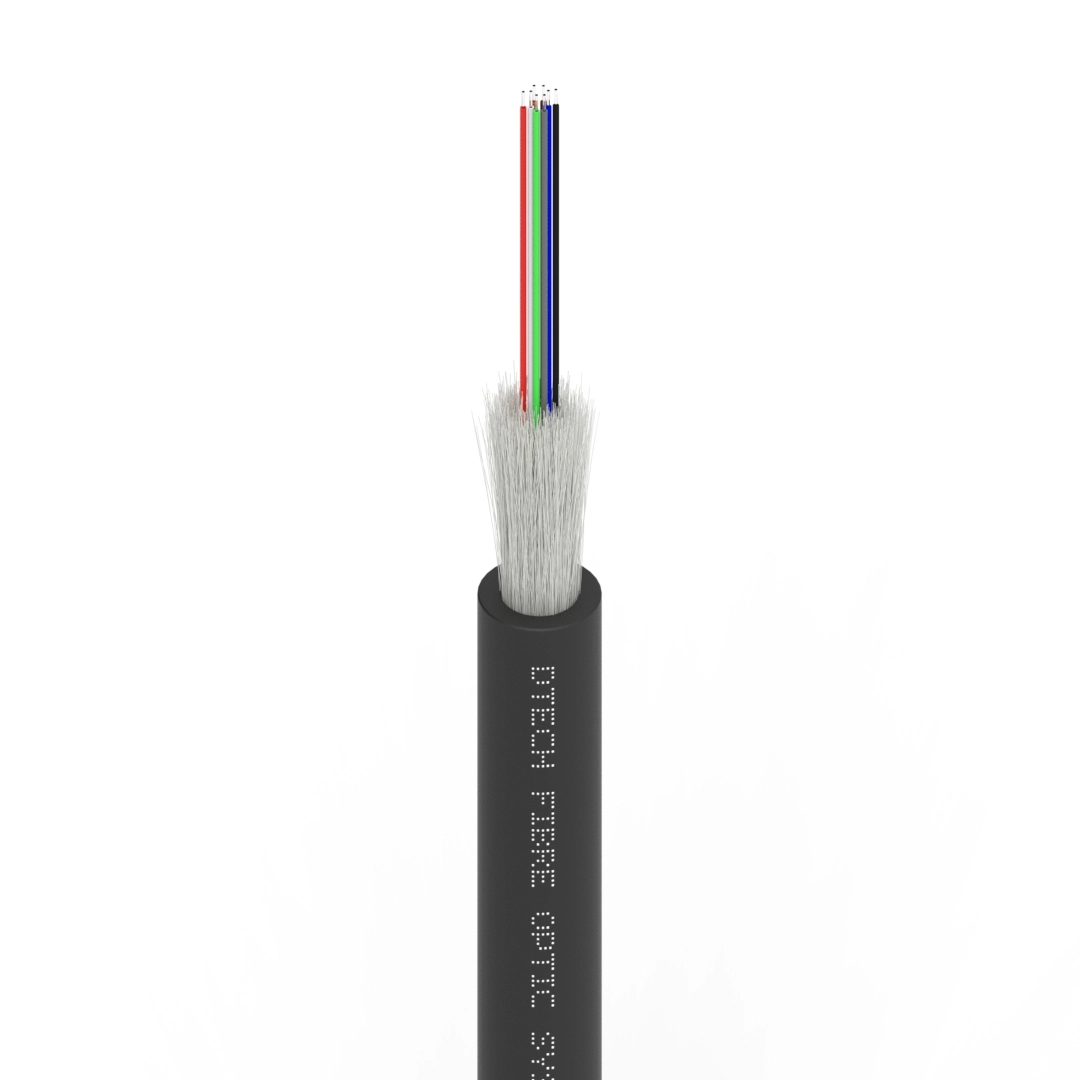

DTECH® OM4 Tight Buffered 8 Fibre LSZH Black Cca P/M
DTECH® OM4 Tight Buffered 8 Fibre LSZH Black Cca P/M - Image 2

DTECH® OM4 Tight Buffered 8 Fibre LSZH Black Cca P/M

MPN OM4-TB8-CBK Category Features , , Brand:
Grand total
  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® OM4 50/125µm tight buffered multimode fibre optic cable designed for high-density installations.
  • Supports 10G, 40G and 100G Ethernet applications, delivering high-bandwidth performance for data centre and enterprise networks.
  • Bend insensitive OM4 fibre provides improved routing flexibility while maintaining low attenuation and stable signal performance.
  • Cca Euroclass rated Low Smoke Zero Halogen Jacket for installations that require superior fire performance, suitable for reducing flame spread in permanent, high-risk, or public building installations.
  • UV stabilised, rodent resistant polymer for internal and external applications.
  • Glass yarn strength members provide additional tensile strength and protection.
Technical Product Information
Fibre ModeOM4 MultimodeFibre Count8
Fibre TypeTight BufferedStrength MembersGlass Yarns
EnvironmentInternal / ExternalJacket MaterialLSZH UV Stabilized
Ripcords2 Under SheathFibre Colour CodeTIA-598-D
Outer Diameter (mm)6.6Weight/km (±15%)45 kg
Operating Temp-20 to +70°CMax Tensile LoadShort term: 660N / Long term: 200N
Crush Resistance / 10cm1000NMin Bending Radius20 / 15 x OD (Short / Long)
Proof Stress≥8.4N (100Kpsi, ≥1.0%)Attenuation at 850nm≤3.5 dB/km
Attenuation at 1300nm≤1.5 dB/kmBandwidth at 850nm≥3500 MHz.km
Bandwidth at 1300nm≥500 MHz.kmNumerical Aperture (NA)0.200 ± 0.015µm
Core Diameter50 ± 2.5µmCladding Diameter125 ± 2.0µm
Core / Clad Concentricity≤1.5µmCladding Non-Circularity≤2.0%
Reaction to Fire (EN 13501-6)CcaSmoke Development (EN 13501-6)s1a
Flaming Droplets (EN 13501-6)d0Acidity (EN 13501-6)a1
StandardsIEC 60793-1, IEC 60793-2, IEC 60794-3-10RoHS ConformityYes
CE MarkingYes

Frequently Bought Together ->

DTECH® 24/48 Fibre 1U Patch Panel Unloaded Black

Original price was: £35.95.Current price is: £35.95. Ex. Vat

DTECH® OM4 12PK Pigtail LC UPC 0.9MM LSZH Violet 1M

Original price was: £15.45.Current price is: £15.45. Ex. Vat

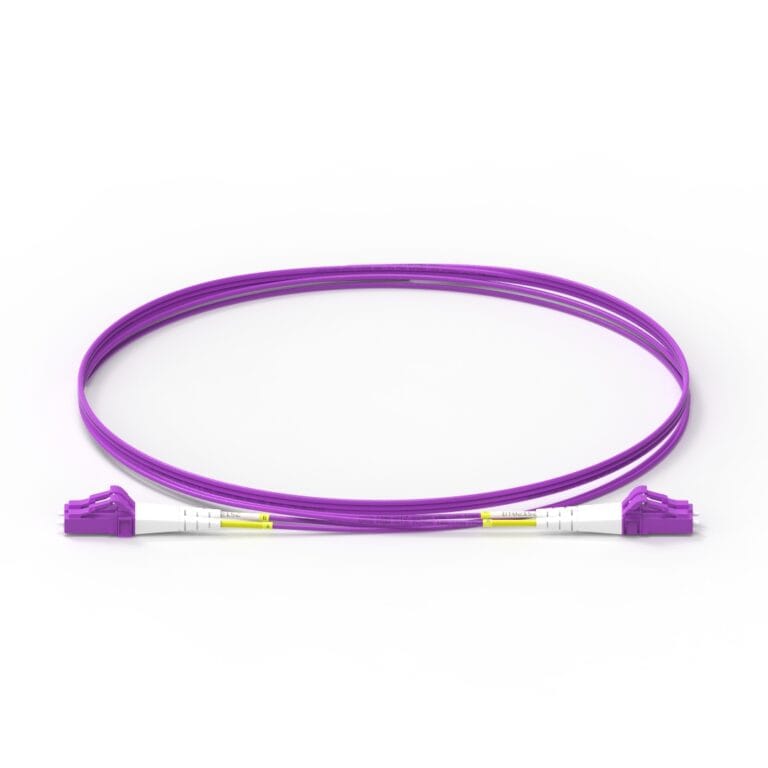

DTECH® OM4 LC UPC to LC UPC Duplex 2mm LSZH Violet 1M Patch Lead
