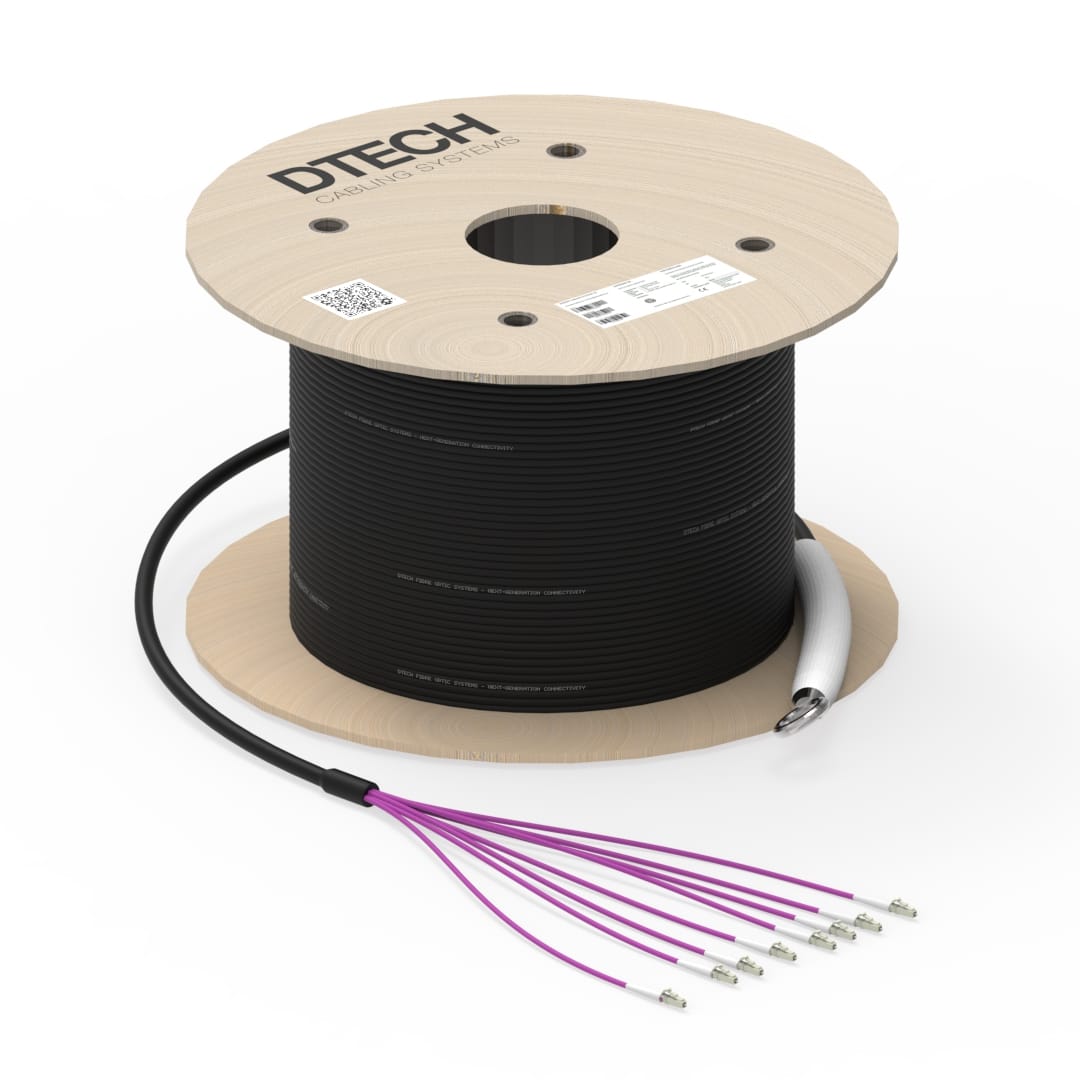

DTECH® OM4 Fibre Optic Cable Tight Buffered Pre Terminated 4-24 Fibre Cca

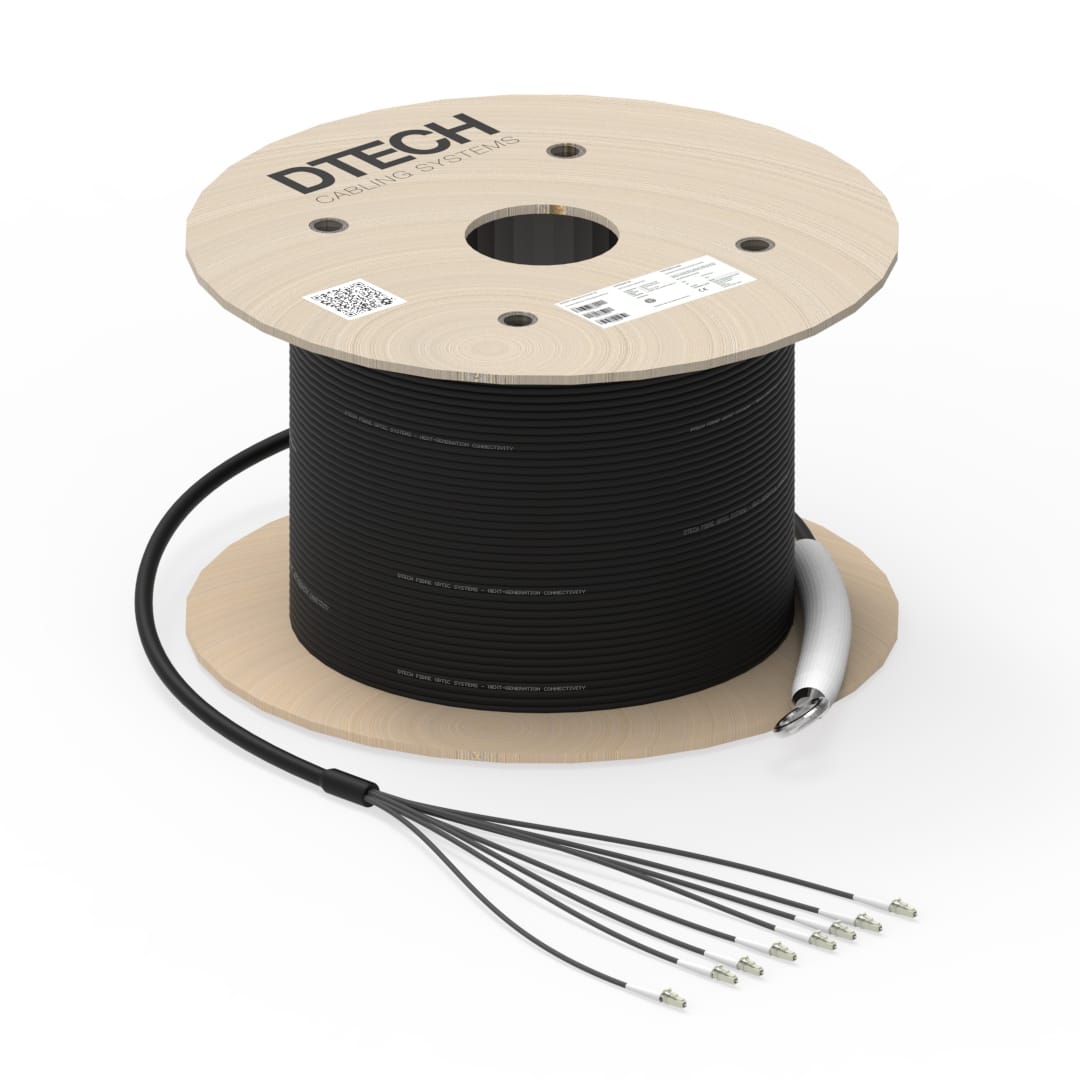

DTECH® OM4 Fibre Optic Cable Tight Buffered Pre Terminated 4-24 Fibre Cca - Image 2

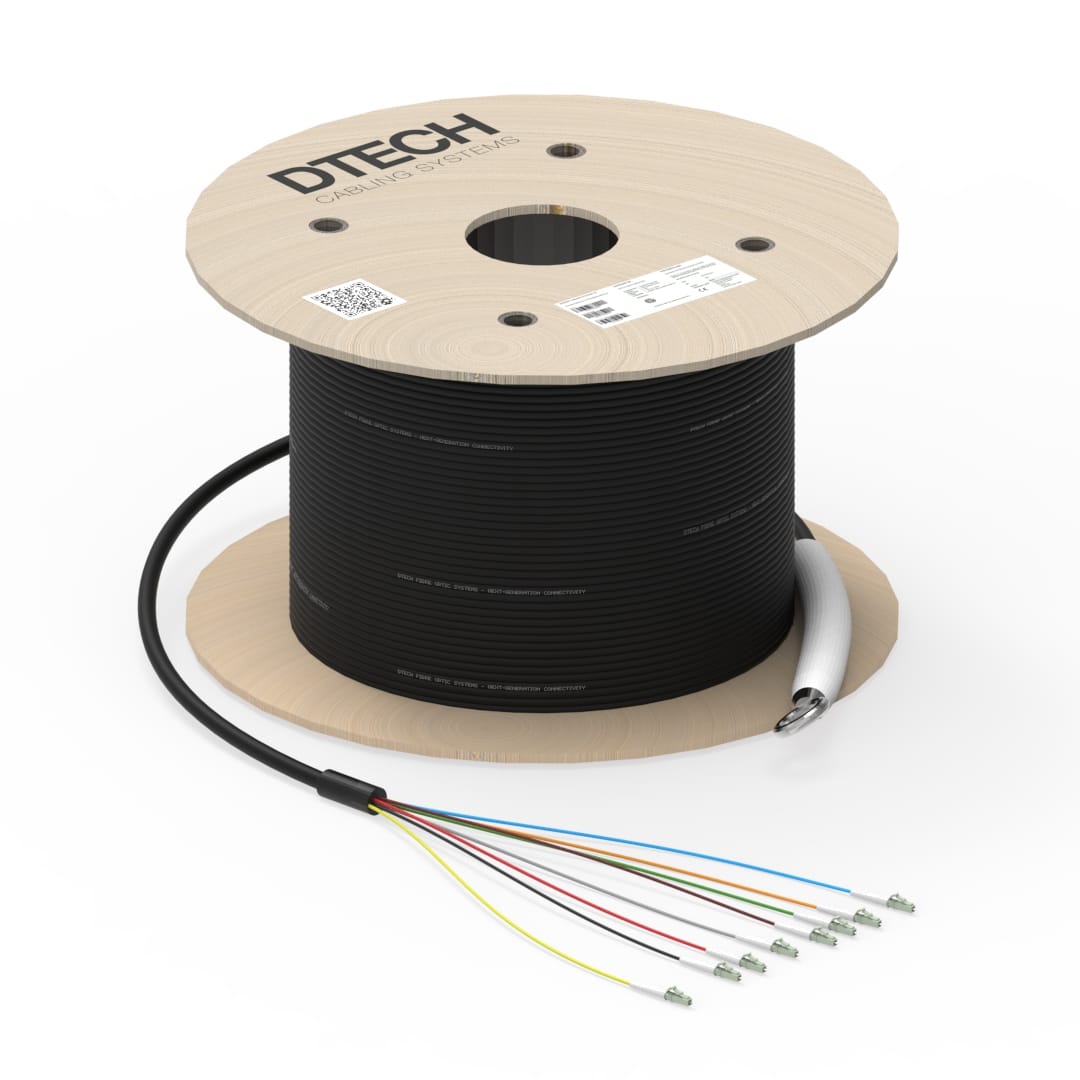

DTECH® OM4 Fibre Optic Cable Tight Buffered Pre Terminated 4-24 Fibre Cca - Image 3

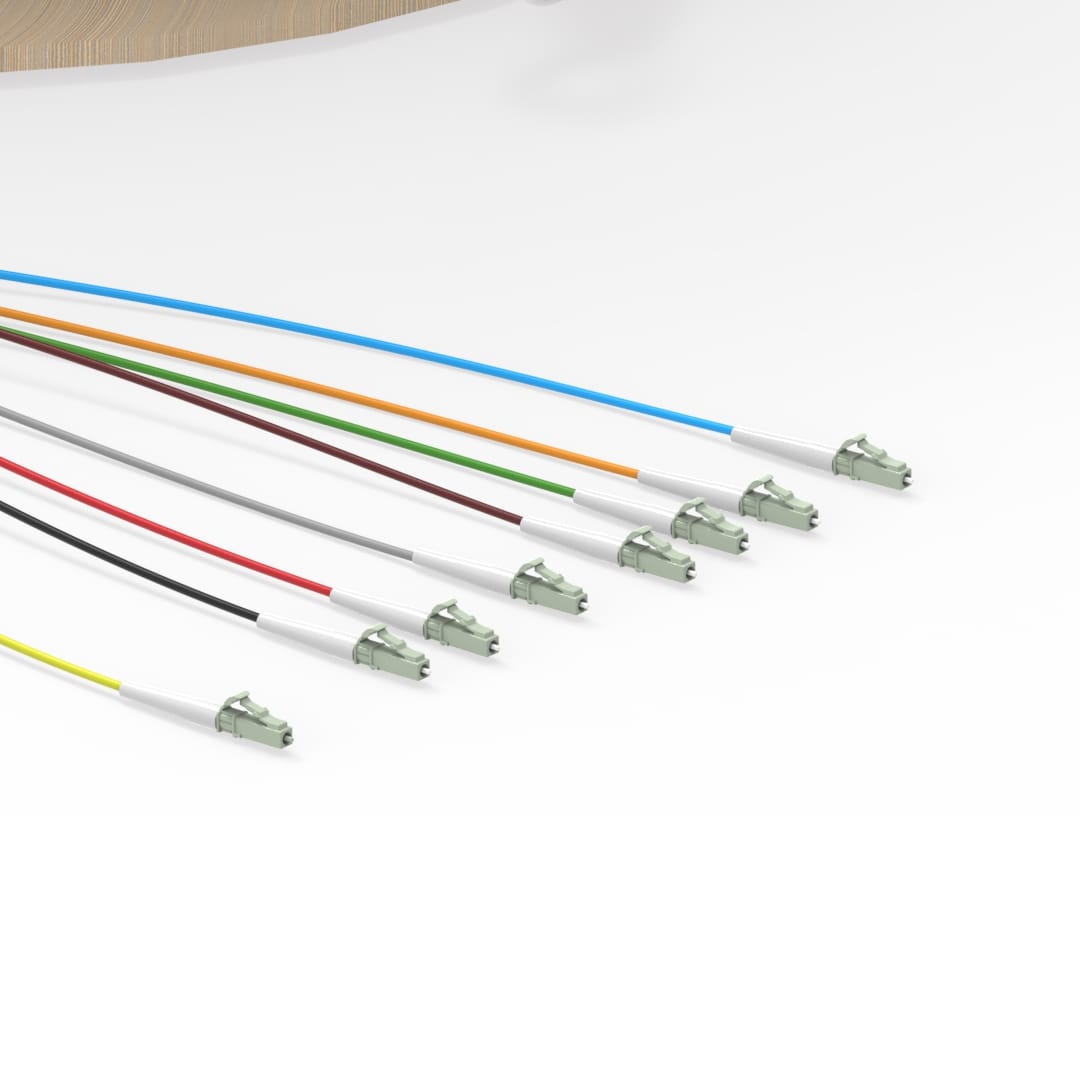

DTECH® OM4 Fibre Optic Cable Tight Buffered Pre Terminated 4-24 Fibre Cca - Image 4

DTECH® OM4 Fibre Optic Cable Tight Buffered Pre Terminated 4-24 Fibre Cca

MPN PRE-OM4-TB Category Features , , Brand:
Grand total

Fast UK Delivery

Free delivery on orders available

Secure Checkout

SSL protected gateway

>30YR Warranty

Performance guaranteed

  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® OM4 50/125µm tight buffered multimode fibre optic cable designed for high-density installations.
  • Bend insensitive OM4 fibre provides improved routing flexibility while maintaining low attenuation and stable signal performance.
  • Cca Euroclass rated Low Smoke Zero Halogen Jacket for installations that require superior fire performance, suitable for reducing flame spread in permanent, high-risk, or public building installations.
  • Factory terminated and tested for reliable, certified plug and play connectivity.
Technical Product Information
Fibre ModeOM4 MultimodeFibre TypeTight Buffered
Strength MembersGlass YarnsEnvironmentInternal / External
Jacket MaterialLSZH UV StabilizedRipcords2 Under Sheath
Fibre Colour CodeTIA-598-DOperating Temp-20 to +70°C
Crush Resistance / 10cm1000NMin Bending Radius20 / 15 x OD (Short / Long)
Proof Stress≥8.4N (100Kpsi, ≥1.0%)Attenuation at 850nm≤3.5 dB/km
Attenuation at 1300nm≤1.5 dB/kmBandwidth at 850nm≥3500 MHz.km
Bandwidth at 1300nm≥500 MHz.kmNumerical Aperture (NA)0.200 ± 0.015µm
Core Diameter50 ± 2.5µmCladding Diameter125 ± 2.0µm
Core / Clad Concentricity≤1.5µmCladding Non-Circularity≤2.0%
EuroclassEcaStandardsIEC 60793-1, IEC 60793-2, IEC 60794-3-10
RoHS ConformityYesCE MarkingYes
