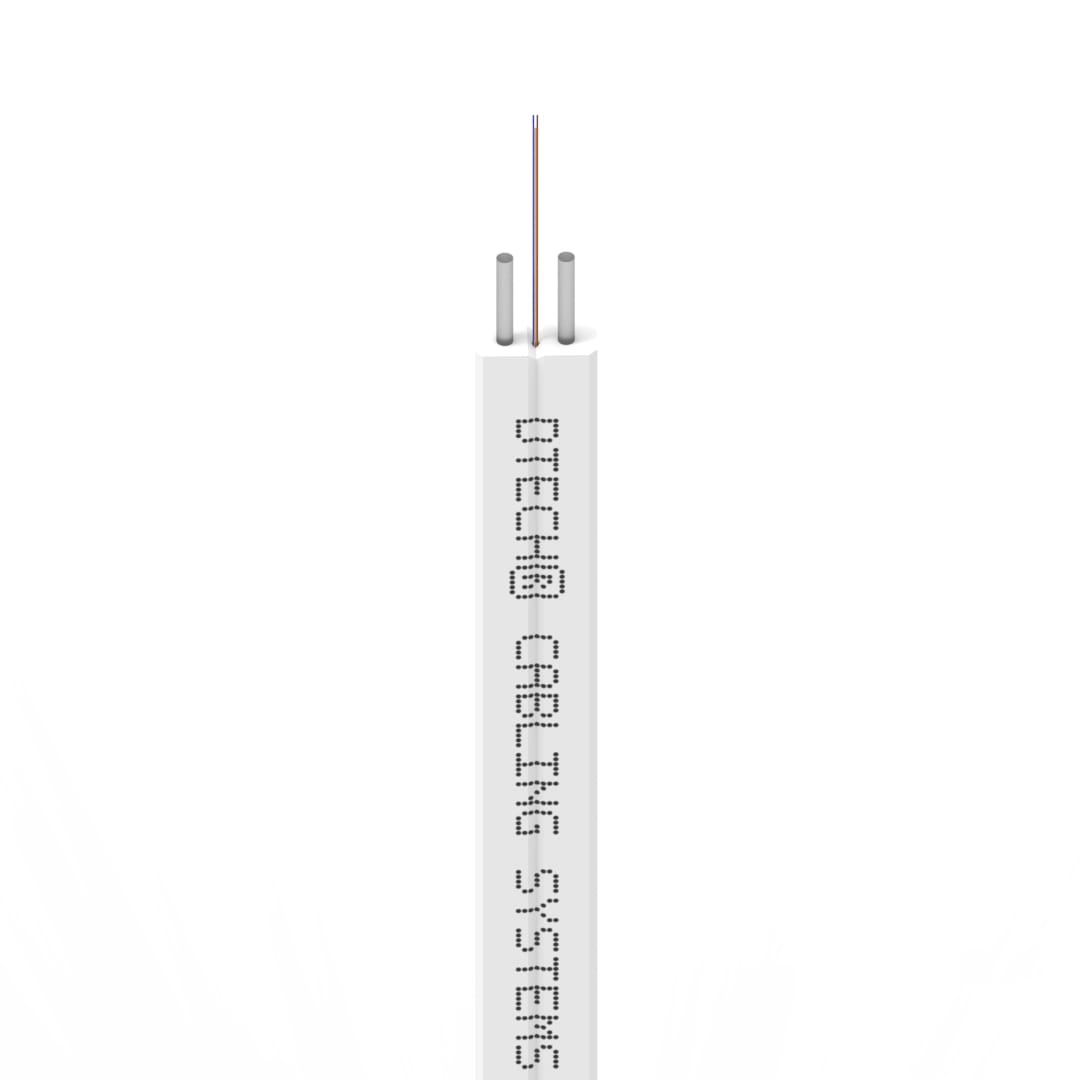

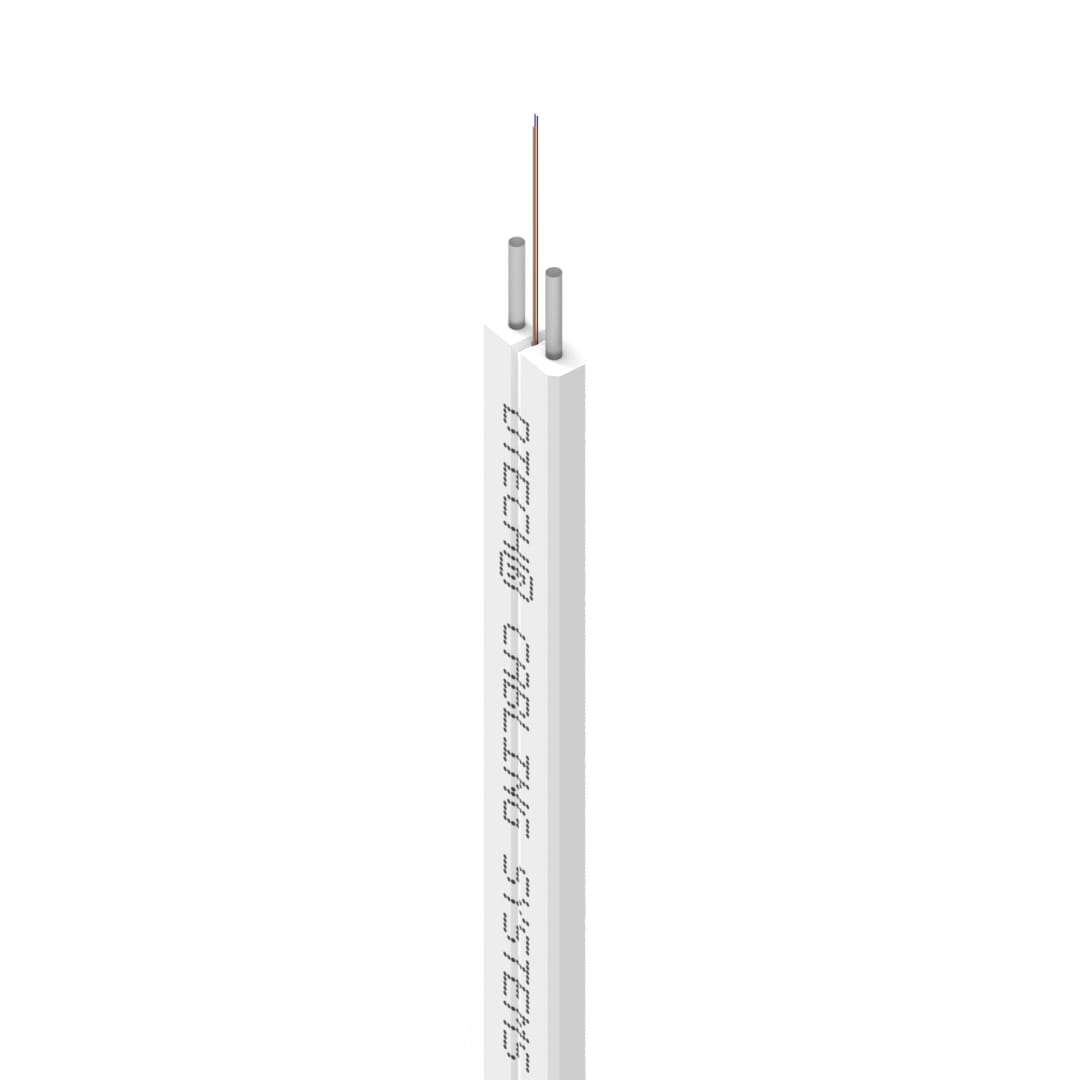

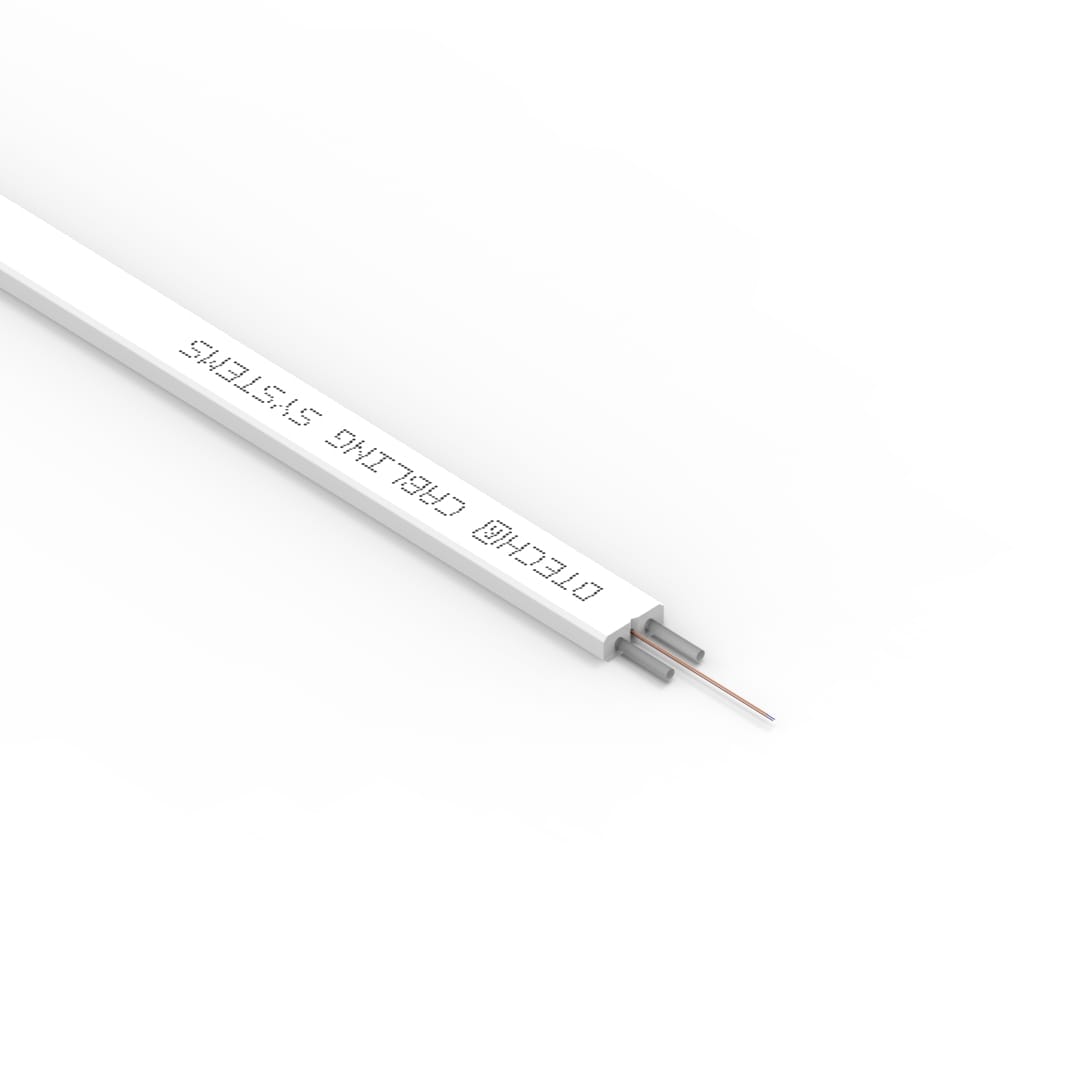

DTECH® OS2 4 Fibre Internal Drop Cable G.657.A2 LSZH White

DTECH® OS2 4 Fibre Internal Drop Cable G.657.A2 LSZH White

MPN OS2-DR-INT-4 Category Features , Brand:
Grand total
  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® OS2 9/125µm G.657.A2 singlemode fibre optic drop cable designed for internal installations and FTTH applications.
  • G.657.A2 bend insensitive fibre allows tight bending without signal loss, ideal for confined installation spaces.
  • Fibre Reinforced Plastic (FRP) strength members provide added tensile strength and protection during installation.
  • Low Smoke Zero Halogen (LSZH) jacket reduces smoke and toxic emissions, making it suitable for indoor environments.
  • Lightweight and flexible design simplifies handling, routing and termination.
Technical Product Information
Fibre ModeOS2 SinglemodeFibre TypeG.657.A2
Fibre Size9/125µmCladding Non-Circularity≤1.0%
Coating-Cladding Concentricity≤12.5µmProof Stress≥1.5% Strain
Tensile Load (Long Term)150NTensile Load (Short Term)300N
Crush Resistance (Long Term)1000NCrush Resistance (Short Term)2000N
Min Bending Radius15mmOperating Temperature-20°C to +60°C
Attenuation at 1310nm≤0.40 dB/kmAttenuation at 1550nm≤0.30 dB/km
Macro Bending Loss≤0.50 dB @ Ø30mm 10 Turns at 1550nmChromatic Dispersion at 1310nm≤3.5 ps/nm.km
Chromatic Dispersion at 1550nm≤18 ps/nm.kmCut-off Wavelength≤1260nm
Zero Dispersion Slope≤0.092 ps/nm² · kmZero Dispersion Wavelength1300~1324nm
StandardsISO/IEC 11801, ITU-T G.657.A2RoHS ConformityYes
CE MarkingYes
