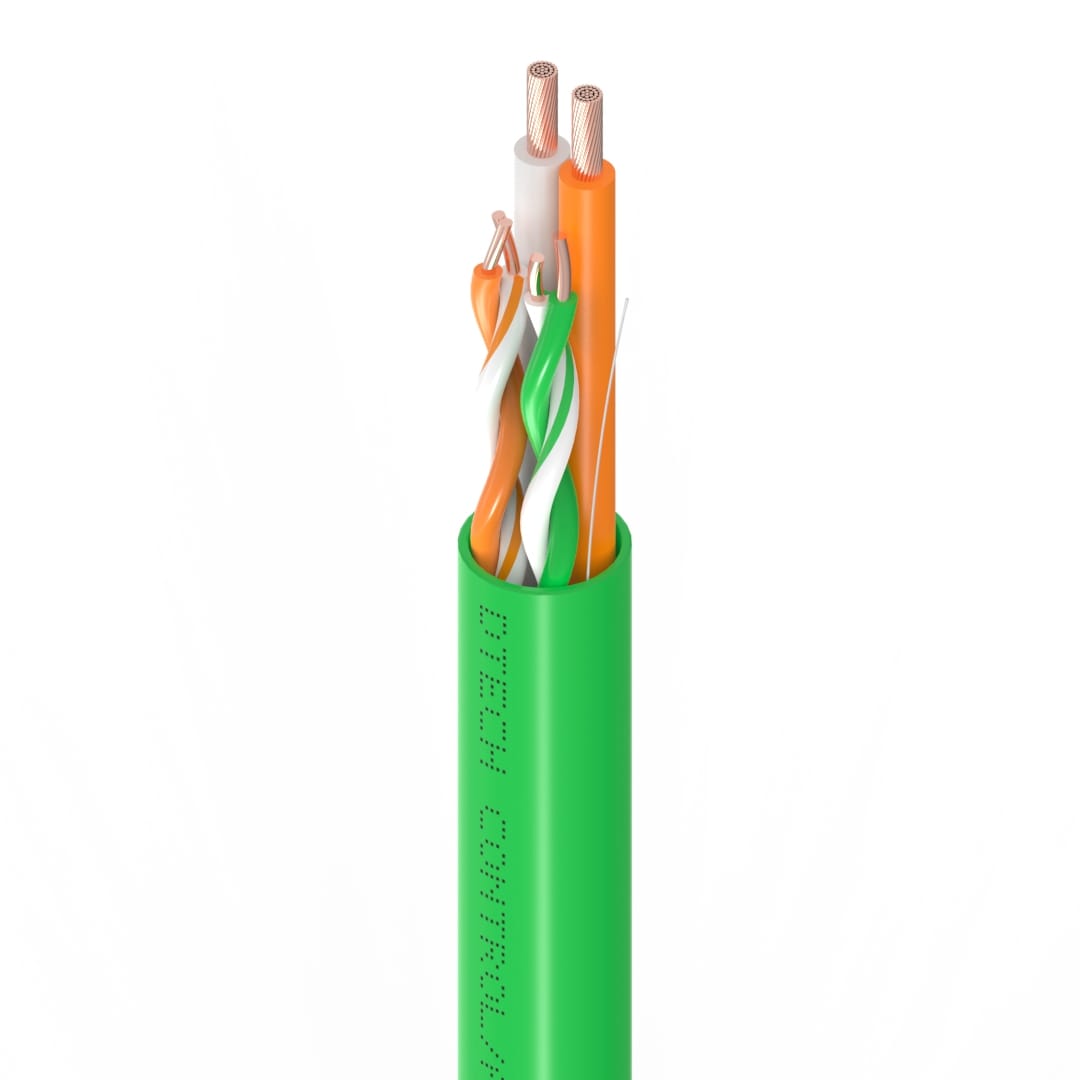

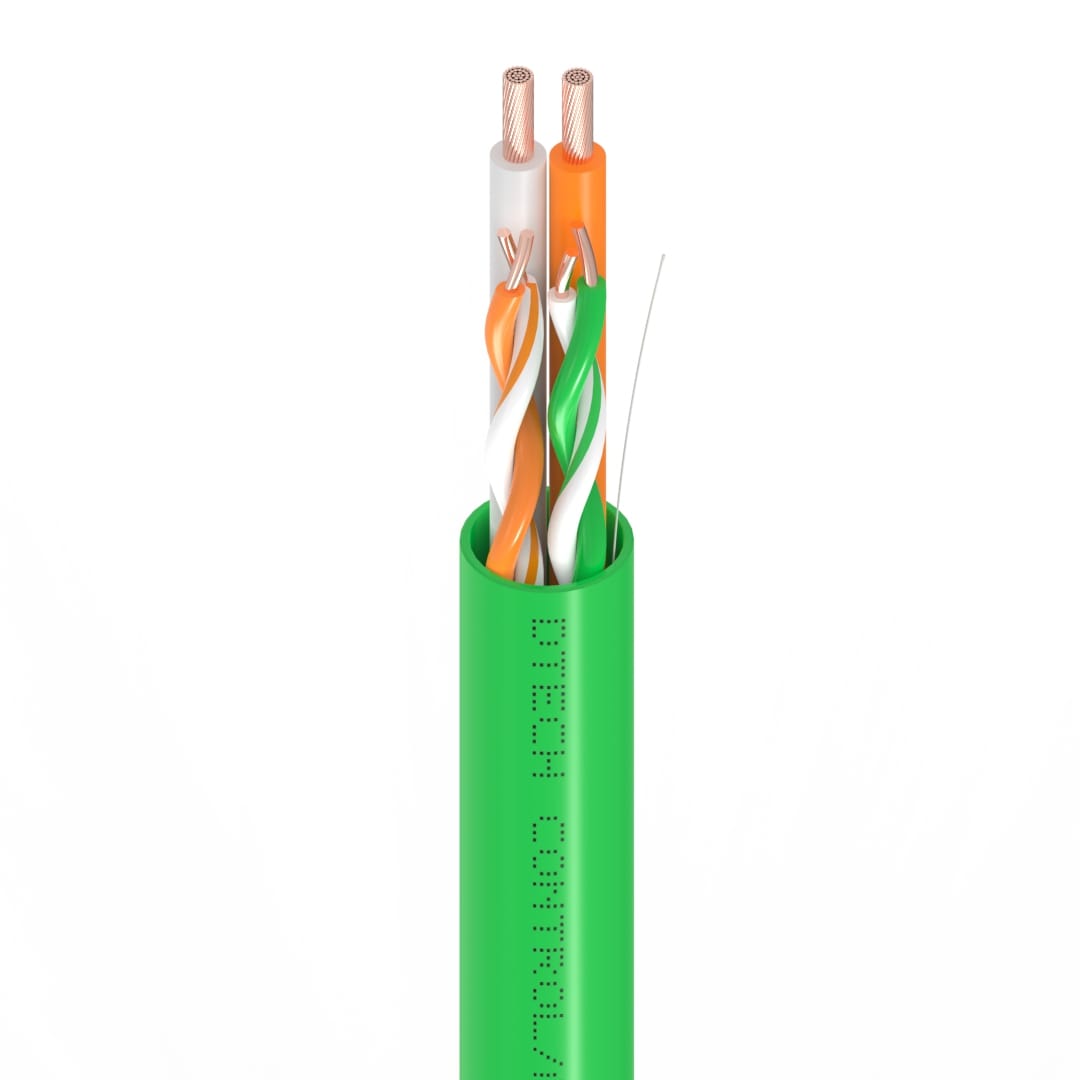

DTECH® Tree Cable (Loxone) 2x1.5mm² + 2x2x0.6mm² LSZH Green Red
DTECH® Tree Cable (Loxone) 2x1.5mm² + 2x2x0.6mm² LSZH Green Red - Image 2

DTECH® Tree Cable (Loxone) 2×1.5mm² + 2x2x0.6mm² LSZH Green Red

MPN 2PR-TR15-ZH Category Features , , Brand:
  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® Tree Cable combines 2×1.5mm² power cores and 2x2x0.6mm² data pairs, engineered for building automation systems requiring power and data over a single cable run.
  • Smart Building Ready for use with Tree Bus devices, smart lighting, motorised blinds, HVAC controls, and sensor networks requiring simultaneous power and data.
  • Green/red stripe identification enables clear colour-coded cable management and polarity identification during installation and future maintenance.
  • LSZH jacket minimises toxic and corrosive gas emissions in the event of fire, suitable for residential, commercial, and public building smart automation projects.
  • Fully compatible with Loxone systems.
Technical Product Information
Data Pairs
Number of Pairs2Conductor MaterialBare Solid Copper
Conductor Size0.6mmInsulation MaterialLSZH
Power Cores
Number of Cores2Conductor MaterialBare Stranded Copper
Conductor Size1.5mm²Core InsulationLSZH
Overall Construction
Jacket MaterialLSZHJacket ColourGreen / Red Stripe
Cable Diameter (mm)7.7 ± 0.2Min Bend Radius10 x OD
Operating Temperature-30°C to +70°CWeight101 kg/km
Voltage Rating200VNominal Resistance (1.5mm²)<13.3 Ω/km
Nominal Resistance (0.6mm)<65.5 Ω/kmInsulation Resistance>200 MΩ.M
RoHS ConformityYesCE MarkingYes
