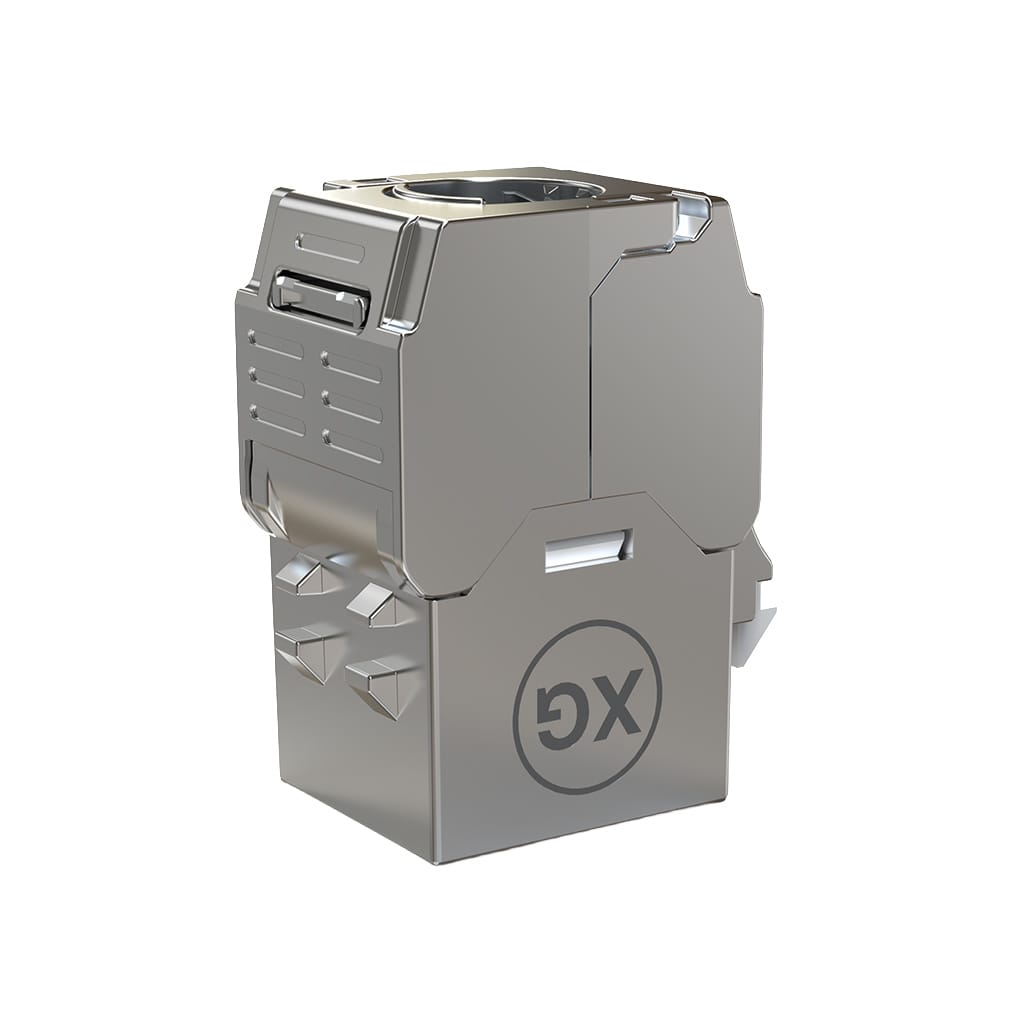

DTECH® XG® Cat 6/6a (Quick-Lock™) Toolless STP Keystone Metal 22-24AWG

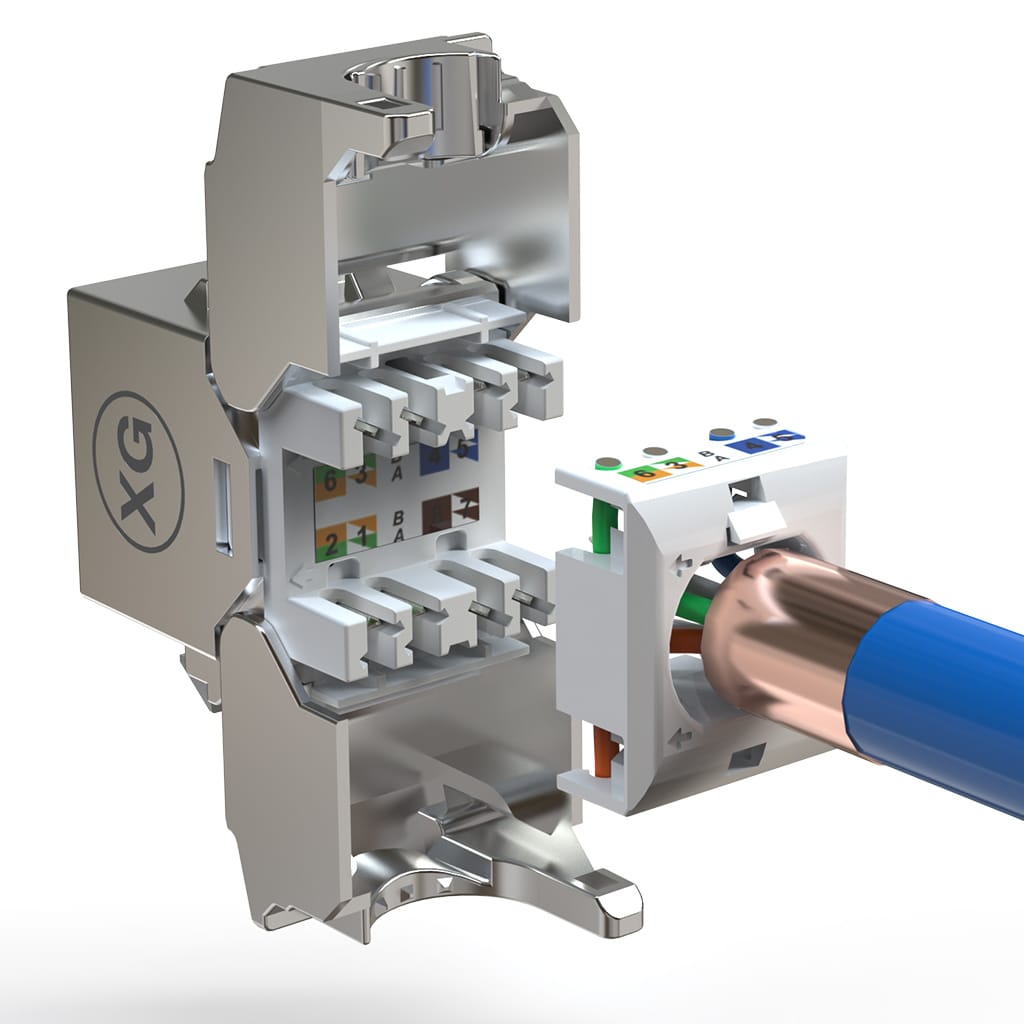

DTECH® XG® Cat 6/6a (Quick-Lock™) Toolless STP Keystone Metal 22-24AWG - Image 2

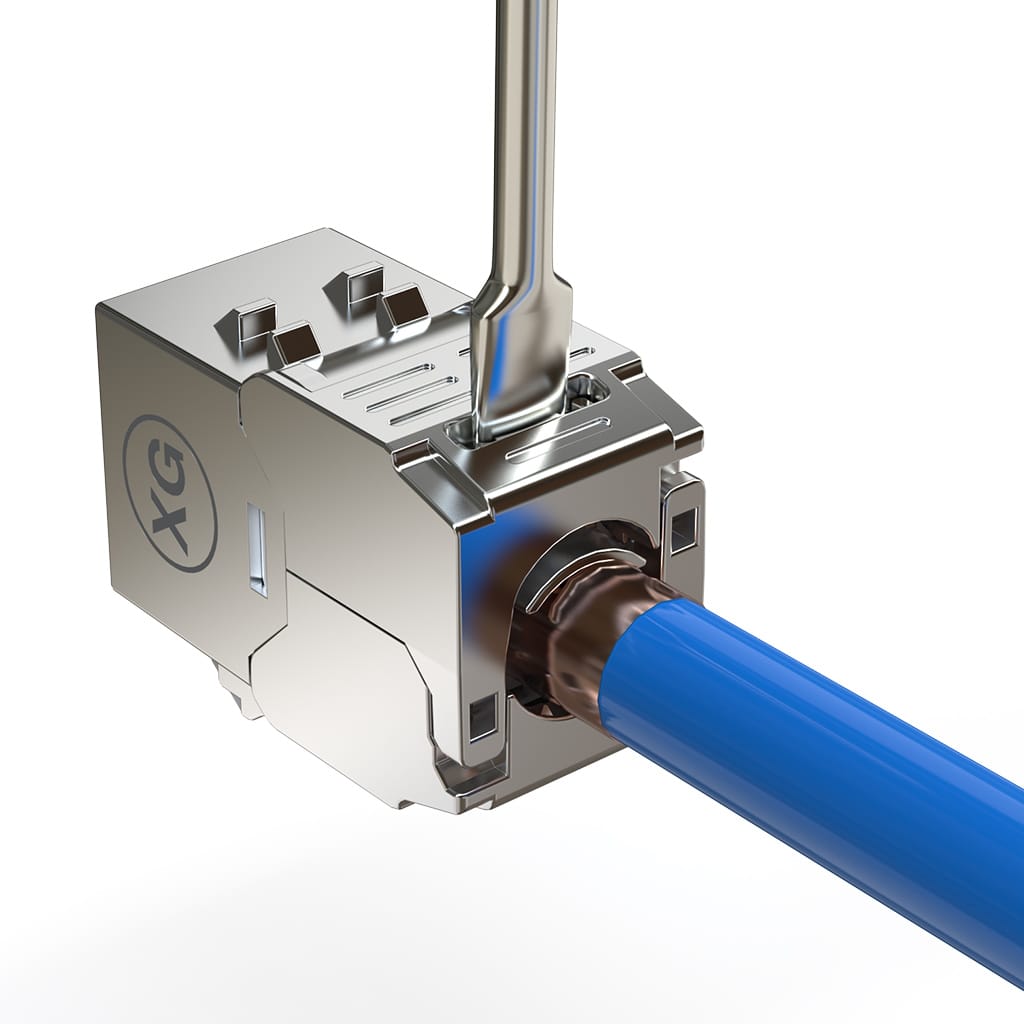

DTECH® XG® Cat 6/6a (Quick-Lock™) Toolless STP Keystone Metal 22-24AWG - Image 3

DTECH® XG® Cat 6/6a (Quick-Lock™) Toolless STP Keystone Metal 22-24AWG

MPN MC10G-TLF-QL Category Features , , Brand:
  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • Industry-leading DTECH® XG® STP keystone module for Category 6 / 6a, engineered to deliver exceptional performance with headroom beyond Class Ea requirements.
  • Independently certified for Class Ea compliance by EC, ensuring verified, standards-compliant performance.
  • Ultra short form factor enables installation in the most space-constrained environments, ideal for high-density patching applications.
  • Innovative QuickLock mechanism provides a secure termination without the need for zip ties, significantly reducing installation time.
  • Advanced internal PCB design with full shielding minimises NEXT, FEXT and return loss, providing superior signal integrity and stability in high-interference environments.
  • Suitable for 22–24AWG solid conductors and 23-24 stranded conductors, delivering secure, consistent and reliable IDC termination.
  • Tool free design and clearly marked for both T568A and T568B standards for quick terminations.
Technical Product Information
Connector TypeRJ45 8P8CShieldingYes
Termination TypeIDC PunchdownWiring SpecificationT568A / T568B
locking MechanismQuick-Lock MechanismForm FactorUltra Low-Profile
Tool-FreeYesInsertion MethodClip-In
Contact Compatibility22 to 24AWG (0.45mm - 0.65mm)Cable OD5.0mm to 8.5mm
RJ45 Contact MaterialPhosphor Bronze, 50µ Gold PlatedIDC MaterialPhosphor Bronze Tin Plated
Module MaterialZinc AlloyMating Durability750 Times Min
Contact Resistance20 MΩ MAXInsulation Resistance500 MΩ MIN @ 500V DC
Current Rating1.5APoEPoE++
Operating Temperature-10°C to +60°CLength28.11mm
Width14.76mmHeight19.55mm
StandardISO 11801 Class EARoHS ConformityYes
CE MarkingYes
