Industrial
Flexible PVC

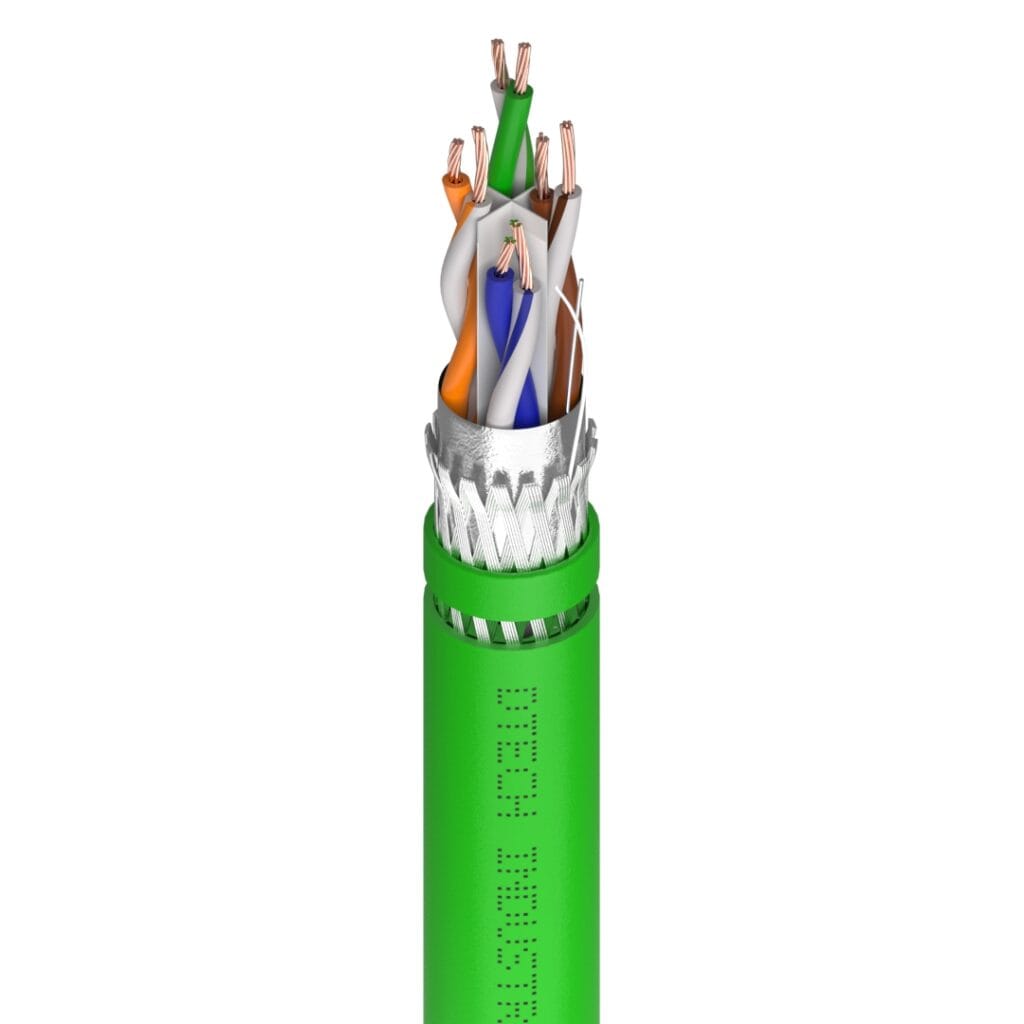

DTECH® Cat 5e SF/UTP OFC Industrial Grade Soft PVC Green

DTECH® Cat 5e SF/UTP industrial cable with combined braid and foil shielding plus a flexible soft-PVC jacket. Built for reliable Fast Ethernet on factory floors and machinery in electrically noisy environments.

MPN

IND-C5-PVC-SF-GN

Category

5e

Shielding

SF/UTP

Jacket Material

Flexible PVC

Bending Radius

4 / 8 x Diameter (Fixed / Flexing)

Environment

Harsh Environments

Use Cases

Factory Floor, Industrial Networks, High EMI Zones

KEY FEATURES

High Performance Connectivity

GigabitFull 100mGigabitFull 100mIndustrialHeavy-Duty BuildIndustrialHeavy-Duty BuildPVCEasy to InstallPVCEasy to InstallOilPlant-Floor ReadyOilPlant-Floor ReadyShieldedInterference-FreeShieldedInterference-Free
Enquire
Contact Sales
Available for direct enquiry. Speak to our team for current supply, project pricing or a scheduled delivery.
Enquire Add to Project Enquiry
Contact Sales
Enquire
Contact Sales
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS
  • DTECH® Cat 5e SF/UTP industrial bulk cable designed for reliable Fast Ethernet in demanding factory floor and machine building installations.

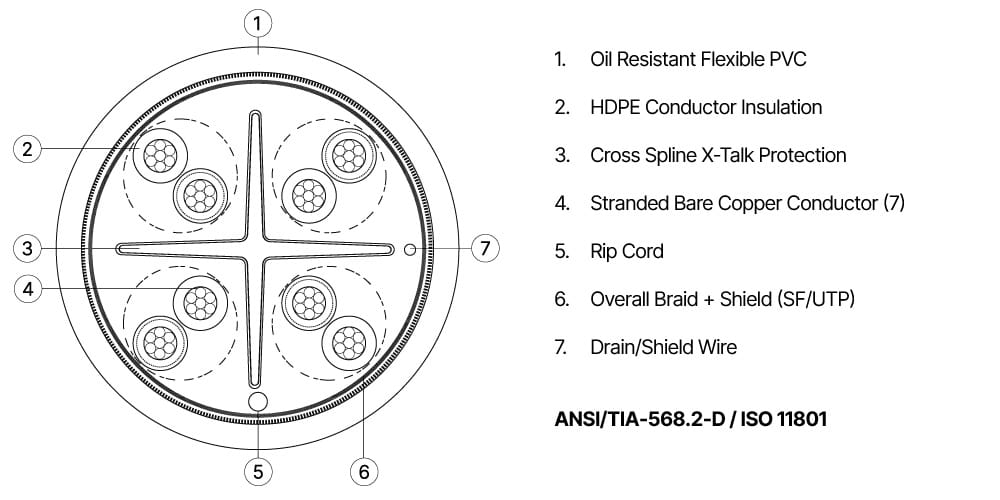

  • SF/UTP construction combines an overall braided screen and foil shield for effective EMI protection in electrically noisy industrial environments.
  • Highly flexible stranded OFC copper construction ensures consistent signal integrity under continuous mechanical stress.
  • Oil, notch, and abrasion resistant flexible PVC outer jacket provides solid durability and flexibility for use in dry, damp and harsh environments.
  • Supports data transmission speeds of up to 1 Gbps at 100MHz in compliance with ISO/IEC 11801 Class D.
  • Well suited for semi moving applications, EtherCAT, EtherNet/IP, PROFINET and general-purpose industrial Ethernet deployments.
3RD PARTY COMPLIANCE
ISO/IEC Class D

Rated Product.

DTECH® Warranty

5 YR Industrial Warranty.

CPR Eca

Euroclass 50575.

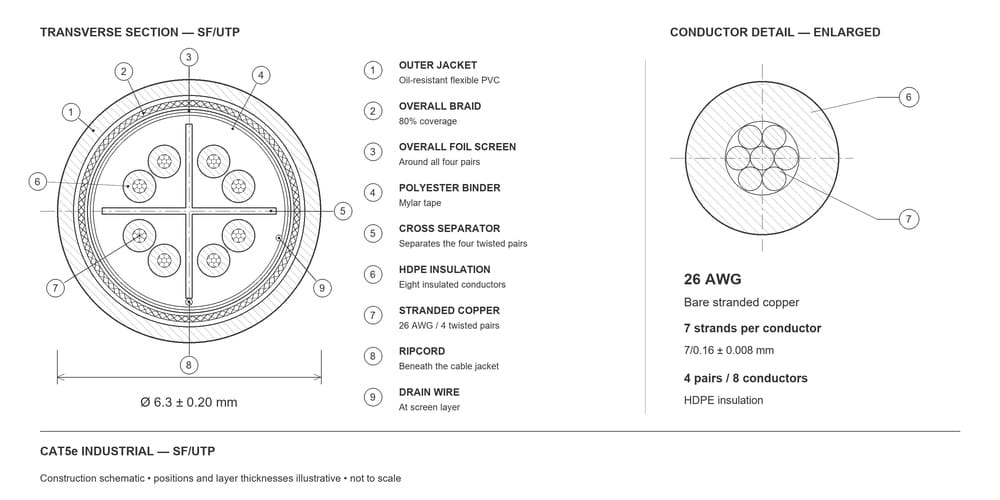

Category5eShielding TypeSF/UTP
Jacket MaterialOil, Notch, Abrasive Resistant PVCCore InsulationHDPE
Conductor MaterialBare Stranded CopperWire Gauge26AWG
Number of Conductors4 PairsCable Outer Diameter (mm)6.3 ± 0.20
Rated Bandwidth (MHz)100NVP (%)68
Data Transmission1000Base-TXPoE Grade
EnvironmentHarsh EnvironmentsOperating Temperature (°C)-20 to 90
Installation Temp (°C)-20 to 60Max Pull Load (N)100
Min Bend Radius Installation8 × ODMin Bend Radius Installed4 × OD
Conductor Construction7/0.16 ± 0.008Insulation Thickness (mm)0.21
Insulation OD (mm)0.90 ± 0.05Binder MaterialMylar Tape
Shielding MaterialAl/Mylar TapeShielding Overlap25%
Braid MaterialAluminium Magnesium Alloy WireBraid Construction16/8/0.12 ± 0.008
Braid Coverage80%Jacket Thickness (mm)0.65
Insulation Spark Test (20°C)2.50kVConductor Resistance Max (20°C)140 ohm/km
Insulation Resistance100 MΩ·kmStandardISO 11801 Class D / ANSI/TIA-568.D
RoHS ConformityYesCE MarkingYes
Cable LengthCustomPackaging MethodReel
