IP67 Rated
PROFINET Ready

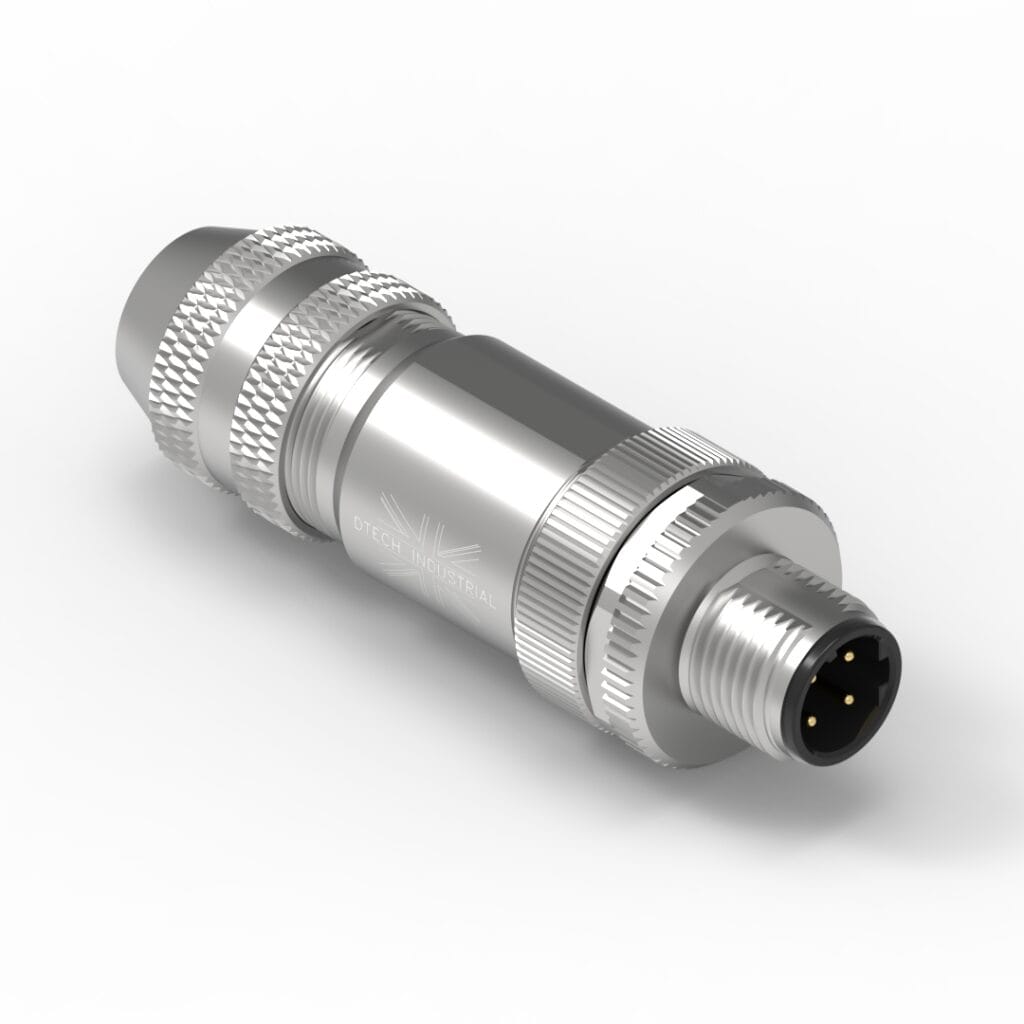

DTECH® M12 Male Metal Plug 4 Pin D-code PG9 (Screw)

DTECH® M12 4-pin D-code male metal plug with screw termination for field-wireable industrial Ethernet. Full metal shielding reduces EMI/RFI for stable signals, while IP67 sealing gives complete dust protection and temporary immersion resistance.

MPN

IND-M12D-MSS

Coding

D-Coded

Termination Type

Screw

Protection Grade

IP67

Mating Durability

≥500

Shell Material

Brass/Zinc alloy nickel plated

Use Cases

PROFINET, Factory Automation, IP67 Environments

KEY FEATURES

High Performance Connectivity

D-CodeProfinet ReadyD-CodeProfinet ReadyRJ45Universal 8P8CRJ45Universal 8P8C4 PinSignal & Power4 PinSignal & PowerProfinetIndustrial NetworkProfinetIndustrial NetworkGold PlatedCorrosion-ProofGold PlatedCorrosion-ProofZinc DiecastRugged ShellZinc DiecastRugged ShellShieldedInterference-FreeShieldedInterference-Free
Available Online
£8.99 / Unit
£10.79 inc. VAT
Total (Ex. VAT)£8.99
Add to Project Enquiry
UK Distribution Centre
Ready for Immediate Dispatch
Order cut-off: 2:30pm
UK Stocked Fully Tracked DTECH® Direct
Available Online
£8.99 / Unit
£10.79 inc. VAT
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS
  • DTECH® M12 4-pin D-Code male metal plug with screw termination, engineered for field-wireable industrial Ethernet connectivity.
  • Full metal outer shielding reduces EMI/RFI interference, ensuring stable and reliable signal transmission.
  • IP67 rated sealing provides complete dust ingress protection and temporary water immersion resistance in harsh industrial and outdoor environments.
  • D-Code 4-pin layout compatible with PROFINET and EtherCAT protocols across IEC 61076-2-101 compliant devices.
  • PG9 cable gland accommodates cable diameters of 6–8mm.
3RD PARTY COMPLIANCE
CE Marked

Conformity Europe.

RoHS Compliant

Compliant Product.

DTECH® Warranty

5 YR Industrial Warranty.

CouplingThreadedRated Voltage250V AC/DC
TerminationScrew lockRated current4A
CodingDContact resistance≤5 mΩ
Pollution degree3Insulation resistance≥100 MΩ
Temperature range-40°C to +80°CShell MaterialBrass/Zinc alloy nickel plated
Protection GradeIP67Contact materialCopper Gold plated
Mating cycles≥500Insert materialPA66+GF UL94 black
Cable outlet diameter6.0 to 8.0mmSealingSilicone/NBR, black
Traverse areaMax 2.0mm²/AWG 14RoHS ConformityYes
CE MarkingYes
Technical Datasheet
Certificate of Conformity
Product Installation Guides
