High Performance Connectivity
Conformity Europe.
Compliant Product.
5 YR Industrial Warranty.

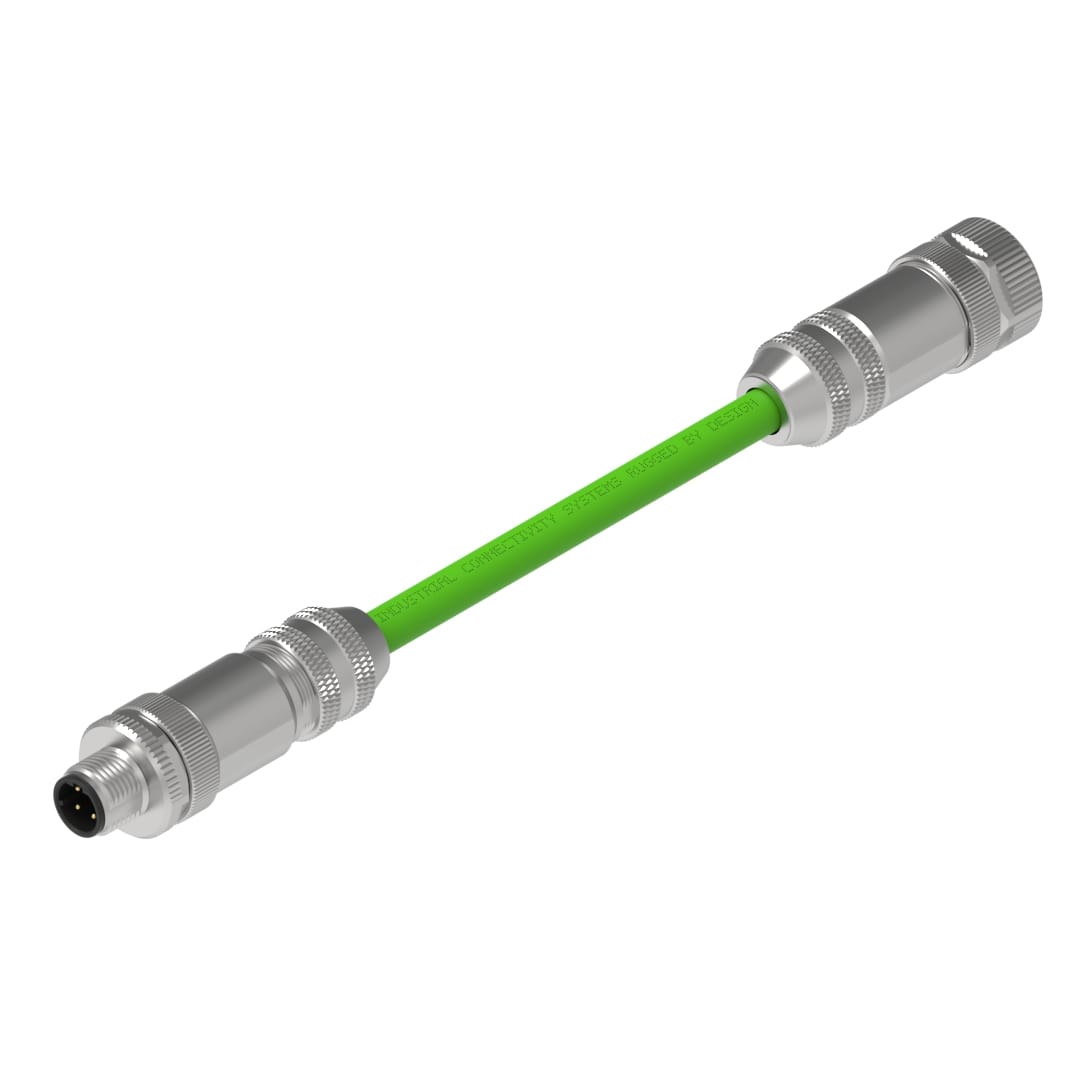

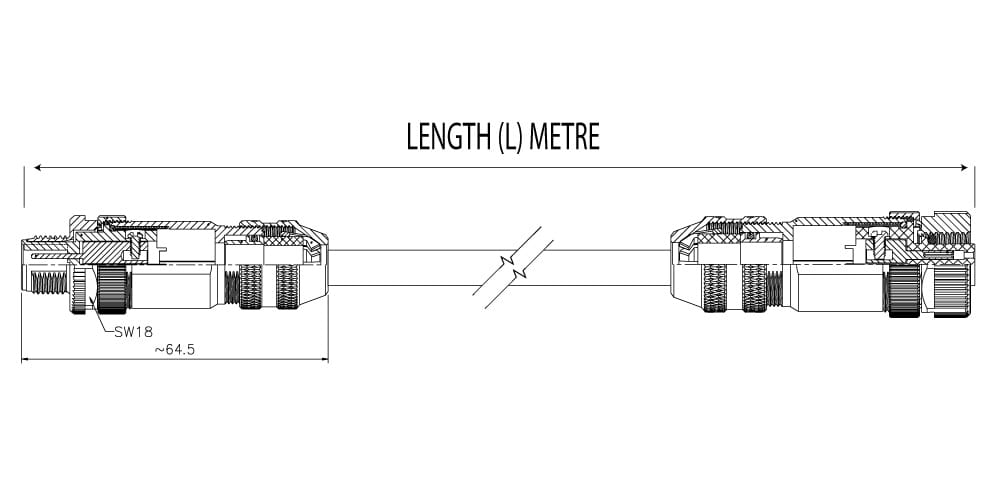

| Connector A | M12 D Code Female Straight | Connector B | M12 D Code Male Straight |
| Coupling | Threaded | Rated Voltage | 250V AC/DC |
| Coding | D | Rated Current | 4A |
| Contact Resistance | ≤10 mΩ | Pollution Degree | 3 |
| Insulation Resistance | ≥100 MΩ | Temperature Range | -40°C to +80°C |
| Shell Material | Brass Nickel Plated | Protection Grade | IP67 |
| Contact Material | Brass Gold Plated | Mating Cycles | ≥500 |
| Insert Material | PA66+GF UL94 Black | Sealing | Rubber |
| Number of Pairs | 2 | Conductor Material | Bare Solid Copper |
| Conductor Size | 0.8mm | Insulation Material | Polyethylene (PE) |
| Screen | Aluminium Foil (100% Coverage) | Jacket Material | LSZH |
| Jacket Colour | Green | Cable Diameter (mm) | 6.8 ± 0.2 |
| Min Bend Radius | 10 × OD | Operating Temperature | -10°C to +70°C |
| Weight | 62 kg/km | Voltage Rating | 450/750V |
| Nominal Conductor Resistance | <38.5 Ω/km | Insulation Resistance | >200 MΩ.M |
| RoHS Conformity | Yes | CE Marking | Yes |
As a member of the HDBaseT® Alliance, DTECH® products comfortably support the latest HDBaseT standards — engineered for next-gen homes and buildings.
Built for residential, commercial and industrial environments, DTECH XG® system architecture guarantees full 10GbE performance from end to end.
