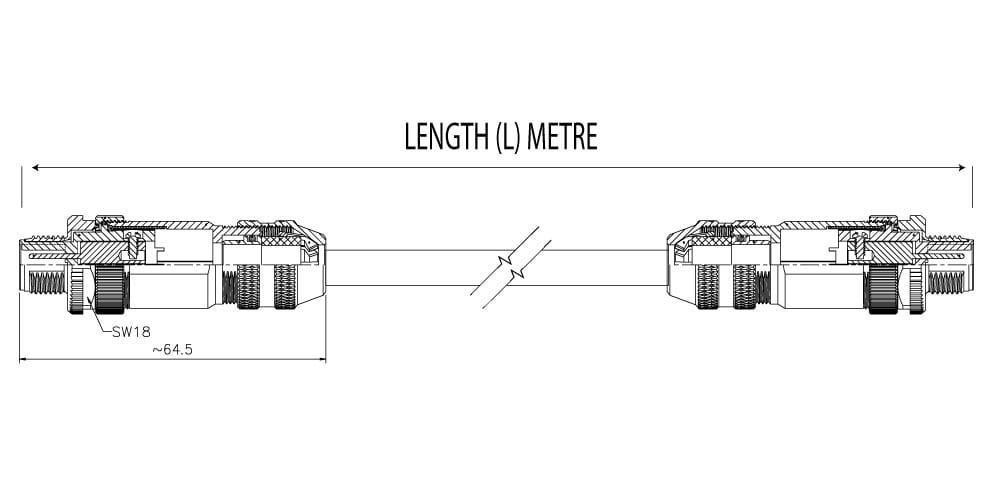

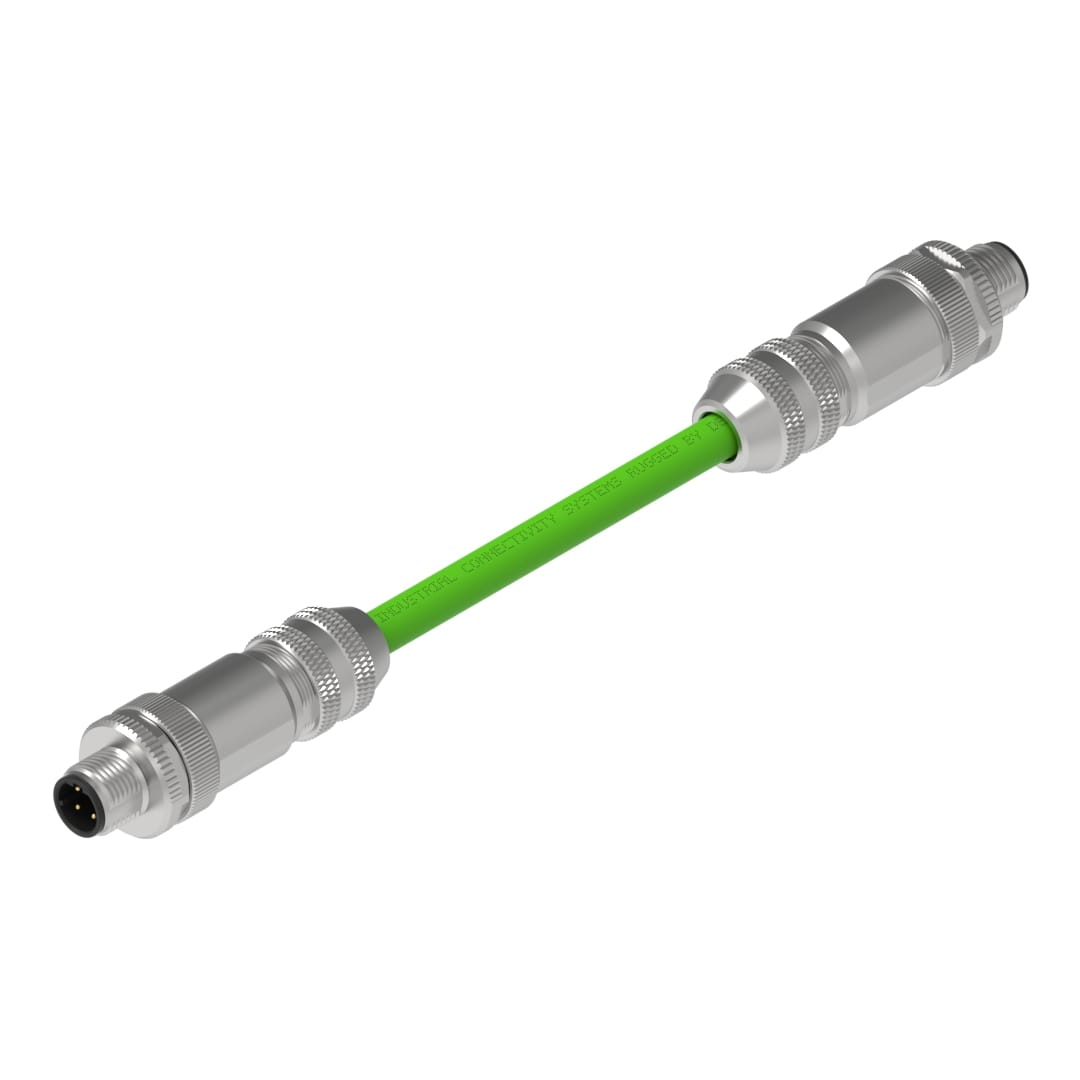

| Connector A | M12 D Code Male Straight | Connector B | M12 D Code Male Straight |
| Coupling | Threaded | Connector Rated Voltage | 250V AC/DC |
| Coding | D | Connector Rated Current | 4A |
| Contact Resistance | ≤10 mΩ | Pollution Degree | 3 |
| Connector Insulation Resistance | ≥100 MΩ | Connector Temperature Range | -40°C to +80°C |
| Shell Material | Brass Nickel Plated | Protection Grade | IP67 |
| Contact Material | Brass Gold Plated | Mating Cycles | ≥500 |
| Insert Material | PA66+GF UL94 Black | Sealing | Rubber |
| Cable Type | Cat5e Industrial Ethernet | Physical Cable Pairs | 4 |
| Terminated Pairs | 2 | Unused Pairs | 2 |
| Conductor Size | 26 AWG | Conductor Material | Bare Stranded Copper |
| Conductor Construction | 7/0.16 ± 0.008 | Cable Core Insulation | HDPE |
| Cable Shielding | SF/UTP | Foil Screen | Aluminium/Mylar Tape |
| Overall Braid | Aluminium Magnesium Alloy Wire | Braid Coverage | 80% |
| Jacket Material | Industrial PVC (Oil, Notch and Abrasion Resistant) | Jacket Colour | Green |
| Cable Diameter (mm) | 6.3 ± 0.20 | Cable Bandwidth (MHz) | 100 |
| Cable Min Bend Radius (Installation) | 8 × OD | Cable Min Bend Radius (Installed) | 4 × OD |
| Cable Operating Temperature | -20°C to +90°C | Cable Installation Temperature | -20°C to +60°C |
| Cable Conductor Resistance Max (20°C) | 140 Ω/km | Cable Insulation Resistance | 100 MΩ·km |
| RoHS Conformity | Yes | CE Marking | Yes |
