High Performance Connectivity
Conformity Europe.
Compliant Product.
Rated Product.
5 YR Industrial Warranty.
| Transfer Rate | 10GBase-T | Connections (Network / Terminal) | 1 |
| Connector Type | Industrial RJ45 | Connector Layout | 8 Pin |
| Connector Plating | 50µ Gold | Termination Type | IDC tool-free |
| FastConnect | Yes | Enclosure Material | Zinc Alloy |
| IDC Reusability | 10 times | Coupling Mechanism | Twist Lock |

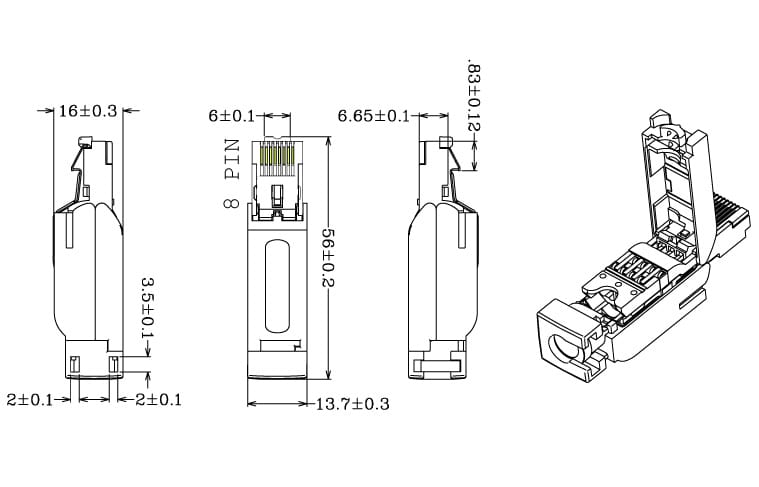

| Cable Outlet | 180° cable outlet | Width | 13.7mm |
| Height | 16mm | Depth | 55mm |
| Net Weight | 35g | Max Cable OD | 8mm |
| Conductor Cross-Section | 0.21 to 0.33mm² (22-24 AWG) | Operating Temperature | -40°C to +85°C |
| Relative Humidity | 95% (at 25°C, no condensation) | Protection Grade | IP20 |
| PoE | PoE++ | Silicon-Free | Yes |
| Strain Relief | Yes | Structured Cabling Standard | Cat 6a |
| RoHS Conformity | Yes | CE Marking | Yes |
As a member of the HDBaseT® Alliance, DTECH® products comfortably support the latest HDBaseT standards — engineered for next-gen homes and buildings.
Built for residential, commercial and industrial environments, DTECH XG® system architecture guarantees full 10GbE performance from end to end.
