High Performance Connectivity
Conformity Europe.
Compliant Product.
Rated Product.
30 YR System Warranty.
| Connector Type | RJ45 8P8C | Shielding | Yes |
| Termination Type | IDC Punchdown | Wiring Specification | T568A / T568B |
| Tool-Free | Yes | Insertion Method | Clip-In |
| Contact Compatibility | 22 to 24AWG (0.45mm – 0.65mm) | Cable OD | 5.0mm to 8.5mm |
| RJ45 Contact Material | Phosphor Bronze, 50µ Gold Plated | IDC Material | Phosphor Bronze Tin Plated |
| Module Material | Zinc Alloy | Mating Durability | 750 Times Min |
| Contact Resistance | 20 MΩ MAX | Insulation Resistance | 500 MΩ MIN @ 500V DC |
| Current Rating | 1.5A | PoE | PoE++ |

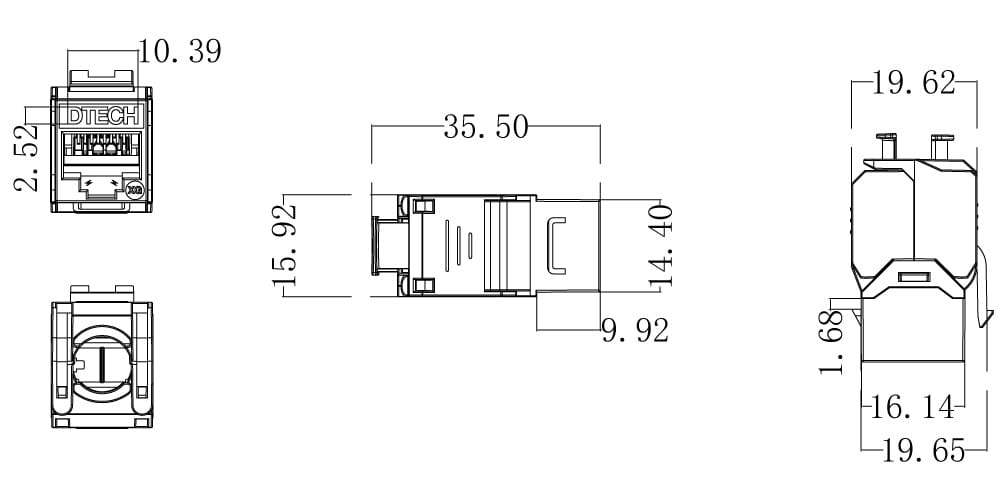

| Operating Temperature | -10°C to +60°C | Length | 35.50mm |
| Width | 15.92mm | Height | 19.62mm |
| Standard | ISO 11801 Class EA | RoHS Conformity | Yes |
| CE Marking | Yes |
As a member of the HDBaseT® Alliance, DTECH® products comfortably support the latest HDBaseT standards — engineered for next-gen homes and buildings.
Built for residential, commercial and industrial environments, DTECH XG® system architecture guarantees full 10GbE performance from end to end.
