Tight Buffered
Bend Insensitive

DTECH® OM4 50/125 2 Fibre Duplex Tight Buffered Fibre Optic Zip Cable LSZH Violet

DTECH® OM4 50/125µm 2-fibre duplex tight-buffered multimode zip cable for high-density installations. Bend-insensitive OM4 fibre supports 10G, 40G and 100G Ethernet across data centre and enterprise networks, finished in a low-smoke LSZH jacket.

MPN

OM4-DX-2MM

Fibre Type

Bend Insensitive Multimode Fibre (BIMMF)

Jacket Material

LSZH (Low Smoke Zero Halogen)

Cable Diameter

2.0mm

Wavelength

850/1300nm

Use Cases

Data Centre, Campus Backbone, 10G+ Links

KEY FEATURES

High Performance Connectivity

OM410G to 550mOM410G to 550mDuplexSend & ReceiveDuplexSend & ReceiveLSZHSafer in FireLSZHSafer in FireInternalIndoor RatedInternalIndoor Rated
Available Online
£1.08 / Length
£1.30 inc. VAT
Price:
Total (Ex. VAT)£1.08
Add to Project Enquiry
UK Distribution Centre
Ready for Immediate Dispatch
Order cut-off: 2:30pm
UK Stocked Fully Tracked DTECH® Direct
Available Online
£1.08 / Length
£1.30 inc. VAT
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS

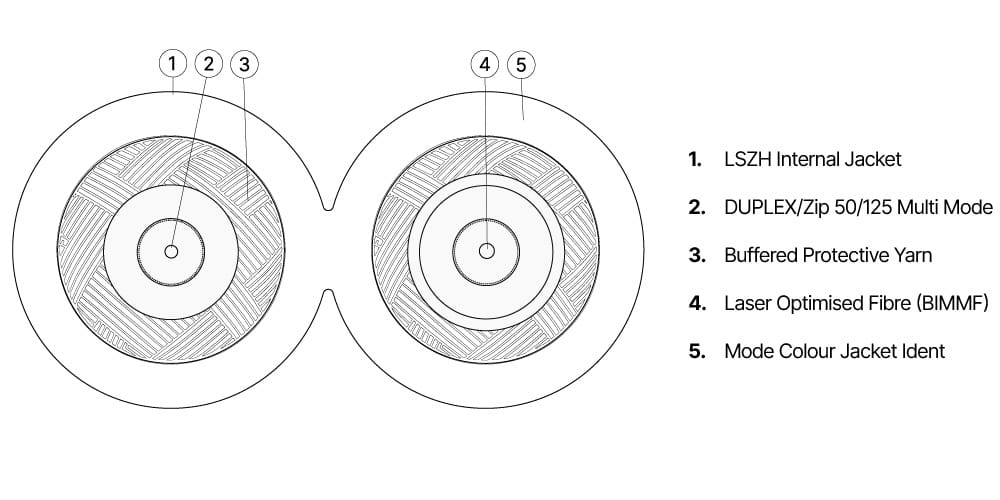

  • DTECH® OM4 50/125µm tight buffered multimode fibre optic zip cable designed for high-density installations.
  • Supports 10G, 40G and 100G Ethernet applications, delivering high-bandwidth performance for data centre and enterprise networks.
  • Bend insensitive OM4 fibre provides improved routing flexibility while maintaining low attenuation and stable signal performance.
  • LSZH (Low Smoke Zero Halogen) outer sheath minimises toxic fumes.
  • 2 Fibre duplex zip construction allows for on site custom patch lead creation.
  • Aramid yarn strength members provide additional tensile strength and protection.
3RD PARTY COMPLIANCE
CE Marked

Conformity Europe.

RoHS Compliant

Compliant Product.

DTECH® Warranty

30 YR System Warranty.

Fibre Count2 Fibre (Duplex)Fibre GradeBend Insensitive Multimode Fibre (BIMMF)
Fibre ModeOM4 (50/125µm)Wavelength850/1300nm
Jacket MaterialLSZHCable Diameter2.00mm
Cable TypeTight BufferedMin Bend Radius Installation20 × OD
Min Bend Radius Installed10 × ODInsertion Loss≤0.3dB
Return Loss≥30dBAttenuation at 850nm3.5dB/km
Attenuation at 1300nm1.5dB/kmOperating Temperature-10 to 70°C
ColourVioletRoHS ConformityYes
CE MarkingYes
Technical Datasheet
Certificate of Conformity
Product Installation Guides
HDBASET SVG LOGO
Alliance Member

As a member of the HDBaseT® Alliance, DTECH® products comfortably support the latest HDBaseT standards — engineered for next-gen homes and buildings.

System Architecture

Built for residential, commercial and industrial environments, DTECH XG® system architecture guarantees full 10GbE performance from end to end.
