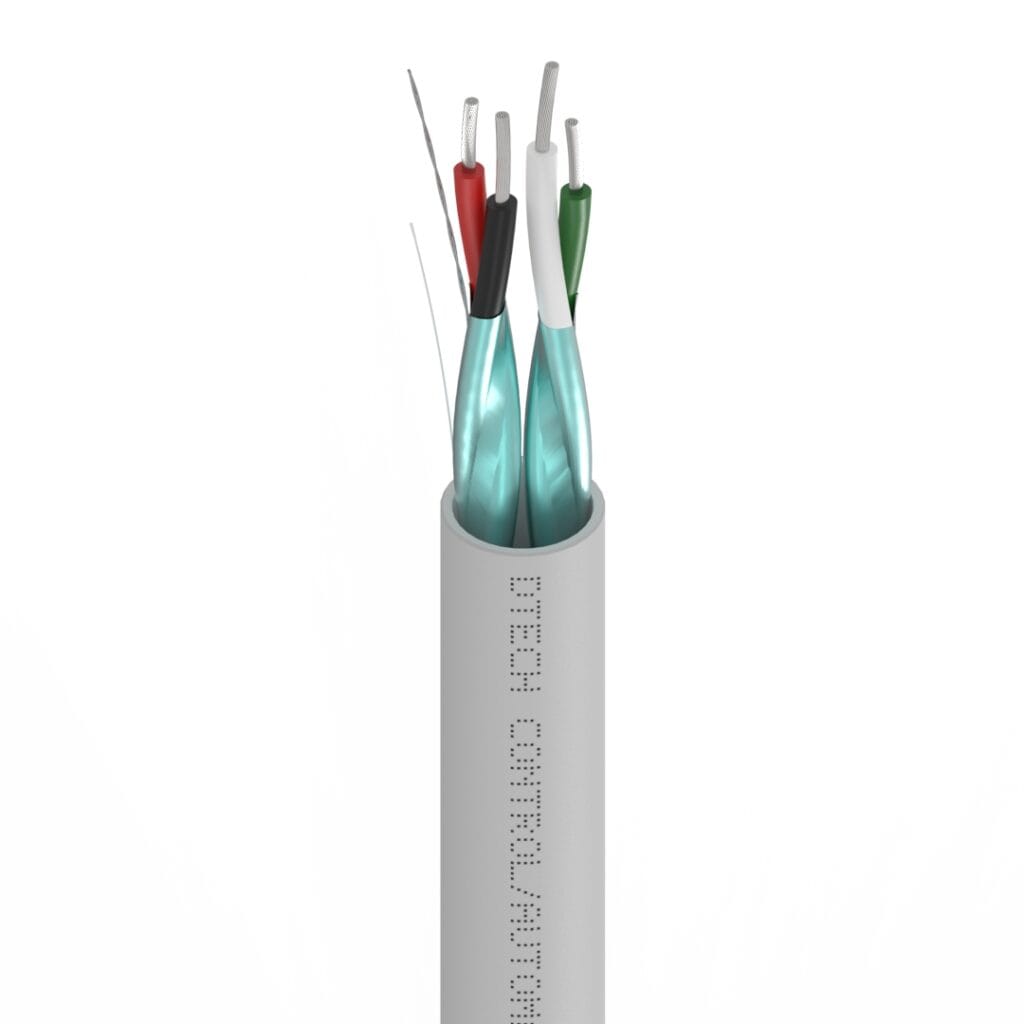

DTECH® 8723 2 Pair Control Cable 22AWG (Belden Alt) LSZH Grey 100M

DTECH® 8723 two-pair 22AWG control cable with stranded tinned copper conductors and an LSZH jacket. A Belden alternative for signal, audio and instrument wiring in offices, public spaces and commercial buildings.

MPN

8723-ZH-GR

Construction

2 Pair

Jacket Material

LSZH (Low Smoke Zero Halogen)

Euroclass

Eca

Environment

Internal

Use Cases

Signal & Control, Instrumentation, Commercial Fit-Out

KEY FEATURES

High Performance Connectivity

ControlMulti-Pair ControlControlMulti-Pair ControlOEMTrusted EquivalentOEMTrusted EquivalentLSZHSafer in FireLSZHSafer in FireShieldedInterference-FreeShieldedInterference-FreeInternalIndoor RatedInternalIndoor Rated
Available Online
£49.75 / 100m Reel
£59.70 inc. VAT
Total (Ex. VAT)£49.75
Add to Project Enquiry
UK Distribution Centre
Ready for Immediate Dispatch
Order cut-off: 2:30pm
UK Stocked Fully Tracked DTECH® Direct
Available Online
£49.75 / 100m Reel
£59.70 inc. VAT
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS
  • DTECH® 8723 2-pair 22AWG LSZH control cable designed for reliable signal, audio and instrument wiring.
  • Low Smoke Zero Halogen (LSZH) sheath significantly reduces toxic gas and smoke emission in the event of fire, making it ideal for use in public spaces, offices and commercial buildings.
  • 22AWG stranded tinned copper conductors provide increased current carrying capacity, making it well suited for longer cable runs and demanding low-voltage applications.
  • Individually foil shielded pairs with drain wire deliver superior EMI and crosstalk pretection between pairs, ensuring clean and stable signal transmission in electrically noisy environments.
  • Well suited for line level audio, low voltage analogue signals, RS-232, RS-485, AMX and other control system wiring, as well as alarm signalling, access control and building automation applications.
3RD PARTY COMPLIANCE
CE Marked

Conformity Europe.

RoHS Compliant

Compliant Product.

DTECH® Warranty

30 YR System Warranty.

CPR Eca

Euroclass 50575.

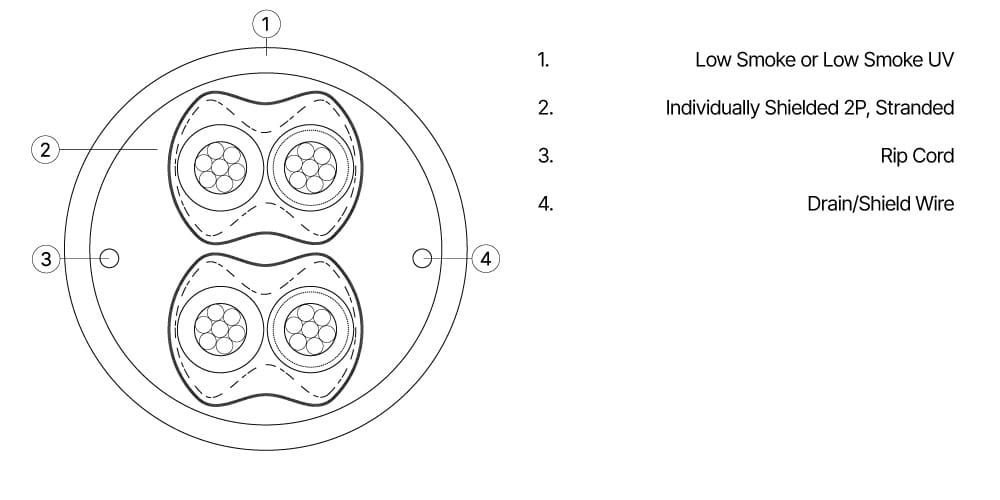

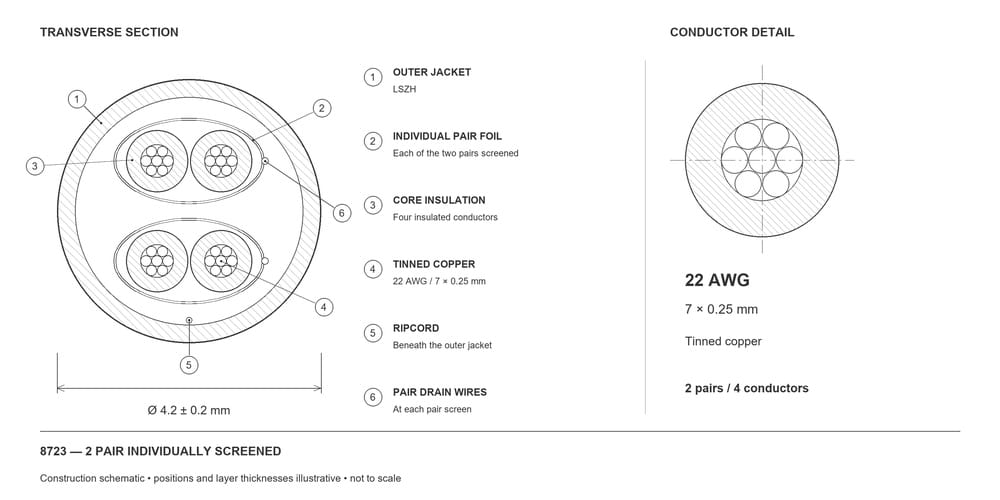

Number of Pairs2Conductor MaterialTinned Copper
Conductor Size22AWG (7/0.25mm)ScreenAluminium Foil, Each Pair (100% Coverage)
Jacket MaterialLSZHJacket ColourGrey
EnvironmentInternalCable Diameter (mm)4.2 ± 0.2
Min Bend Radius10 × ODOperating Temperature-20°C to +70°C
Weight32 kg/kmVoltage Rating450/750V
Nominal Conductor Resistance<60.2 Ω/kmInsulation Resistance>200 MΩ.M
Capacitance Core to Core108 pF/m ± 30Capacitance Core to Screen203 pF/m ± 50
RoHS ConformityYesCE MarkingYes
Technical Datasheet
Certificate of Conformity
Product Installation Guides
