10G Ready
Shielded

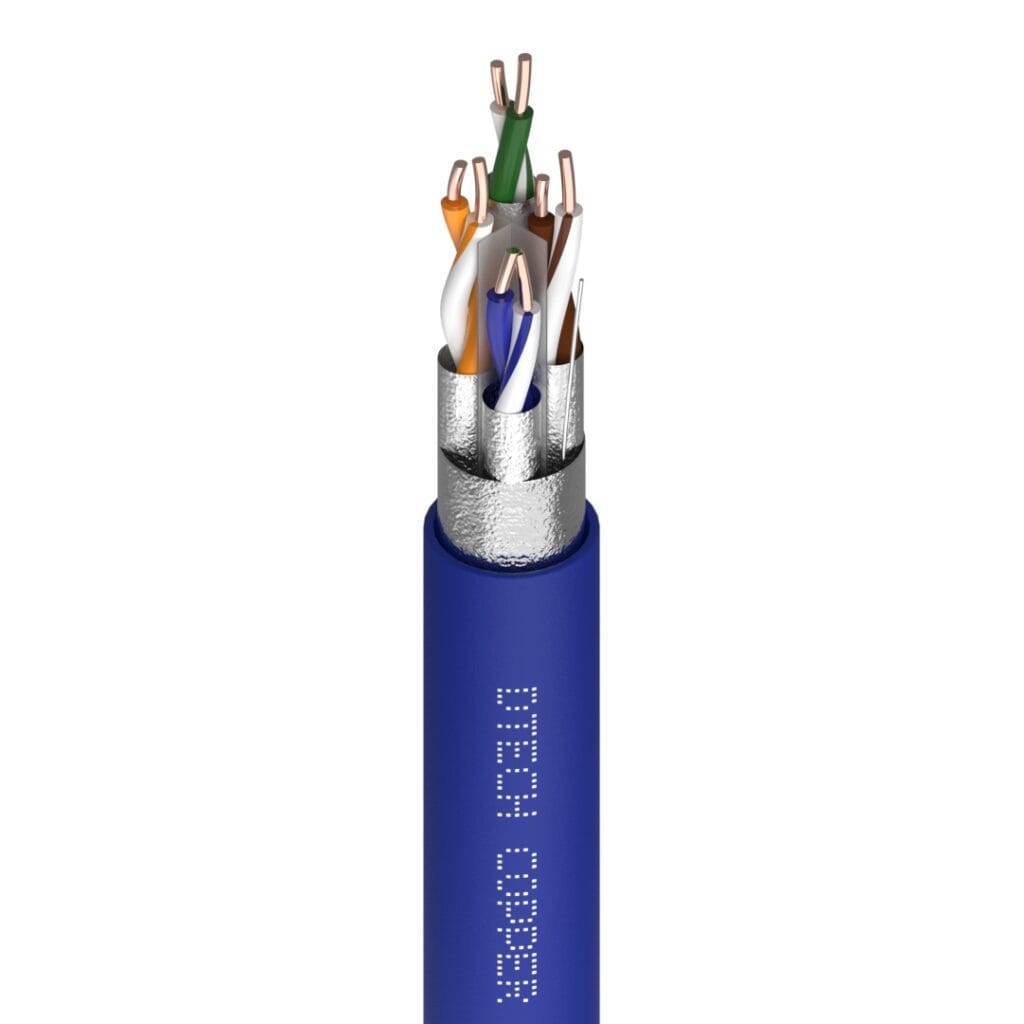

DTECH® Cat 6a 23AWG F/FTP 650MHz HDBaseT AV-Ready LSZH Blue 305M

DTECH® Cat 6a 650MHz F/FTP fully shielded cable with overall foil and individually screened pairs for maximum EMI protection. Supports 10GBase-T up to 90m and PoE++, HDBaseT and AV-ready with a low-smoke LSZH jacket.

MPN

C6A-FFTP-ZH-NBL

Category

6a

Shielding

F/FTP

Jacket Material

LSZH (Low Smoke Zero Halogen)

Euroclass

Dca, s2, d2, a2

Environment

Internal

Use Cases

AV Distribution, Performance Networks, SDU & MDU

KEY FEATURES

High Performance Connectivity

10GBASE-T10x Gigabit10GBASE-T10x GigabitHDBaseTApprovedHDBaseTApprovedPoE++Power & DataPoE++Power & DataShieldedInterference-FreeShieldedInterference-Free650MHzExtended Bandwidth650MHzExtended Bandwidth99.99% OFCPure Copper99.99% OFCPure Copper
Enquire
Contact Sales
Available for direct enquiry. Speak to our team for current supply, project pricing or a scheduled delivery.
Enquire Add to Project Enquiry
Contact Sales
Enquire
Contact Sales
  • SSL Gateway
  • Aliiance Member
  • Warrantied Systems
EXTENDED PRODUCT SPECIFICATIONS

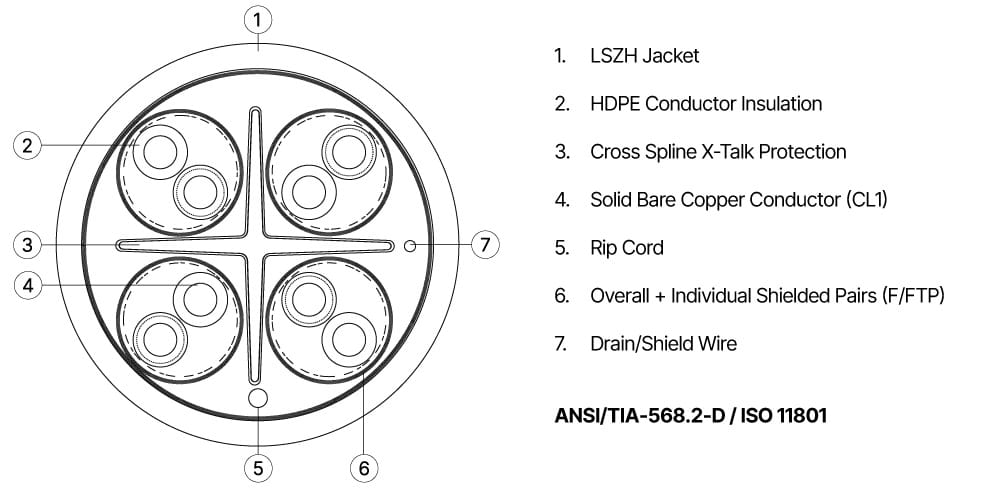

  • High-performance DTECH® Cat 6a 650 MHz F/FTP fully shielded data cable, engineered with an overall foil and individually screened pairs to maximise EMI protection, reduce crosstalk, and ensure superior signal integrity.
  • Supports full 10GBase-T Ethernet speeds up to 90 metres, ensuring fast and reliable data transmission.
  • Compatible with PoE++ technology, allowing for power delivery alongside data for efficient device operation.
  • Low Smoke Zero Halogen (LSZH) construction minimizes harmful emissions, making it safer for indoor environments.
  • AV-Ready cables recommended by HDBase-T, perfect for high-definition audio and video applications.
  • 3rd party certified by EC, guaranteeing compliance with industry standards for quality and performance.
  • Designed for Data centres and other critical infrastructure deployment.
3RD PARTY COMPLIANCE
HDBaseT

HDBaseT Recommended.

EC Verified

3P Approved.

ISO/IEC Class EA

Rated Product.

DTECH® Warranty

30 YR System Warranty.

CPR Dca

Euroclass 50575.

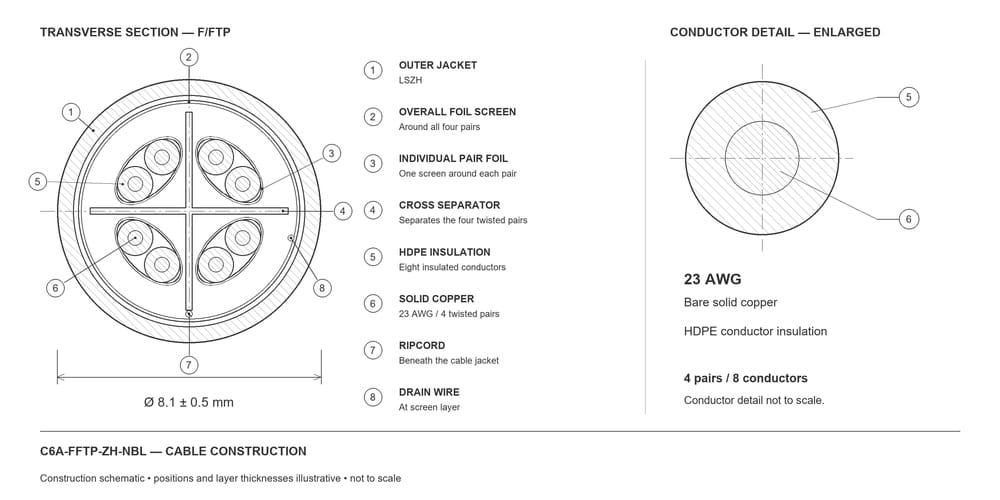

Category6aShielding TypeF/FTP
Jacket MaterialLSZHCore InsulationHDPE
Conductor MaterialPure Bare Solid CopperWire Gauge23AWG
Number of Conductors4 PairsCable Outer Diameter (mm)8.1 ± 0.5
Rated Bandwidth (MHz)650NVP (%)69
Data Transmission10GBase-T up to 90MPoE GradeType 4 (PoE++): Classes 7–8, delivering up to 90.0 W
EnvironmentInternalOperating Temperature (°C)-20 to 75
Installation Temp (°C)-20 to 60Max Pull Load (N)100
Min Bend Radius Installation8 × ODMin Bend Radius Installed4 × OD
StandardISO/IEC 11801, ANSI/TIA-568.2-DVerificationHDBaseT, GHMT
Reaction to Fire (EN 13501-6)DcaSmoke Development (EN 13501-6)s2
Flaming Droplets (EN 13501-6)d2Acidity (EN 13501-6)a2
RoHS ConformityYesCE MarkingYes
Cable Length1000ft (305m)Packaging MethodPull Box
Technical Datasheet
Certificate of Conformity
Product Installation Guides
HDBASET SVG LOGO
Alliance Member

As a member of the HDBaseT® Alliance, DTECH® products comfortably support the latest HDBaseT standards — engineered for next-gen homes and buildings.

System Architecture

Built for residential, commercial and industrial environments, DTECH XG® system architecture guarantees full 10GbE performance from end to end.
