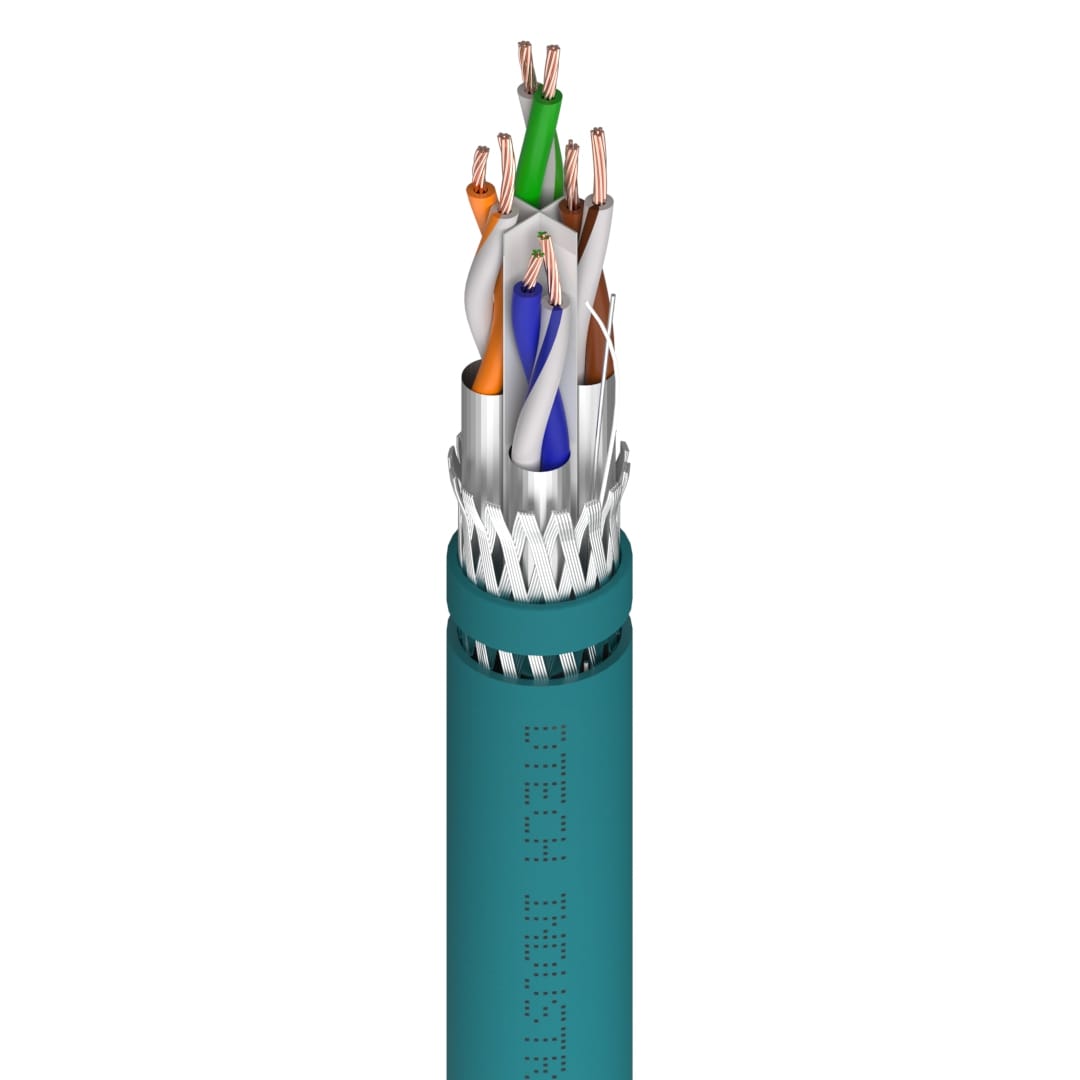

DTECH® Cat 6 S/FTP OFC Marine Grade PUR Teal

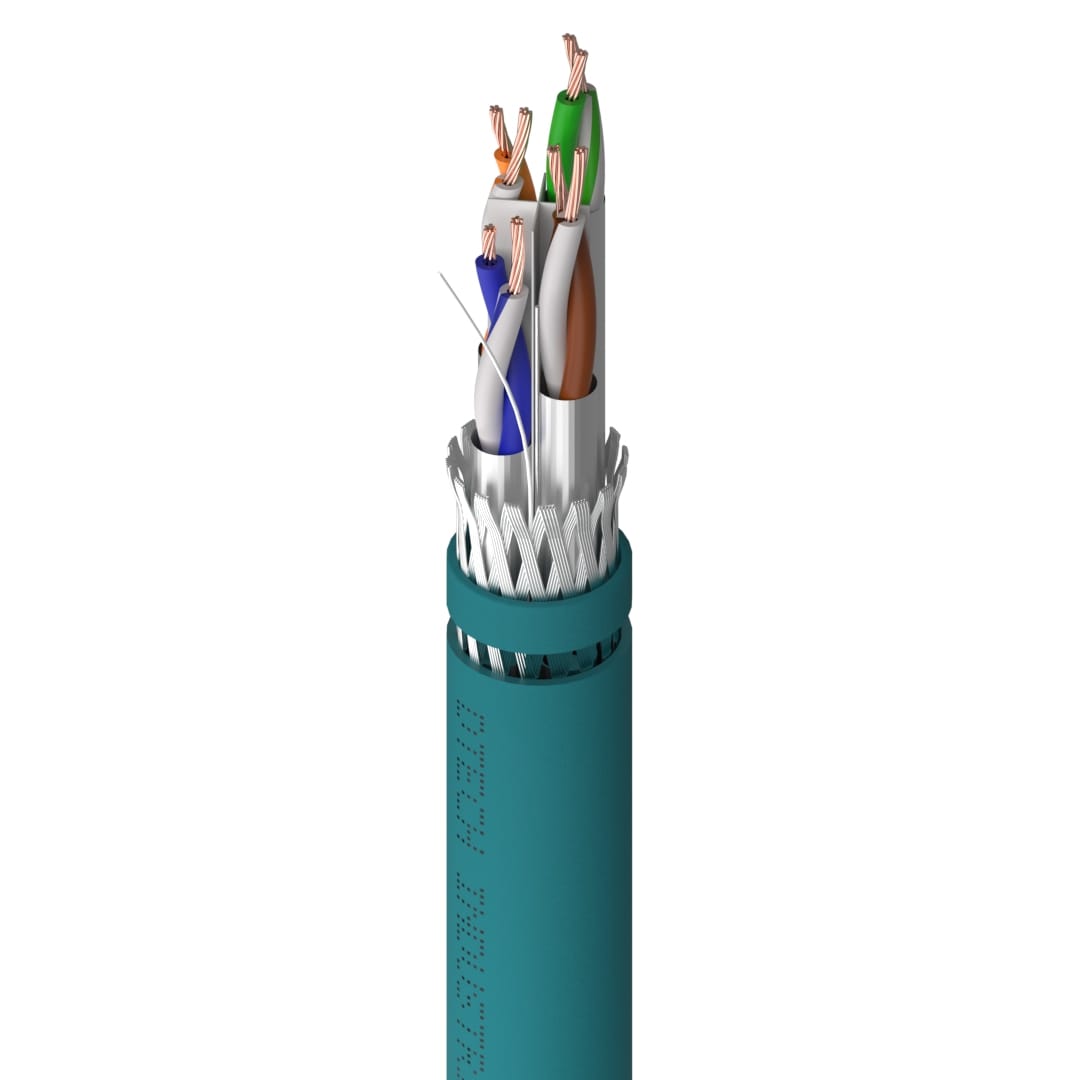

DTECH® Cat 6 S/FTP OFC Marine Grade PUR Teal - Image 2

DTECH® Cat 6 S/FTP OFC Marine Grade PUR Teal

MPN IND-C6MRN-PUR-SF-TL Categories , Features , Brand:
Request Quote

Fast UK Delivery

Free delivery on orders available

Secure Checkout

SSL protected gateway

>30YR Warranty

Performance guaranteed

  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® Cat 6 S/FTP marine grade industrial bulk cable designed for reliable Ethernet in demanding marine, factory floor and machine building installations.
  • S/FTP construction combines an overall braided screen with individually aluminium foiled pairs for exceptional EMI protection in electrically noisy industrial environments.
  • Highly flexible stranded OFC copper with internal cross separator protects individual pairs under continuous mechanical stress.
  • Oil, notch, and abrasion resistant PUR jacket conforming to EN 50363-10-2 and IEC 60811-2-1 provides superior flexibility and durability for demanding factory floor and machine building deployments.
  • Marine grade construction provides superior crush resistance and exceptional resistance to salt spray and moisture ingress, suitable for exposed deck, coastal and offshore environments where water splash and spray are present.
  • Supports data transmission speeds of up to 1 Gbps at 250MHz in compliance with ISO/IEC 11801 Class E.
  • Well suited for cable chain and semi moving applications, EtherCAT, EtherNet/IP, PROFINET and general-purpose industrial Ethernet deployments.
Technical Product Information
Number of Pairs4Conductor MaterialBare Stranded Copper
Conductor Construction7/0.20 ± 0.008Insulation MaterialFoamed PE
Insulation Thickness (mm)0.25Insulation OD (mm)1.32 ± 0.05
Binder MaterialMylar TapeShieldingS/FTP
Shielding MaterialAl/Mylar TapeShielding Overlap25%
Braid MaterialAluminum Magnesium Alloy WireBraid Construction16/8/0.12 ± 0.008
Braid Coverage65%Jacket MaterialPUR
Jacket Thickness (mm)0.80Jacket OD (mm)8.0 ± 0.3
Spark Test for Insulation (DC)2.50kVConductor Resistance Max at 20°C87.6 ohm/km
Insulation Resistance100 MΩ·kmData Transmission1000Base-T @250MHz
StandardsISO 11801 Class E / ANSI/TIA-568.DBending Radius4 / 8 x Diameter (Fixed / Flexing)
Operating Temperature-20°C to +90°CRoHS ConformityYes
CE MarkingYes
