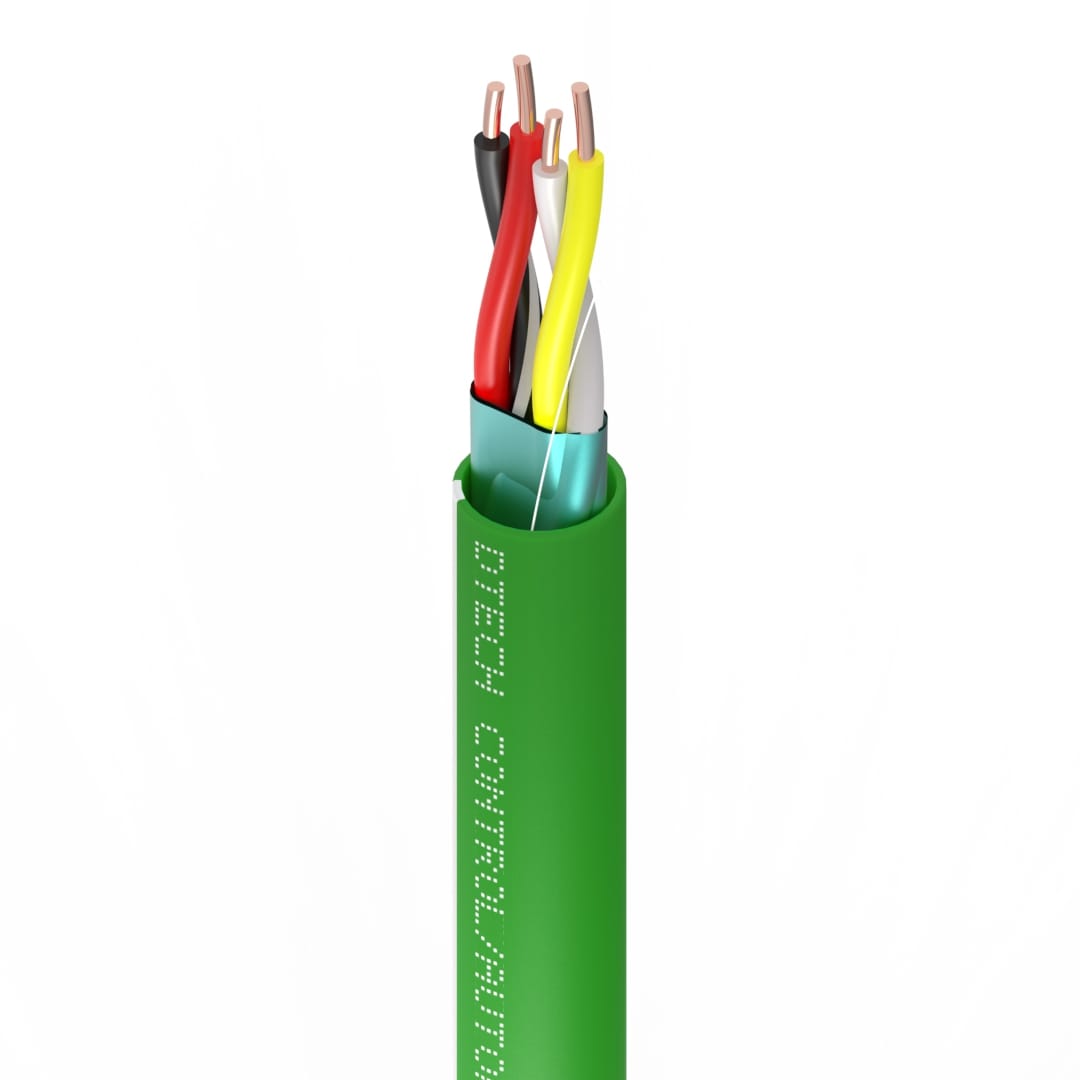

DTECH® KNX/EIB Quad Cable 2x2x0.8mm² LSZH Green White

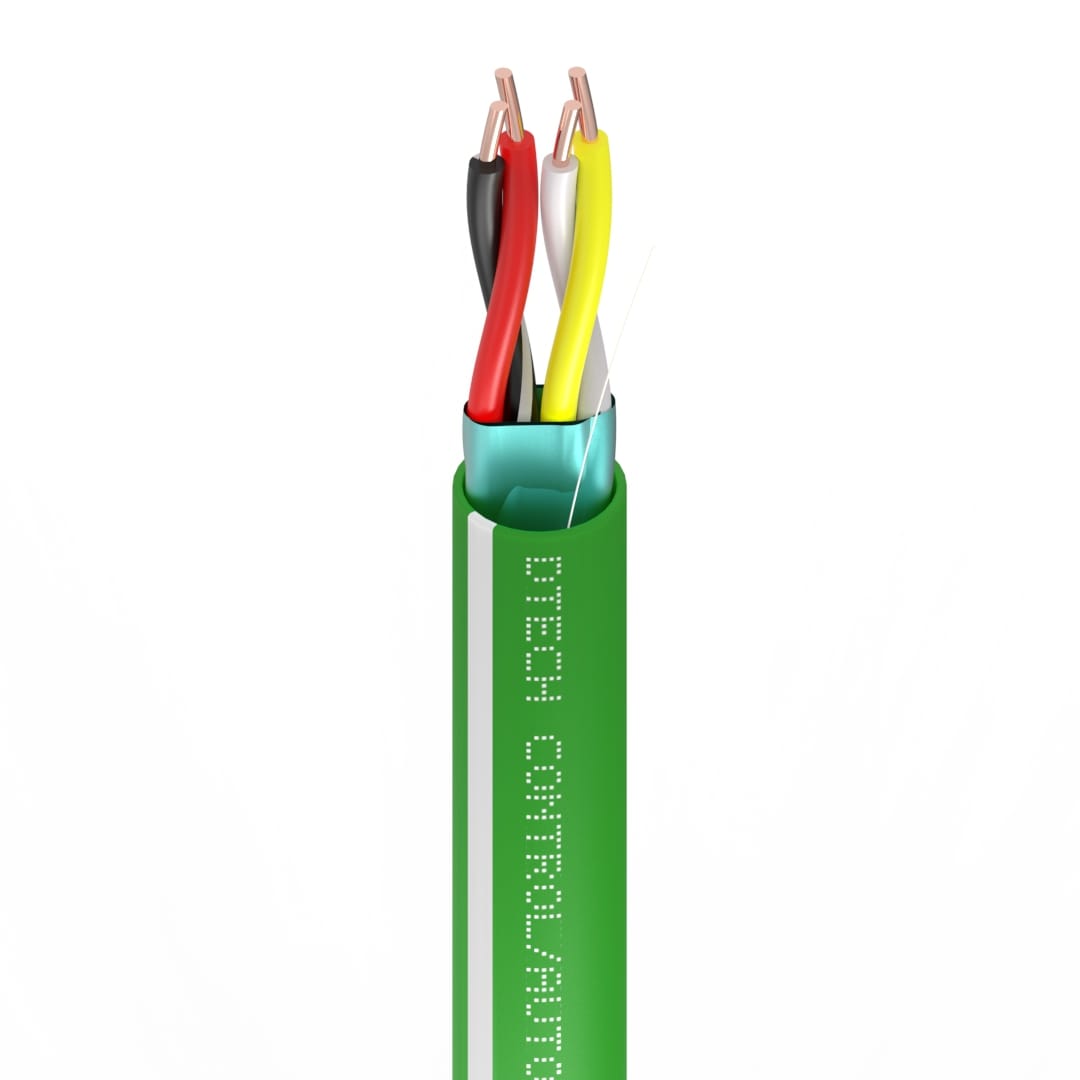

DTECH® KNX/EIB Quad Cable 2x2x0.8mm² LSZH Green White - Image 2

DTECH® KNX/EIB Quad Cable 2x2x0.8mm² LSZH Green White

MPN 2PR-EIB-ZH Category Features , Brand:
  • Fast UK Delivery
  • Secure Checkout
  • Warrantied Product Systems
  • Certificate of Conformance
  • Data Sheet
Product Overview
  • DTECH® KNX/EIB quad cable with 2x2x0.8mm² construction engineered for smart building automation, lighting control, HVAC, and building management system (BMS) deployments.
  • Smart Building Ready design supports KNX TP (Twisted Pair) topology including daisy-chain, star, tree, and bus configurations as per KNX protocol specifications.
  • Green/white stripe colour coding provides clear identification and complies with KNX/EIB installation standards for polarity and cable management.
  • Low Smoke Zero Halogen (LSZH) jacket minimises toxic and corrosive gas emissions in the event of fire, meeting building regulation requirements for public buildings, schools, and commercial premises.
  • Directly compatible with KNX-certified push-button, dimmer, blind controller, and sensor devices for complete smart building automation system deployment.
Technical Product Information
Number of Pairs2Conductor MaterialBare Solid Copper
Conductor Size0.8mmInsulation MaterialPolyethylene (PE)
ScreenAluminium Foil (100% Coverage)Jacket MaterialLSZH
Jacket ColourGreenCable Diameter (mm)6.8 ± 0.2
Min Bend Radius10 x ODOperating Temperature-10°C to +70°C
Weight62 kg/kmVoltage Rating450/750V
Nominal Conductor Resistance<38.5 Ω/kmInsulation Resistance>200 MΩ.M
RoHS ConformityYesCE MarkingYes
